Stansbury Park Observatory Complex 2 (SPOC 2)
Harmons Observatory
Exterior Work
17 OCT 2001 to 25 FEB 2002
(click on images for enlarged view)

Up Back Next

001

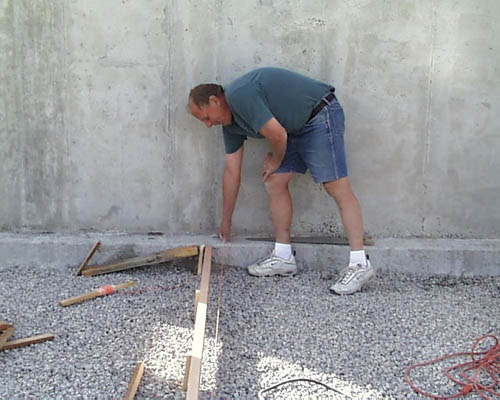

Andy Bogdan uses "string theory" to be sure the patio forms are straight.  17 OCT 2001

002

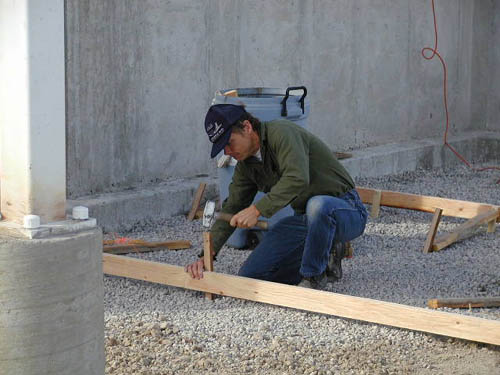

Patrick Wiggins pounds a stake to hold a portion of the patio forms in place.  17 OCT 2001  Ron Ford image

003

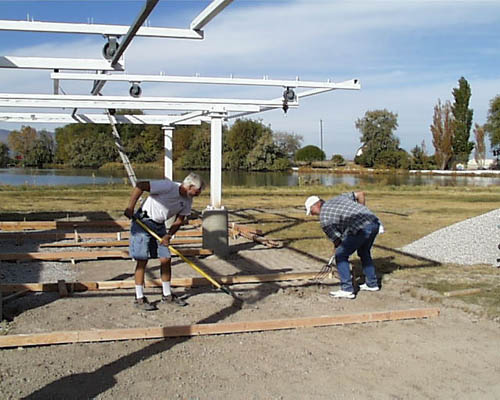

"Farmer Bruce" and "Farmer Ron" prepare the ground for the gravel.  17 OCT 2001

004

Patio forms ready for the gravel.  17 OCT 2001  Ron Ford image

005

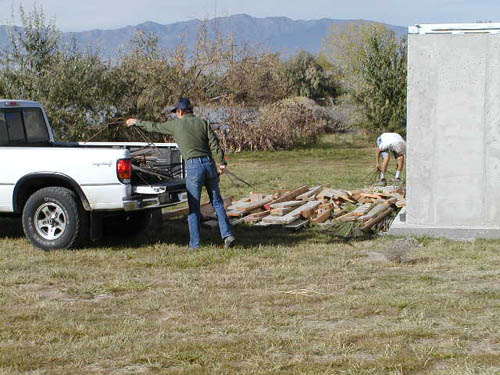

Patrick Wiggins and Bruce Grim show that no day's work is done before the cleanup is done.  17 OCT 2001  Ron Ford image

006

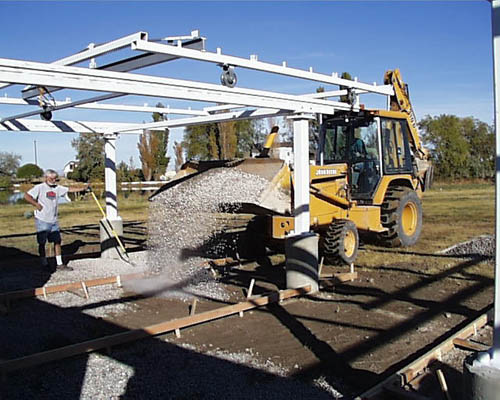

Bruce Grim watches to be sure the gravel is poured properly.  18 OCT 2001

007

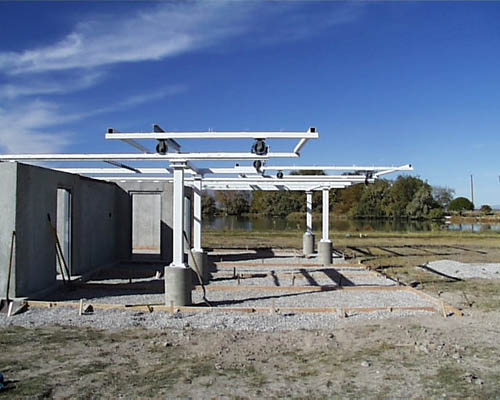

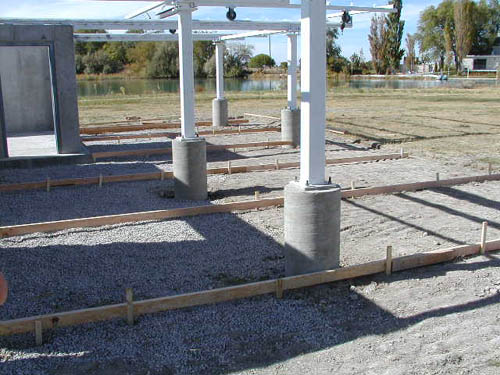

Forms and gravel ready for the concrete pour.  18 OCT 2001

008

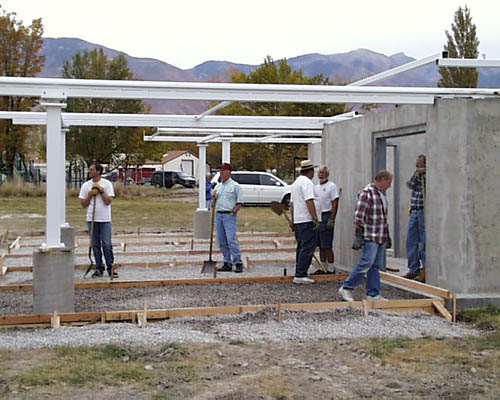

Rob Robinson, Hank Williams, Siegfried Jachmann, Bruce Grim, Andy Bogdan and Steve Fisher waiting for the concrete truck to arrive.  22 OCT 2001

009

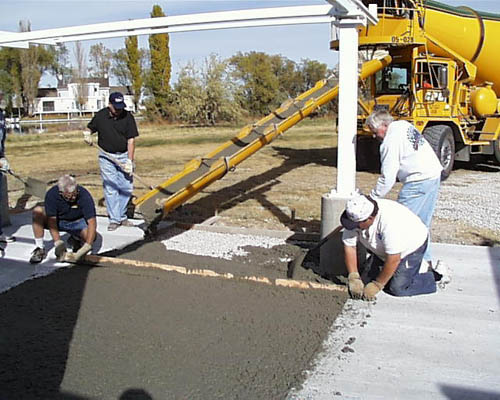

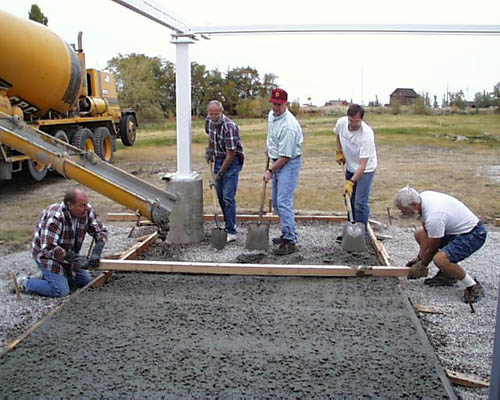

Rob Robinson, Hank Williams, Siegfried Jachmann and Steve Fisher work the first part of the patio pour.  22 OCT 2001

010

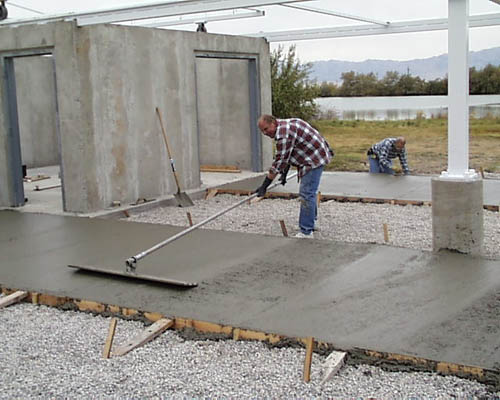

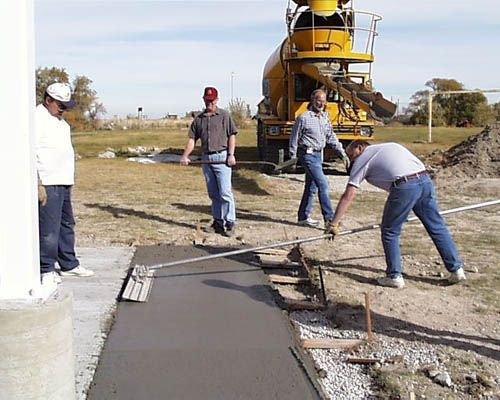

Andy Bogdan and Bruce Grim run the scree board as Ron Ford, Hank Williams and Rob Robinson push the concrete into place.  22 OCT 2001

011

Steve Fisher cuts a line in the concrete.  22 OCT 2001

012

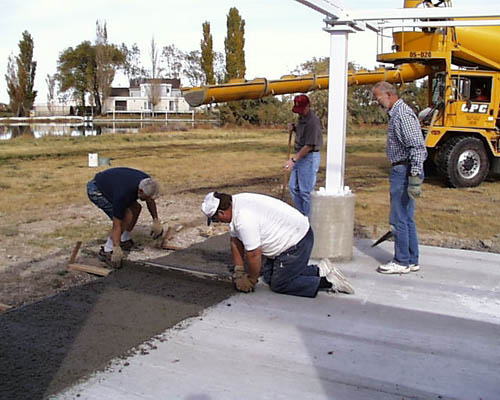

Andy Bogdan and Steve Fisher put the finishing touches on the first half of the patio pour.  22 OCT 2001

013

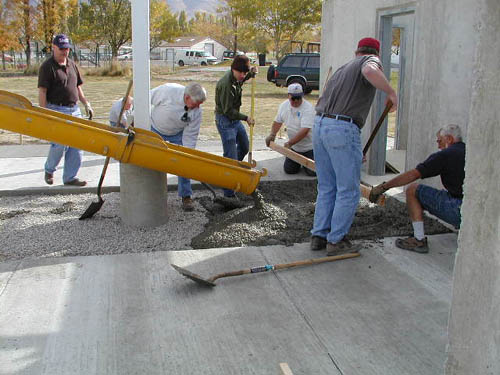

Siegfried Jachmann and Bruce Grim run the skree board as Boyd McNeil, Patrick Wiggins and Hank Williams man shovels and Larry Frisk runs for a shovel of his own .  25 OCT 2001  Ron Ford image

014

Siegfried Jachmann, Patrick Wiggins and Bruce Grim are relieved to pay for the final load of concrete.  25 OCT 2001  Ron Ford image

015

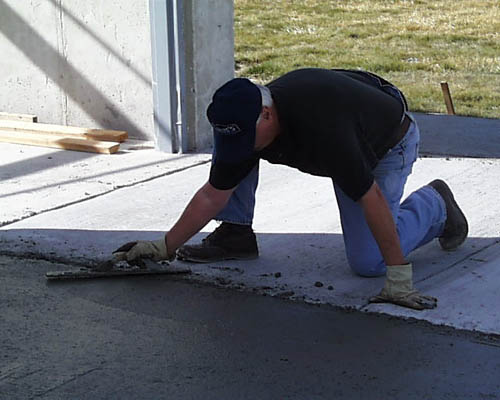

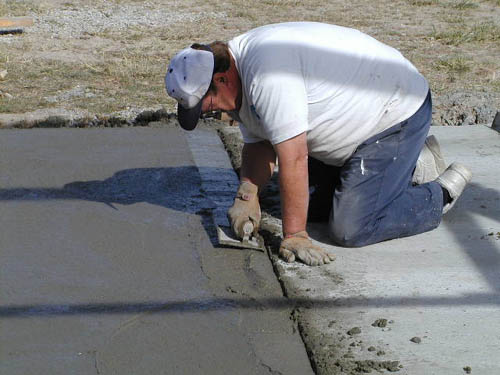

Siegfried Jachmann edges the patio.  25 OCT 2001  Ron Ford image

016

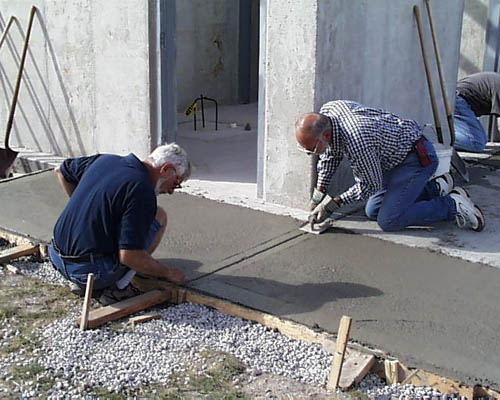

Hank Williams passes the tool to Patrick Wiggins as they etch a pressure relief gap in the concrete.  25 OCT 2001  Ron Ford image

017

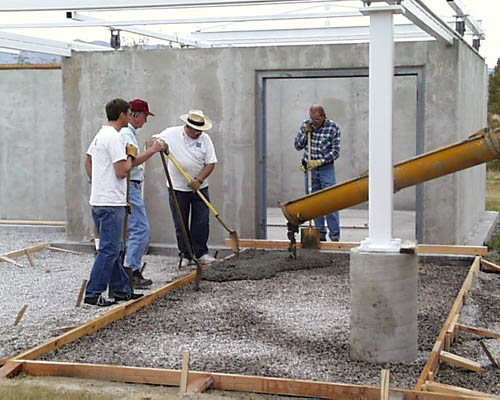

Hank Williams uses a shovel to direct the first part of the final concrete pour.  25 OCT 2001

018

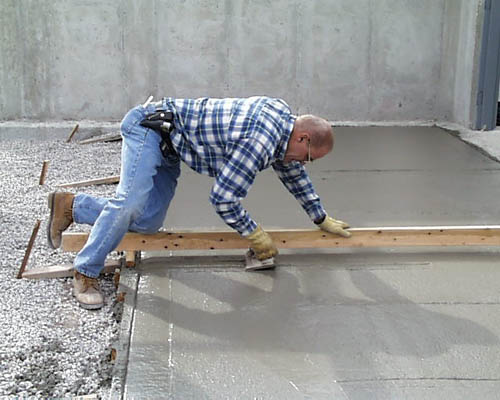

Siegfried Jachmann makes sure Andy Bogdan works the concrete correctly.  25 OCT 2001

019

Bruce Grim and Siegfried Jachmann run the skree board as Larry Frisk and Boyd McNeil use shovels to keep the concrete in the right place.  25 OCT 2001

020

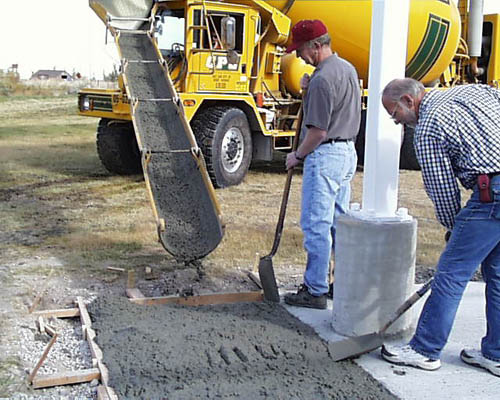

Ron Ford and Hank Williams watch as the last of the final pour is dumped near their waiting shovels.  25 OCT 2001

021

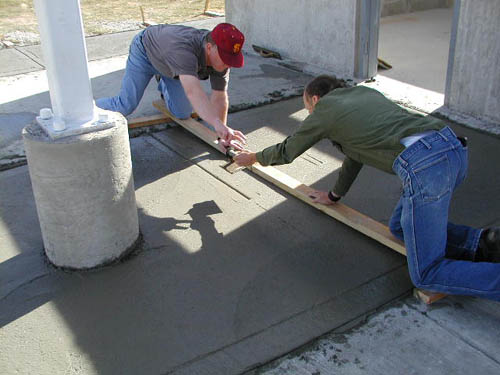

Bruce Grim and Siegfried Jachmann skree the final section of the patio.  25 OCT 2001

022

Bruce Grim and Ron Ford etch a pressure relief gap in the concrete.  25 OCT 2001

023

Larry Frisk touches up a portion of the patio.  25 OCT 2001

024

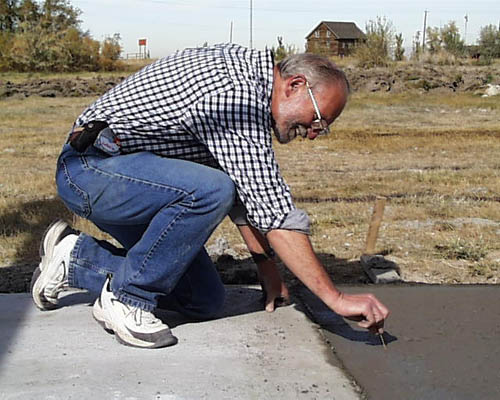

Ron Ford jokes around by using a tooth pick to do some final finishing work.  25 OCT 2001

025

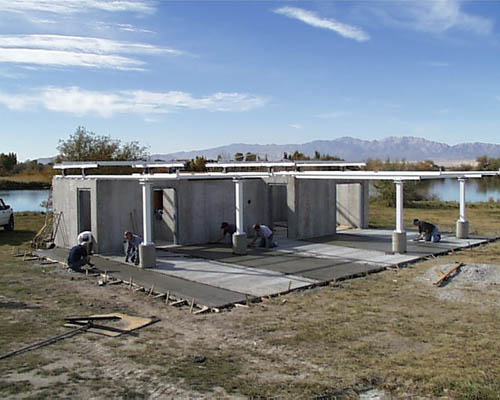

The crew doing some final touch up work as the work day ends.  25 OCT 2001

026

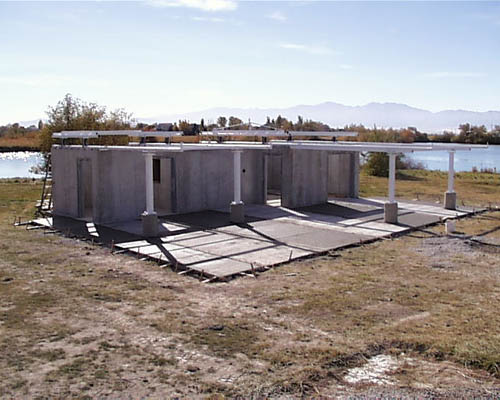

Only the forms remain to be removed.  25 OCT 2001

027

Forms removed.  30 OCT 2001  Ron Ford image

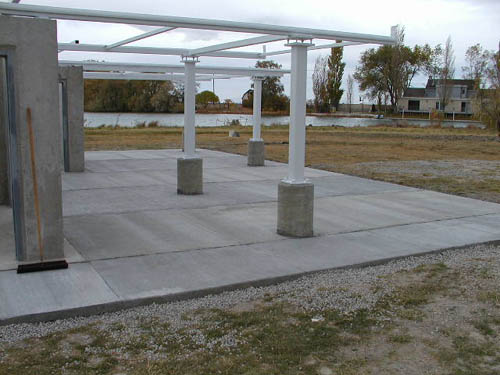

028

And patio swept clean.  30 OCT 2001  Ron Ford image

029

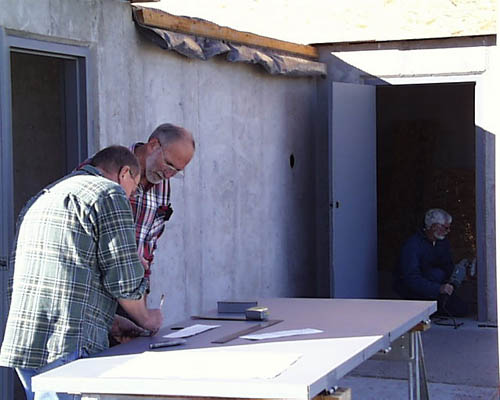

Andy Bogdan and Ron Ford decide how to install the door locks and crash bars.  15 NOV 2001

030

Ken Harris and Patrick Wiggins install a crash bar.  15 NOV 2001

031

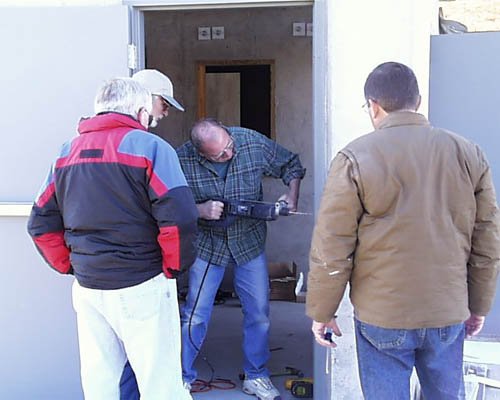

Bruce Grim and Ken Harris look on as Andy Bogdan drills a hole of the door lock.  15 NOV 2001

032

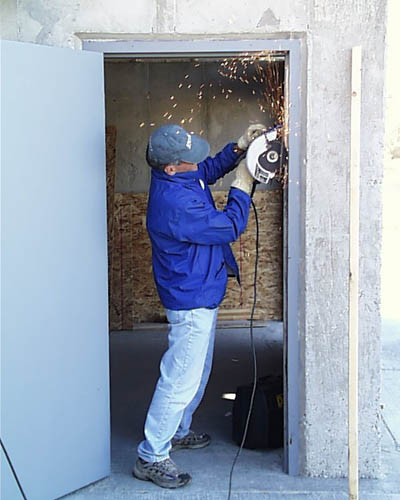

The concrete caused the door frame to bend so the frame had to be "adjusted" with a grinder.  15 NOV 2001

033

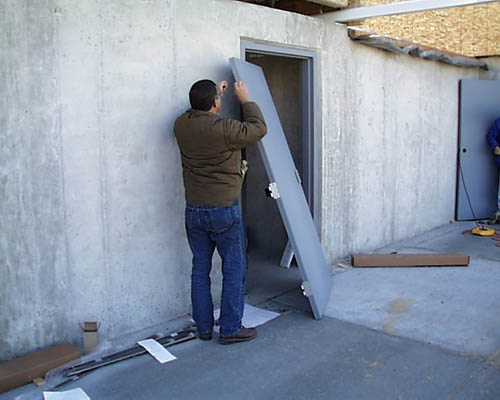

Ken Harris switches the hinges after finding the crash bar had been installed on the wrong side...  15 NOV 2001

034

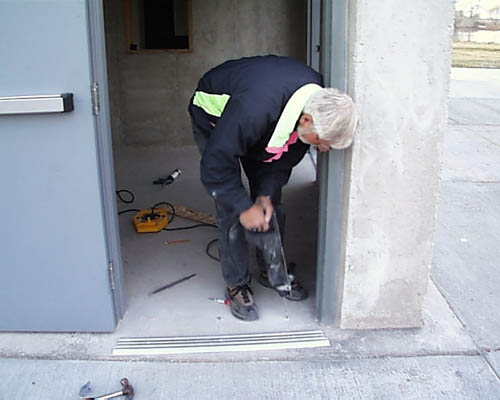

Bruce Grim drills a hole in the concrete floor for one of the thresholds.  17 NOV 2001

035

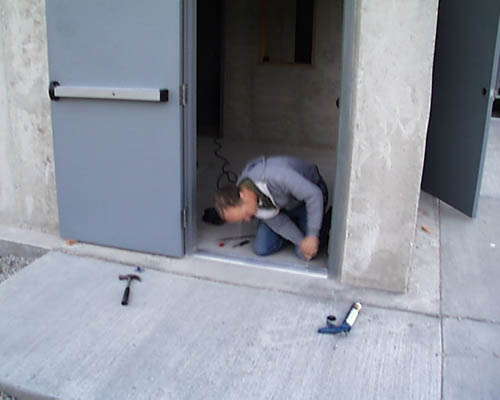

Patrick Wiggins attaches the final threshold (now all he needs is someone to carry across it).  17 NOV 2001

036

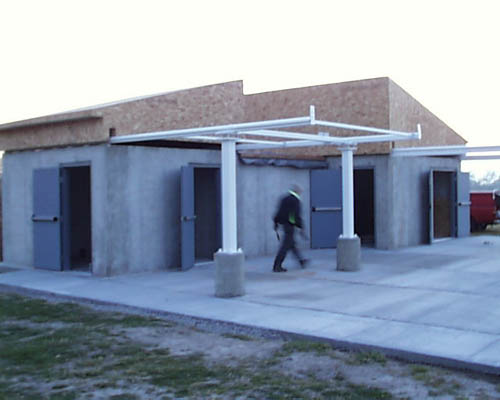

Bruce Grim noting that all doors, thresholds, crash bars and door handles are installed.  17 NOV 2001

037

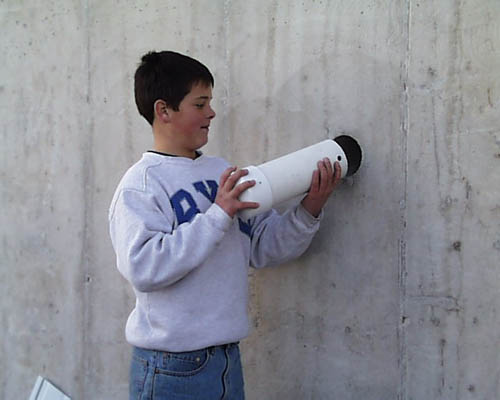

Robin Butz installs the newly fabricated (by Bruce Grim) security cap on the south "Henchy Hole". 13 JAN 2002

Ground heaving cracked a number of the slab sections necessitating their removal and reinstallation.

038

Before the slab sections could be cut Bruce Grim, Roger Butz, Andy Bogdan and Patrick Wiggins remove the snow and ice.  22 FEB 2002  Ron Ford image

039-044
******

******
Ron Ford, Andy Bogdan, Bruce Grim, Patrick Wiggins Boyd McNeil and Roger Butz take their turns running the concrete cutting saw. 22 FEB 2002

045

Roger Butz and Ron Ford try a bit of "curling on concrete".  22 FEB 2002

046

Roger Butz takes advantage of Patrick Wiggins being a vegetarian.  22 FEB 2002  Ron Ford image

047

With the cuts finished Andy Bogdan and Roger Butz use pry bars to lift a section of concrete.  22 FEB 2002

048

Stansbury Park Service Agency's Colton Park uses the back hoe to remove the buckled pieces of concrete.  25 FEB 2002  Ron Ford image
