Stansbury Park Observatory Complex 2 (SPOC 2)
Harmons Observatory
The 81 cm (32") "Big Scope"
12 NOV 2000 to 05 FEB 2002
(click on images for enlarged view)

Up Back Next

001

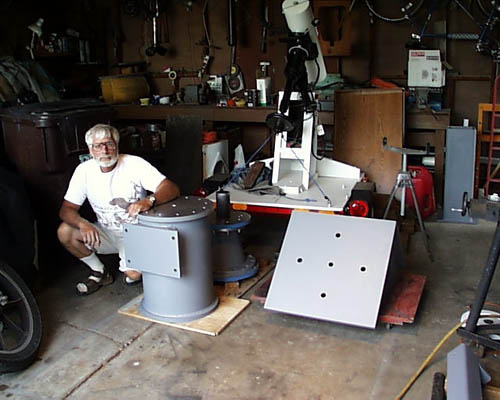

SLAS member Bruce Grim built this 1/3 scale (and fully functional) model of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  Note the doll which, to scale, is the size of a large child. 12 NOV 2000
SLAS member Bruce Grim built this 1/3 scale (and fully functional) model of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  Note the doll which, to scale, is the size of a large child. 12 NOV 2000

002

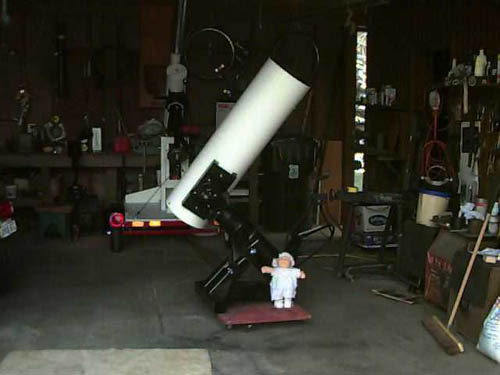

Looking over the 1/3 scale model of the 81 cm (32") scope.  18 NOV 2000
Looking over the 1/3 scale model of the 81 cm (32") scope.  18 NOV 2000

003
Bruce Grim and Siegfried Jachmann with the 1/3 scale model. 18 NOV 2000
Bruce Grim and Siegfried Jachmann with the 1/3 scale model. 18 NOV 2000

004
SLAS member Siegfried Jachmann poses next to the 1/3 scale model of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  Note the position of the eyepiece.  As the telescope utilizes a Springfield mount the eyepiece remains in the same place regardless of where the telescope is pointed. 27 NOV 2000
SLAS member Siegfried Jachmann poses next to the 1/3 scale model of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  Note the position of the eyepiece.  As the telescope utilizes a Springfield mount the eyepiece remains in the same place regardless of where the telescope is pointed. 27 NOV 2000

005

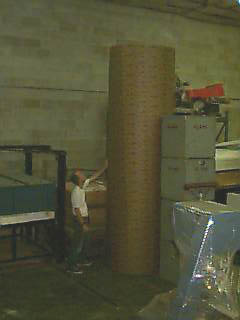

SLAS member Bruce Grim inside the tube of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  22 DEC 2000
SLAS member Bruce Grim inside the tube of the 81 cm (32") telescope to be installed in the Harmons Observatory at SPOC 2.  22 DEC 2000

006
Bruce stands next to the new tube.  22 DEC 2000
Bruce stands next to the new tube.  22 DEC 2000

007
Vaughn Parsons of Intermountain Optics and Bruce Grim beside the new tube.  22 DEC 2000
Vaughn Parsons of Intermountain Optics and Bruce Grim beside the new tube.  22 DEC 2000

008

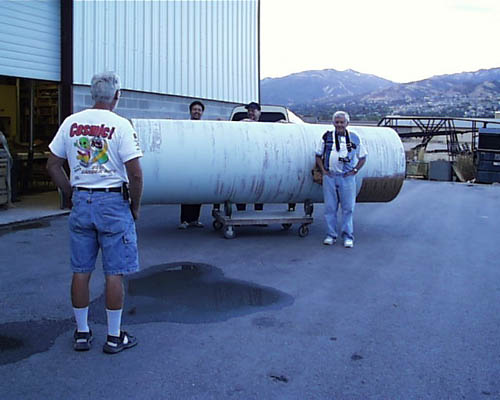

SLAS member Patrick Wiggins is dwarfed by the new tube. Patrick arrived to take this image shortly after Bruce Grim and Siegfried Jachmann delivered the tube which was donated by Caraustar in Salt Lake City.  22 DEC 2000
SLAS member Patrick Wiggins is dwarfed by the new tube. Patrick arrived to take this image shortly after Bruce Grim and Siegfried Jachmann delivered the tube which was donated by Caraustar in Salt Lake City.  22 DEC 2000

009

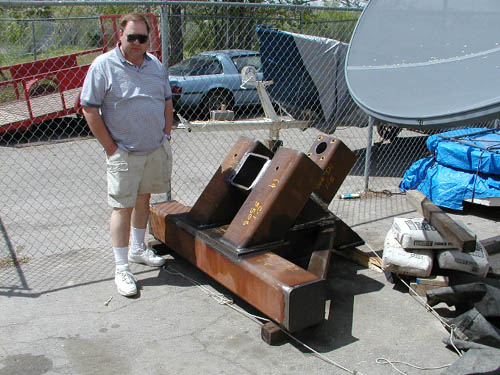

Part of the mount for 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image.
Part of the mount for 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image.

010
Siegfried Jachmann stands next to part of the mount for the 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image
Siegfried Jachmann stands next to part of the mount for the 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image

011

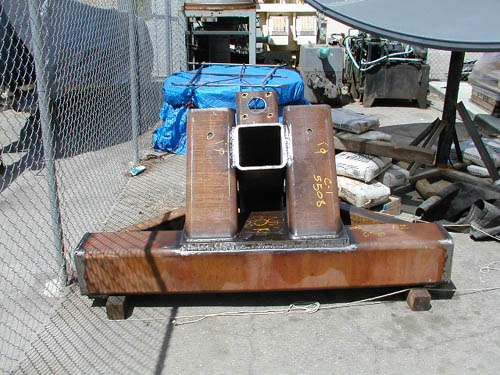

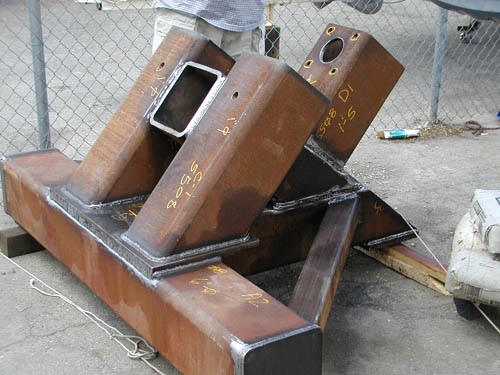

Part of the mount for the 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image
Part of the mount for the 81 cm (32") telescope at Intermountain Optics.  28 APR 2001  Ron Ford image

012
Bruce Grim beside the RA and Dec assemblies for the 81 cm (32") telescope.  28 MAY 2001
Bruce Grim beside the RA and Dec assemblies for the 81 cm (32") telescope.  28 MAY 2001

013
Part of the mount for the 81 cm (32") telescope being delivered to Bruce Grim's workshop.  05 JUN 2001. Image by Boyd McNeil.
Part of the mount for the 81 cm (32") telescope being delivered to Bruce Grim's workshop.  05 JUN 2001. Image by Boyd McNeil.

014

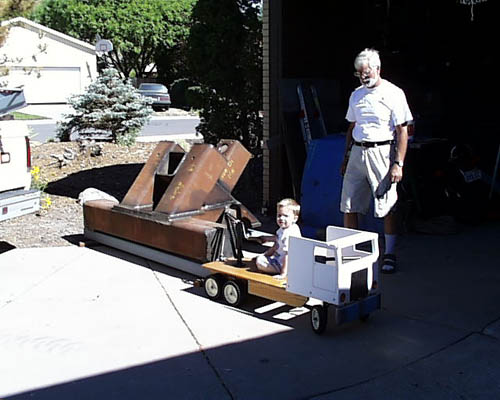

Bruce Grim & grandson reposition the base of the 81 cm (32") telescope.  07 JUN 2001
Bruce Grim & grandson reposition the base of the 81 cm (32") telescope.  07 JUN 2001

015

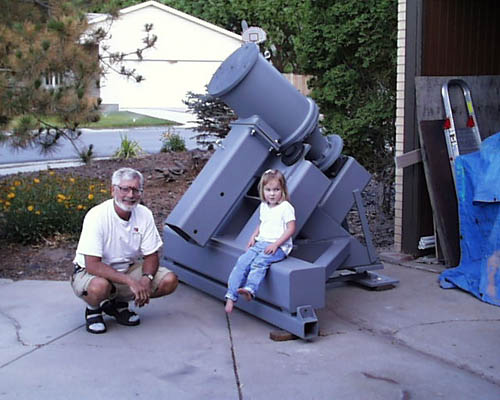

Bruce Grim & granddaughter with the base of the 81 cm (32") telescope.  26 JUN 2001
Bruce Grim & granddaughter with the base of the 81 cm (32") telescope.  26 JUN 2001.

016
Patrick Wiggins & Roger Butz secure the mount as Andy Bogdan, Ken Harris and Bruce Grim look on.  09 AUG 2001  McNeil photo
Patrick Wiggins & Roger Butz secure the mount as Andy Bogdan, Ken Harris and Bruce Grim look on.  09 AUG 2001  McNeil photo

017

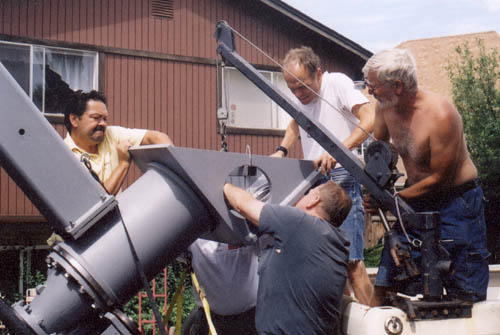

Roger Butz, Ken Harris (hidden) Andy Bogdan, Patrick Wiggins & Bruce Grim use a crane to install another part on the mount.  09 AUG 2001  McNeil photo
Roger Butz, Ken Harris (hidden) Andy Bogdan, Patrick Wiggins & Bruce Grim use a crane to install another part on the mount.  09 AUG 2001  McNeil photo

018

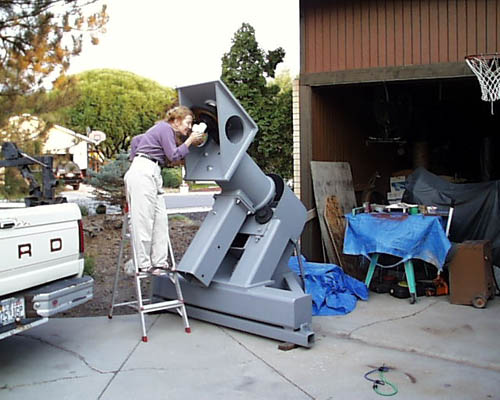

SLAS member Patricia McWhorter stands at the eyepiece position of the 81 cm (32") telescope.  Once completed the eyepiece will remain in this position no matter where the scope is pointed.  15 AUG 2001.
SLAS member Patricia McWhorter stands at the eyepiece position of the 81 cm (32") telescope.  Once completed the eyepiece will remain in this position no matter where the scope is pointed.  15 AUG 2001.

019

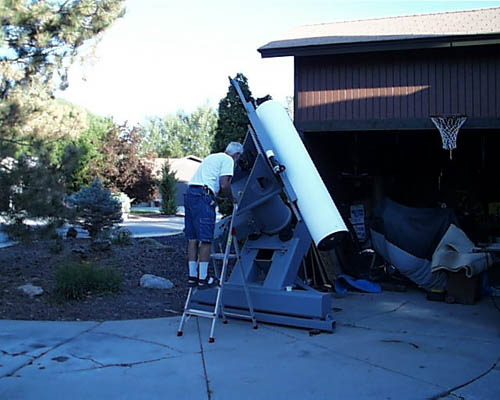

Bruce Grim checks the view through the "small" scope he installed on the mount to check out the mount's firmness (it is VERY firm).  Note that the OTA which will eventually be installed will be three times the diameter and twice the length of the one shown here.  22 AUG 2001
Bruce Grim checks the view through the "small" scope he installed on the mount to check out the mount's firmness (it is VERY firm).  Note that the OTA which will eventually be installed will be three times the diameter and twice the length of the one shown here.  22 AUG 2001

020

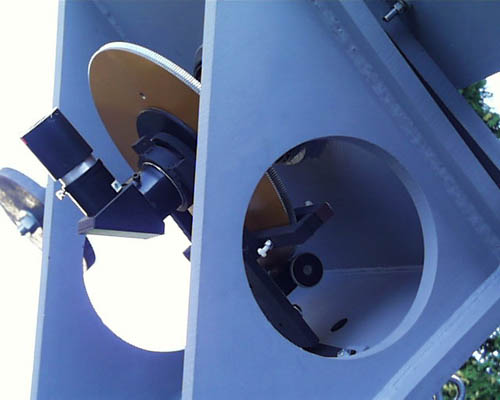

Close up of the eyepiece and declination drive assembly.  22 AUG 2001
Close up of the eyepiece and declination drive assembly.  22 AUG 2001.

021
Closer view of the declination drive.  22 AUG 2001
Closer view of the declination drive.  22 AUG 2001

022
Siegfried Jachmann, Bruce Grim and Chuck Hards examine the work Chuck has done to date on the tube.  05 SEP 2001
Siegfried Jachmann, Bruce Grim and Chuck Hards examine the work Chuck has done to date on the tube.  05 SEP 2001.

023

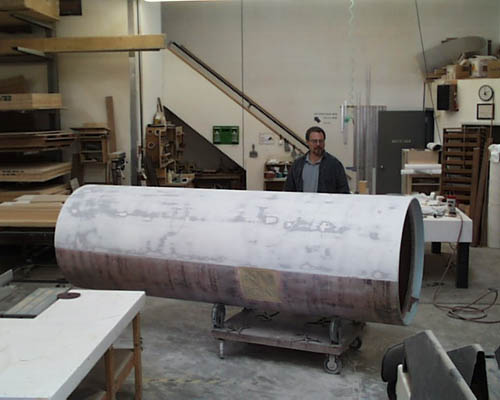

Chuck Hards rolls out the tube (partially covered with body putty) for a better look.  05 SEP 2001
Chuck Hards rolls out the tube (partially covered with body putty) for a better look.  05 SEP 2001.

024

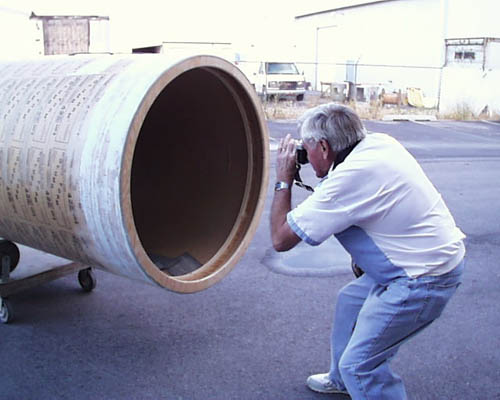

Boyd McNeil get a picture of the bottom end of the tube.  05 SEP 2001
Boyd McNeil get a picture of the bottom end of the tube.  05 SEP 2001.

025
And here's the picture he got (that's Chuch Hards at the other end).  05 SEP 2001.  McNeil photo
And here's the picture he got (that's Chuch Hards at the other end).  05 SEP 2001.  McNeil photo

026

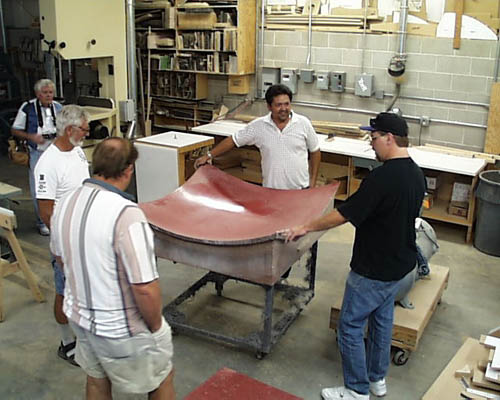

Boyd McNeil, Bruce Grim, Siegfried Jachmann, Roger Butz and Chuck Hards with the mold that Chuck will use to form the tube's end covers.  05 SEP 2001
Boyd McNeil, Bruce Grim, Siegfried Jachmann, Roger Butz and Chuck Hards with the mold that Chuck will use to form the tube's end covers.  05 SEP 2001.

027
Bruce's t-shirt says it all:  "Cosmic".  05 SEP 2001
Bruce's t-shirt says it all:  "Cosmic".  05 SEP 2001.

028

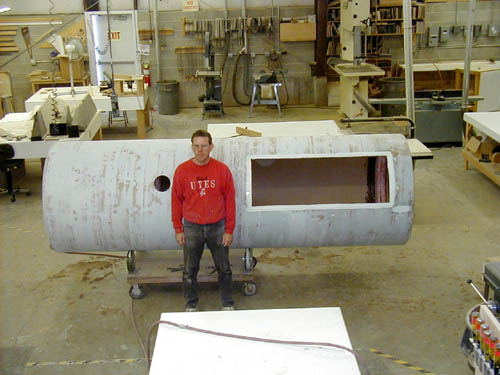

Chuck Hards' companion employee Brian Talbot poses in front of tube for scale. Secondary access hatch visible on right side of tube, output hole next to his shoulder.  16 OCT 2001  Chuck Hards image
Chuck Hards' companion employee Brian Talbot poses in front of tube for scale. Secondary access hatch visible on right side of tube, output hole next to his shoulder.  16 OCT 2001  Chuck Hards image

029

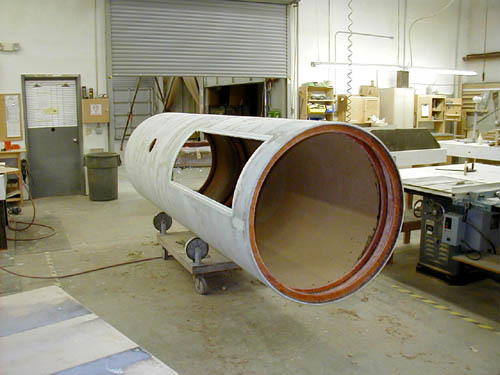

Oblique view from front of tube.  16 OCT 2001  Chuck Hards image
Oblique view from front of tube.  16 OCT 2001  Chuck Hards image

030
Side view of tube.  16 OCT 2001  Chuck Hards image
Side view of tube.  16 OCT 2001  Chuck Hards image

031
Opposite side of tube showing hatch for tertiary mirror access.  16 OCT 2001  Chuck Hards image
Opposite side of tube showing hatch for tertiary mirror access.  16 OCT 2001  Chuck Hards image

032

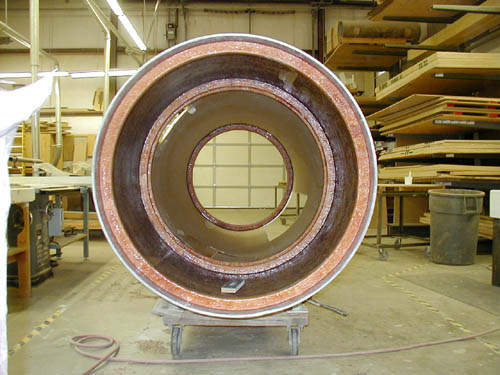

View of tube interior from rear (main mirror) end, showing internal baffles/stiffeners, fiberglassed for weatherproofing and strength.  16 OCT 2001  Chuck Hards image
View of tube interior from rear (main mirror) end, showing internal baffles/stiffeners, fiberglassed for weatherproofing and strength.  16 OCT 2001  Chuck Hards image

033

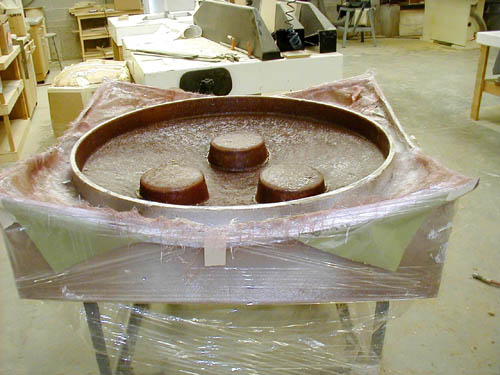

Tailpiece in mold.  Each bump is a recess for 4 cooling fans, three total.  16 OCT 2001  Chuck Hards image
Tailpiece in mold.  Each bump is a recess for 4 cooling fans, three total.  16 OCT 2001  Chuck Hards image

034
Chuck Hards stands behind the tube which is now completely coated with a very smooth layer of fiberglass (dark color) and half of the gelcoat (white) has been applied.  24 OCT 2001
Chuck Hards stands behind the tube which is now completely coated with a very smooth layer of fiberglass (dark color) and half of the gelcoat (white) has been applied.  24 OCT 2001

035

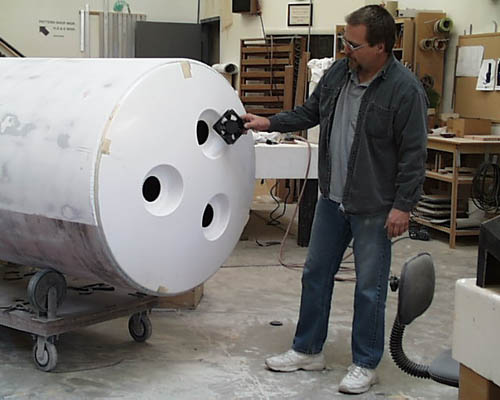

Chuck Hards holds one of the three vent fans that will be installed in the three holes visible in the tailpiece.  24 OCT 2001
Chuck Hards holds one of the three vent fans that will be installed in the three holes visible in the tailpiece.  24 OCT 2001

036

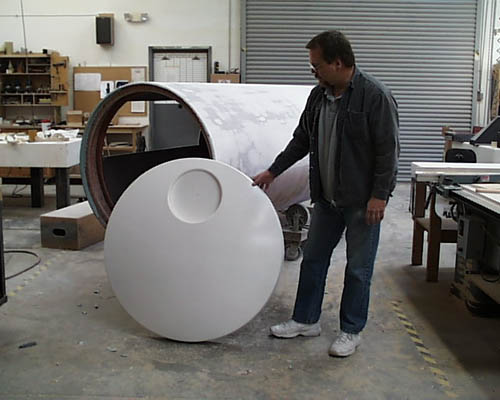

Chuck Hards holds the nearly completed aperture cover.  The circular depression will eventually be removable to allow off-axis viewing.  24 OCT 2001
Chuck Hards holds the nearly completed aperture cover.  The circular depression will eventually be removable to allow off-axis viewing.  24 OCT 2001

037
Grim tube cradle ready for painting.  08 JAN 2002  McNeil image
Grim tube cradle ready for painting.  08 JAN 2002  McNeil image

038

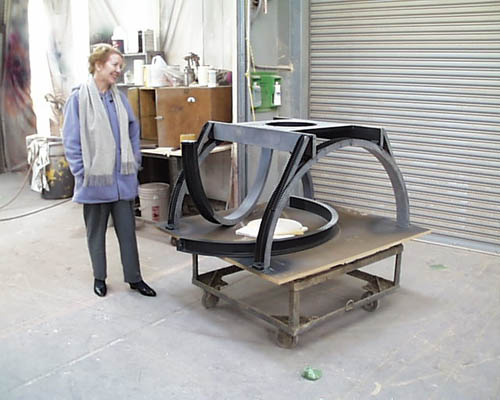

Patricia McWhorter admires the just primed tube cradle. 17 JAN 2002
Patricia McWhorter admires the just primed tube cradle. 17 JAN 2002

039

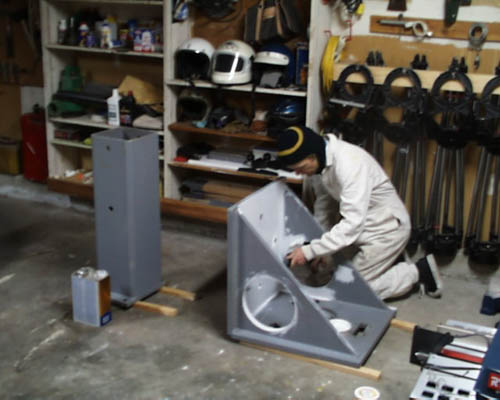

Patrick Wiggins applies a second coat of primer to part of the Grim's declination assembly.  A second piece of the assembly awaits painting to the left. 20 JAN 2002  Patricia McWhorter image
Patrick Wiggins applies a second coat of primer to part of the Grim's declination assembly.  A second piece of the assembly awaits painting to the left. 20 JAN 2002  Patricia McWhorter image

040
Roger Butz and Bruce Grim load parts of the "Big Scope" for transport to SPOC 2. 01 FEB 2002
Roger Butz and Bruce Grim load parts of the "Big Scope" for transport to SPOC 2. 01 FEB 2002

041

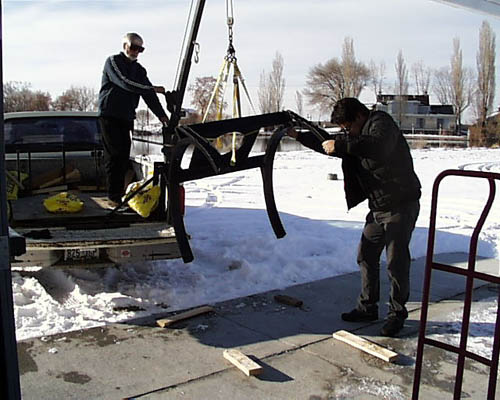

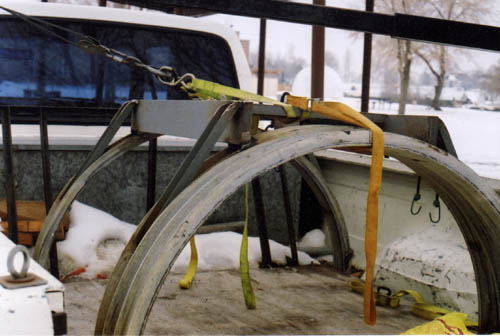

Bruce Grim and Roger Butz unload the cradle for the "Big Scope". 01 FEB 2002
Bruce Grim and Roger Butz unload the cradle for the "Big Scope". 01 FEB 2002

042

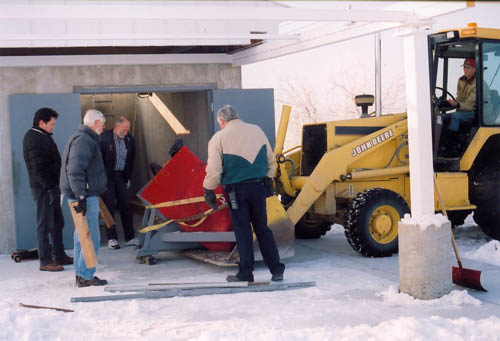

Stansbury Park Service Agency's Bob Shields and SLAS's Roger Butz and Bruce Grim guide the "Big Scope" mount onto the back hoe.  05 FEB 2002  McNeil image
Stansbury Park Service Agency's Bob Shields and SLAS's Roger Butz and Bruce Grim guide the "Big Scope" mount onto the back hoe.  05 FEB 2002  McNeil image

043

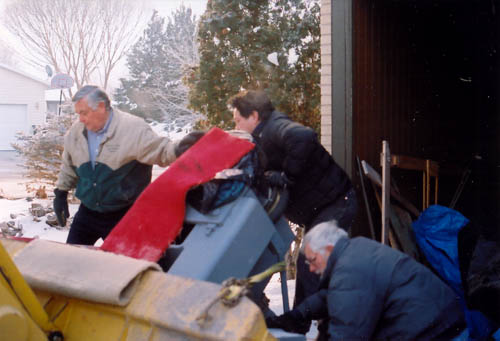

Stansbury Park Service Agency's Bob Shields and SLAS's Bruce Grim look on as the "Big Scope" mount is lifted from Bruce's driveway.  SPSA's Colton Park is at the controls of the back hoe.  Note the bicycle tire being ingeniously used to protect the polar shaft gear.  05 FEB 2002  Ron Ford image
Stansbury Park Service Agency's Bob Shields and SLAS's Bruce Grim look on as the "Big Scope" mount is lifted from Bruce's driveway.  SPSA's Colton Park is at the controls of the back hoe.  Note the bicycle tire being ingeniously used to protect the polar shaft gear.  05 FEB 2002  Ron Ford image

044
The "Big Scope" mount leaves for SPOC 2.  05 FEB 2002  Ron Ford image
The "Big Scope" mount leaves for SPOC 2.  05 FEB 2002  Ron Ford image

045
The "Big Scope" mount arrives at SPOC 2.  05 FEB 2002  McNeil image
The "Big Scope" mount arrives at SPOC 2.  05 FEB 2002  McNeil image

046
The "Big Scope" mount being rolled into the Grim Room.  05 FEB 2002  McNeil image
The "Big Scope" mount being rolled into the Grim Room.  05 FEB 2002  McNeil image

047

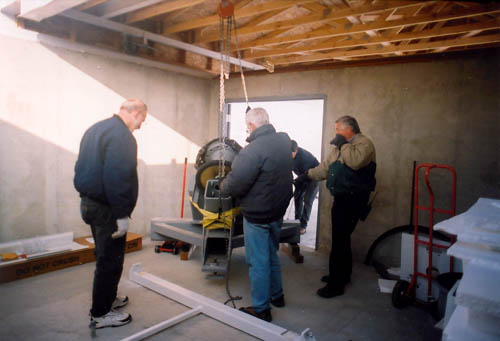

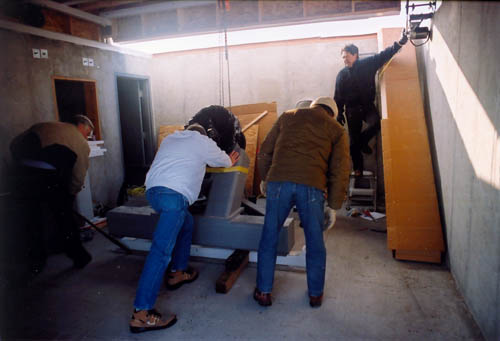

The "Big Scope" mount is pushed into position as Roger Butz appears to shout commands from on high...  05 FEB 2002  McNeil image

048

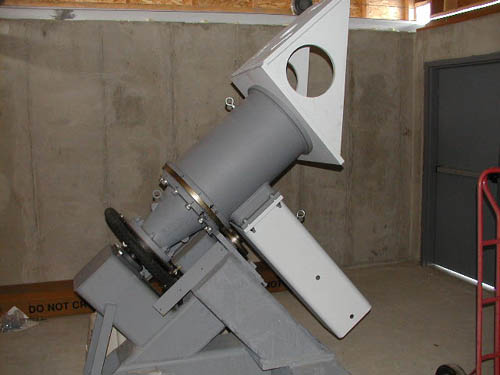

"Big Scope" mount newly installed in SPOC 2 as seen from the northwest. 05 FEB 2002  Ron Ford image
"Big Scope" mount newly installed in SPOC 2 as seen from the northwest. 05 FEB 2002  Ron Ford image

049

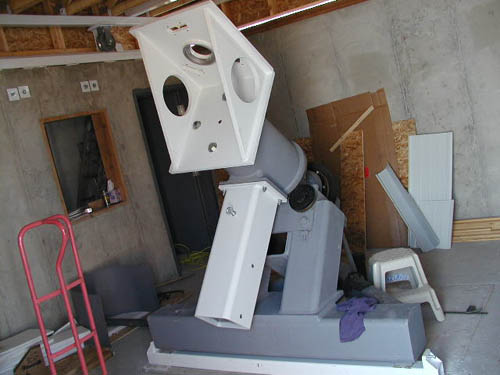

"Big Scope" mount from the east. 05 FEB 2002  Ron Ford image
"Big Scope" mount from the east. 05 FEB 2002  Ron Ford image

050

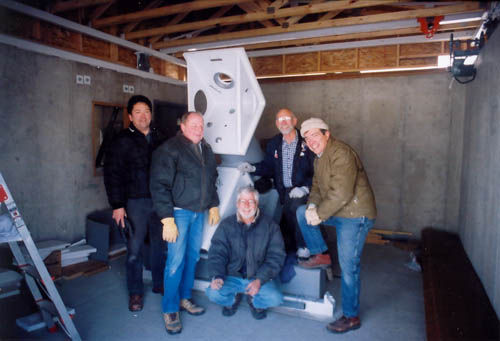

Roger Butz, Andy Bogdan, Bruce Grim, Ron Ford and Ken Harris pose with the newly installed mount.  05 FEB 2002  McNeil image
Roger Butz, Andy Bogdan, Bruce Grim, Ron Ford and Ken Harris pose with the newly installed mount.  05 FEB 2002  McNeil image
