Stansbury Park Observatory Complex (SPOC)
Donna Pease Wiggins Refractor House


Inception Through Pouring the Floor
12 OCT 2002 to 24 JUN 2004
(click on images for enlarged view)


001

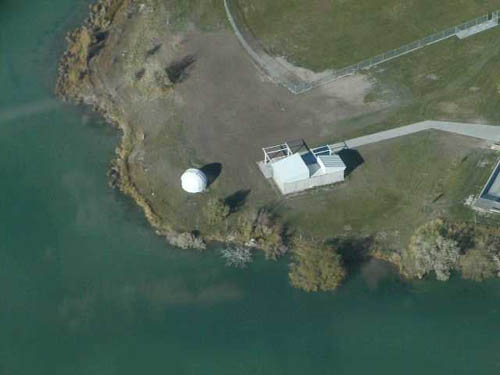

Ron Ford took this photo of SPOC in October 2002.  The Refractor House was built to the left of the Harmons observatory. 12 OCT 2002

002

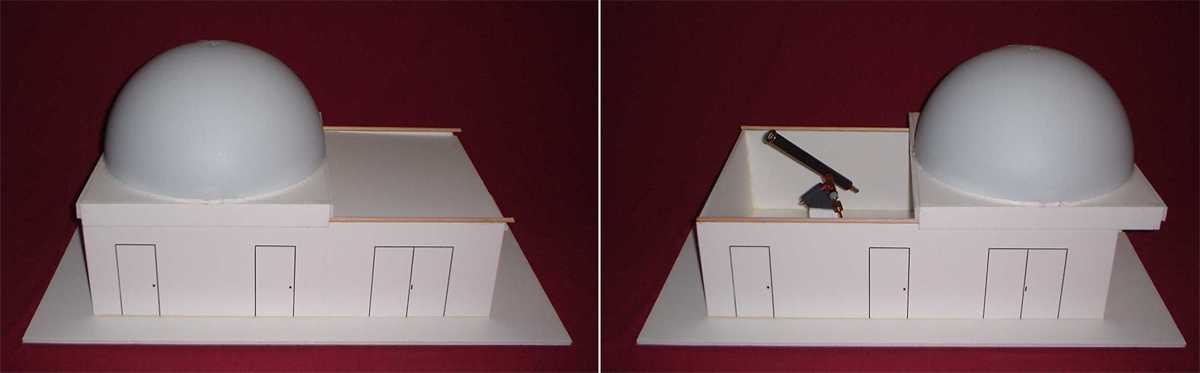

Bruce Grim built this model to show how the Refractor House would look when finished.  The old SPOC dome was used in keeping with the wishes of the surrounding community.  However, it does not rotate and the shutter was welded shut.  As the model shows, to expose the telescope to the sky the dome rolls off to the north.  When closed the inside of the dome can double as a projection screen for a simple planetarium star projector so the public can be shown during daylight what they'll be seeing that night.  30 NOV 2003

003

An early and preliminary drawing showing a front view of the Refractor House (PDF file).  30 NOV 2003

004

An early and preliminary drawing showing a top view of the Refractor House (PDF file).  30 NOV 2003

005

Kim Hyatt, Patrick Wiggins, Ken Harris, Boyd McNeil Andy Bogdan and Bruce Grim meet to discuss the new building.  30 NOV 2003

006

Project architect Kim Hyatt (l.) explains a preliminary set of drawings.  30 NOV 2003

007

SLAS Sec/Treas Charlie Green receives a $12,500 check for the Refractor House from SLAS member Siegfried Jachmann as SLAS president Ken Harris looks on.  The check was a donation from Leucadia Corporation.  23 MAR 2004

008 to 013

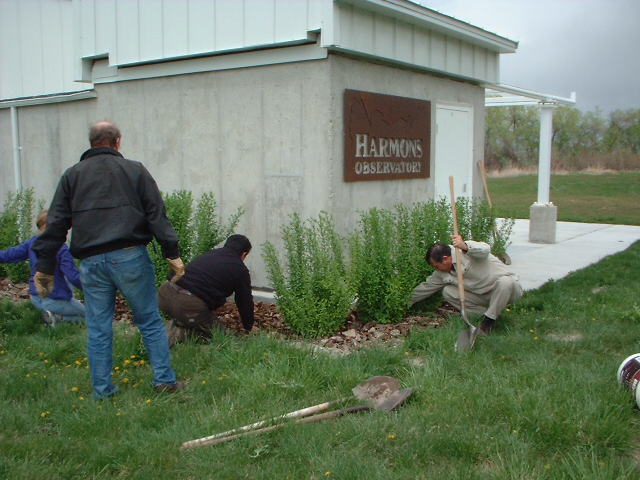

Planting the light shield hedge (aka biophoton shield) around the SPOC perimeter and weeding the existing hedge.  Wayne Clarke and Daniel Turner also helped but managed to avoid getting their pictures taken.  17 APR 2004

008

Boyd McNeil

009

Patrick Wiggins

010

Roger Butz & Ken Harris

011

Ann House, Ken Harris & Boyd McNeil

012

A bit of weeding

013

Bruce Grim & Quintin Foster

014 to 017
SPOC committee members meet with Roen Hale who agreed to help locate the steel that will be needed for the Refractor House at a good price.  21 APR 2004

014

Andy Bogdan, Ken Harris, Bruce Grim and Roen Hale

015

Roen Hale, Siegfried Jachmann and Kim Hyatt

016

Roen Hale & Siegfried Jachmann

017

Siegfried Jachmann & Patrick Wiggins

018 & 019
Donation presentation at the 27 April 2004 SLAS general meeting.

018

SPOC Committee Chairman Siegfried Jachmann "accepts" a donation check for $7,500 from Patrick Wiggins for the Refractor House as SLAS president Ken Harris looks on.

019

Patrick Wiggins presents a donation check for $7,500 for the Refractor House to SPOC Committee Chairman Siegfried Jachmann as SLAS president Ken Harris looks on.

020 to 033
Moving the dome aside in preparation for start of construction.  05 MAY 2004

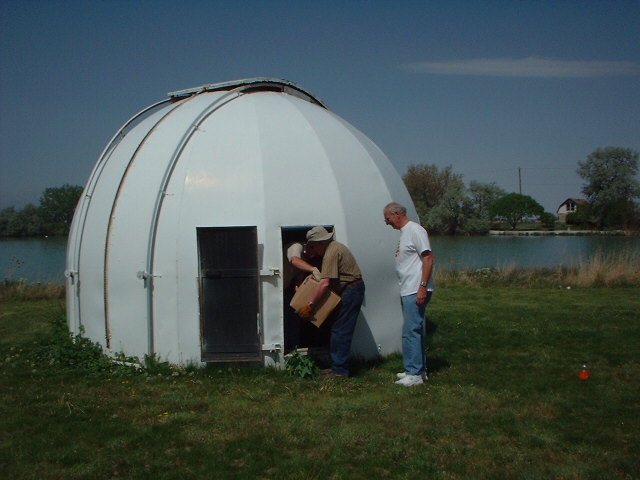

020

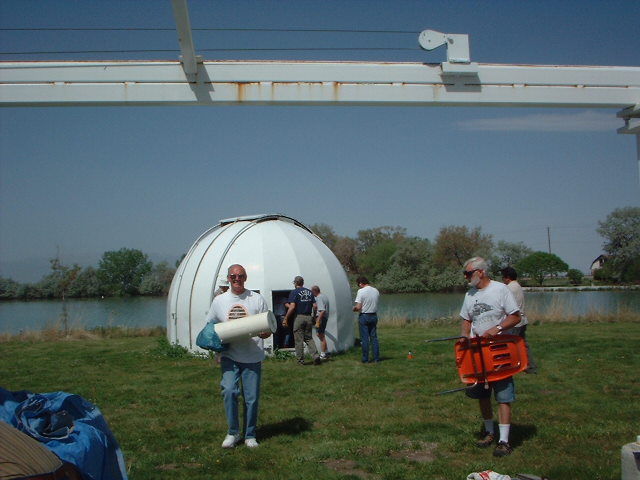

Roger Butz, Boyd McNeil and Ron Ford help with emptying the dome (it had been used as a storage facility for nearly 2 years).

021

Ron Ford, Dave Bennett, Andy Bogdan, Ken Harris, Bruce Grim and Roger Butz finding out a _lot_ had been stored in the dome.

022

Kim Hyatt & Dave Bennett salvage usable parts from the structure that once held the very first SPOC telescope.

023

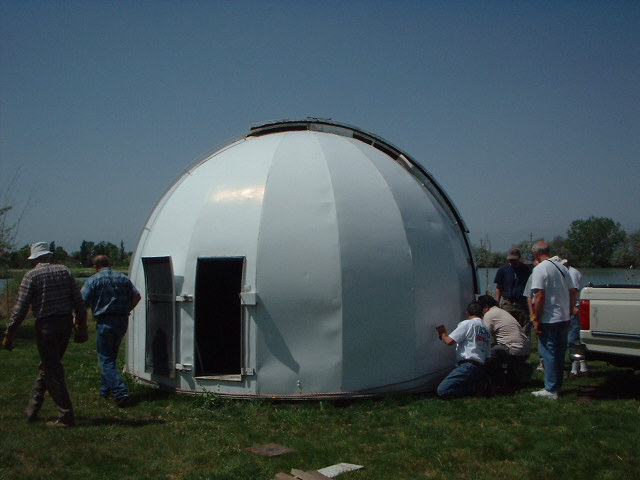

Dave Bennett jacks up one side of the dome.

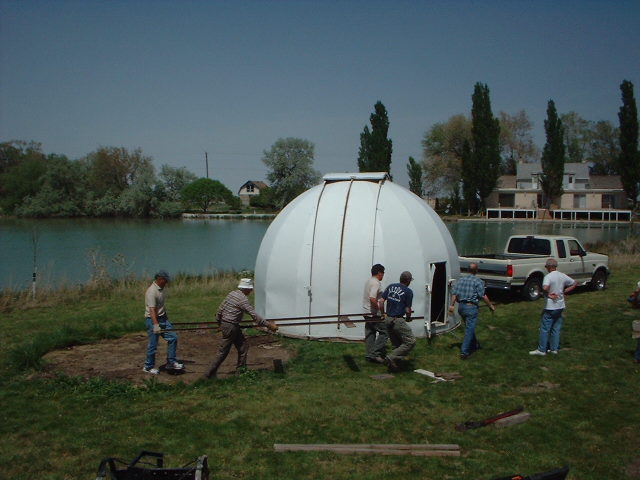

024

Andy Bogdan, Patrick Wiggins and Wayne Clarke jack up the other side of the done.  Ron Ford image.

025

It was found that more mass was needed on the lever.  Ron Ford image.

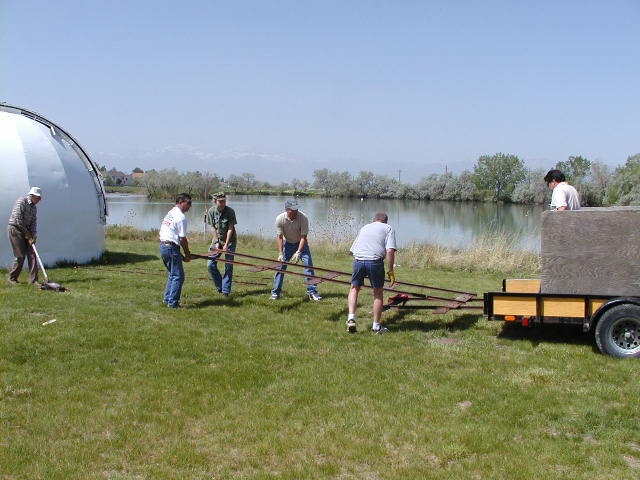

026

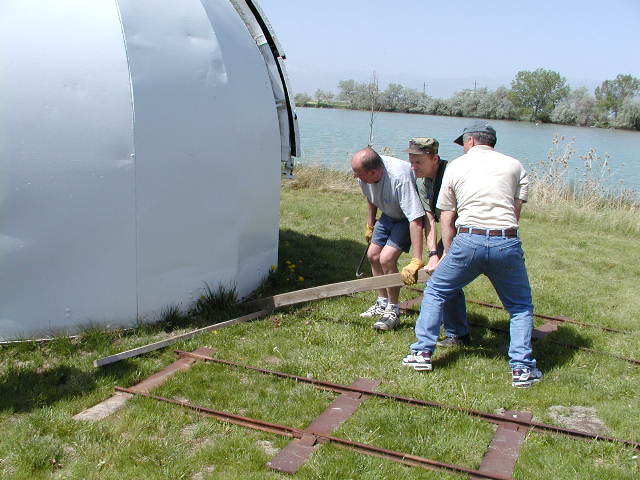

Placing the rails.  Ron Ford image.

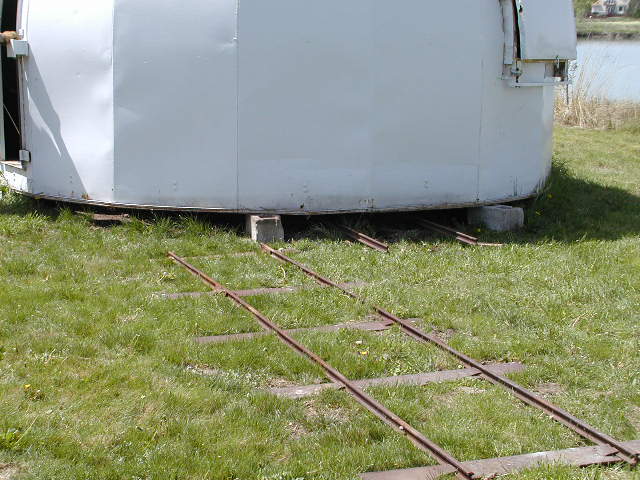

027

Initial placement of the rails.  Eventually used only one rail in the center.  Ron Ford image.

028

Ropes and cables being attached to Bruce Grim's truck as Dave Bailey and Quinten Foster check to see the ropes are positioned properly on the back side of the done..

029

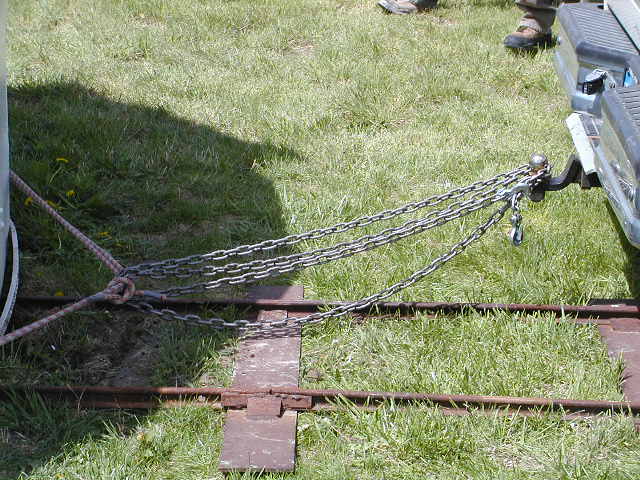

Ropes and cables attached.  Ron Ford image.

030

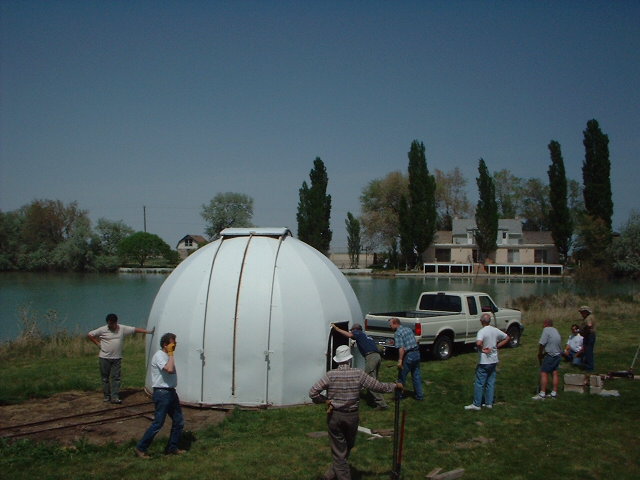

The dome starts to move.  Note the rails that had been installed for the dome to slide on.

031

A section of rail being moved from the rear to the front.

032

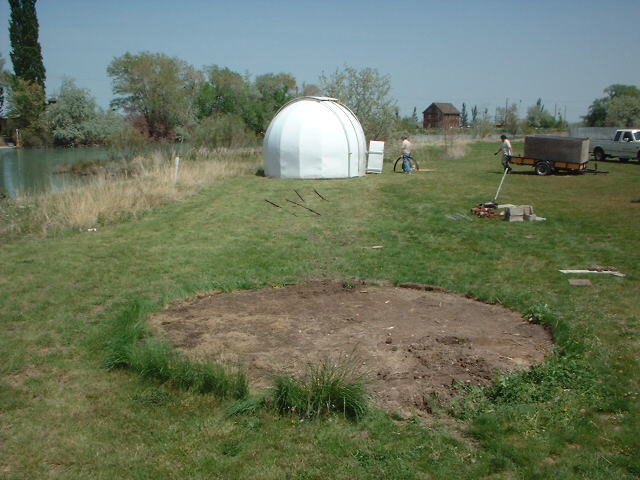

Dome in it's final location (for now) and being refilled.

033

Call the astrologers!  Crop circle sighted at Stansbury Park!

034

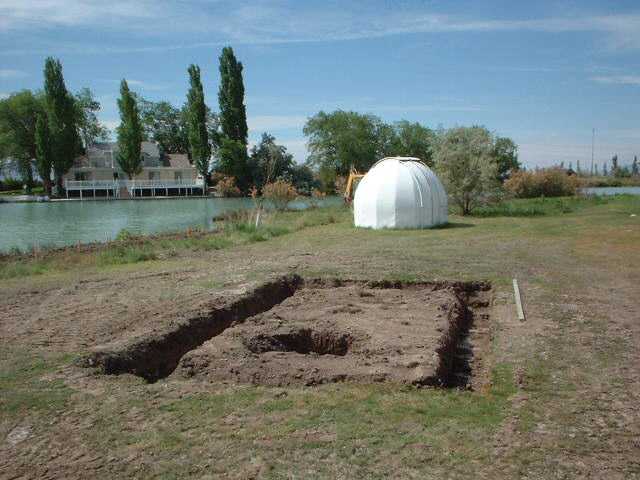

The footers were dug today.  18 JUN 2004

035

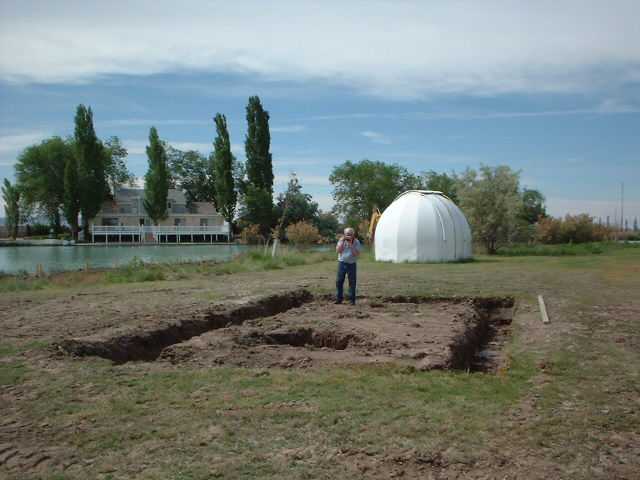

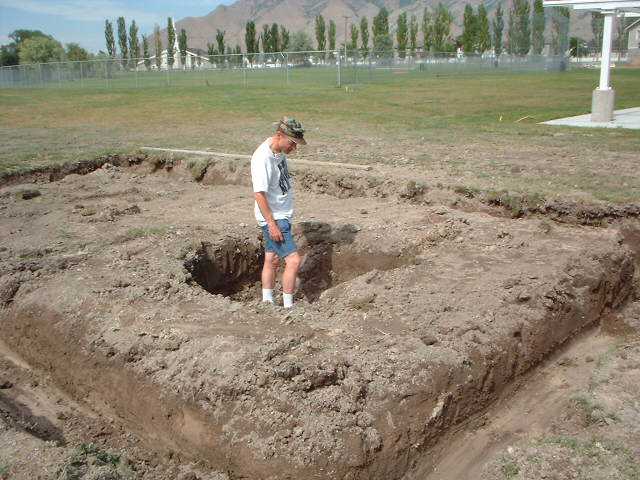

This picture was taken to answer the oft asked question, "How deep was the hole for the pier?"  Boyd McNeil image  18 JUN 2004

036

Boyd McNeil photodocuments the first day of work on the Refractor House.  18 JUN 2004

037

Mark Olsen, owner of I D Electric, installs electrical conduit as Bruce Grim looks on.  23 JUN 2004

038

Patrick Wiggins stands next to the conduit that will carry electrical power to the refractor pier.  23 JUN 2004

039

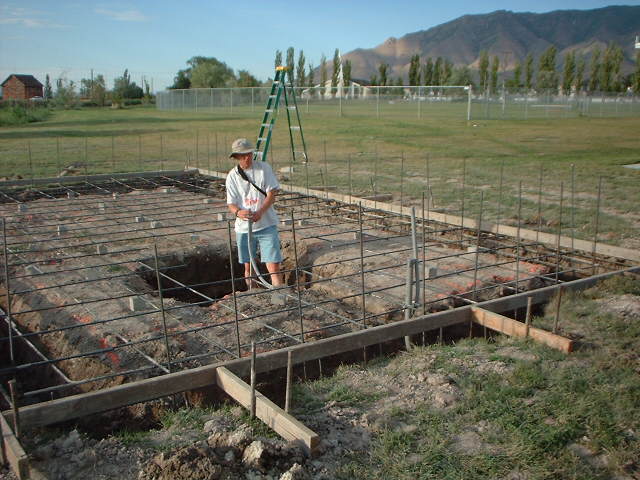

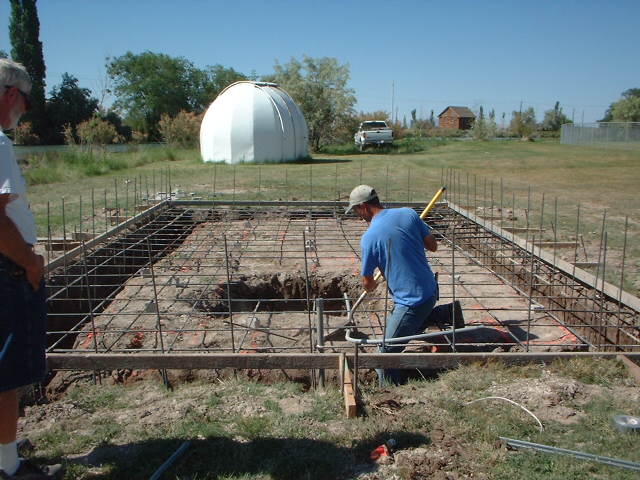

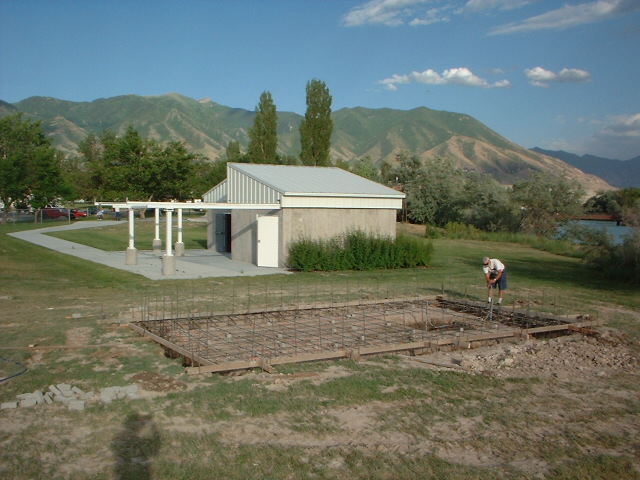

Bruce Grim checks the rebar.  23 JUN 2004

040

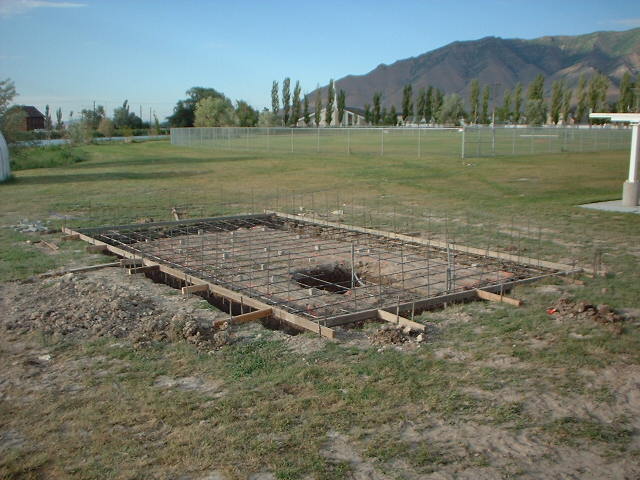

Site awaits arrival of the cement trucks.  23 JUN 2004

041

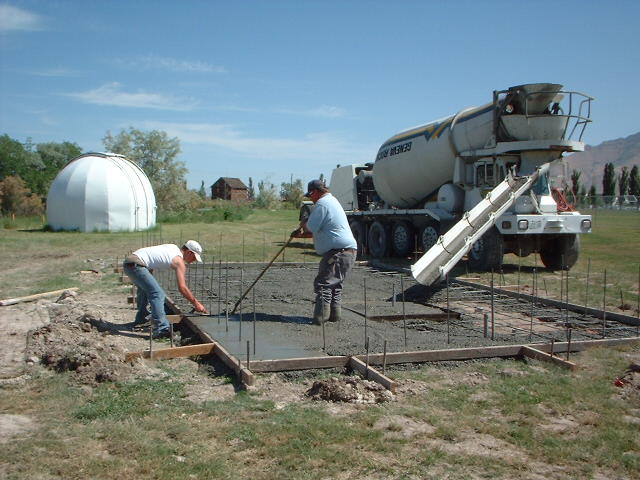

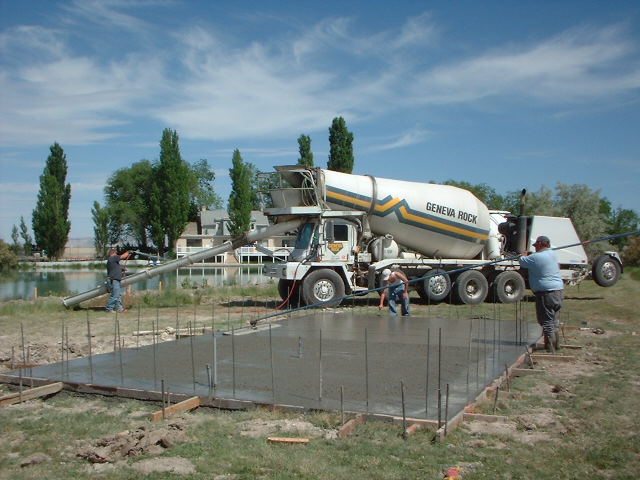

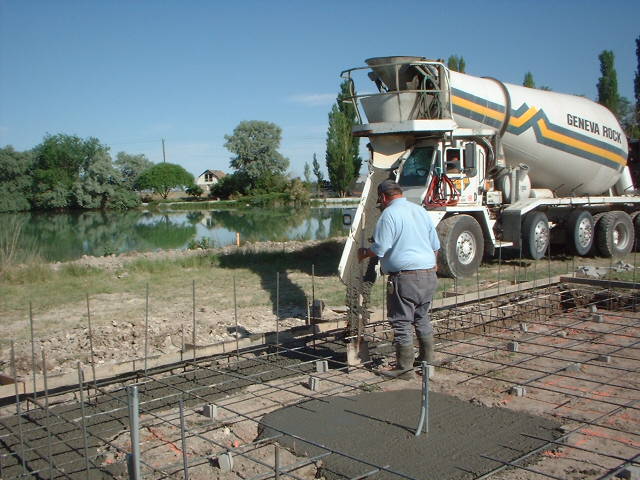

The pouring has started under the direction of Gordon Fields, owner of Fields Quality Concrete & General Construction.  24 JUN 2004

042

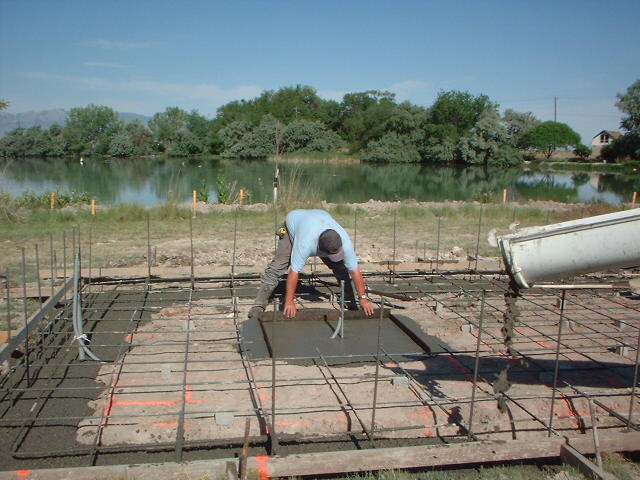

Vibration isolation pads are placed around the telescope pier's base by Gordon Fields.  24 JUN 2004

043                 044
***
Gordon Fields smoothes out the surface. 24 JUN 2004

045

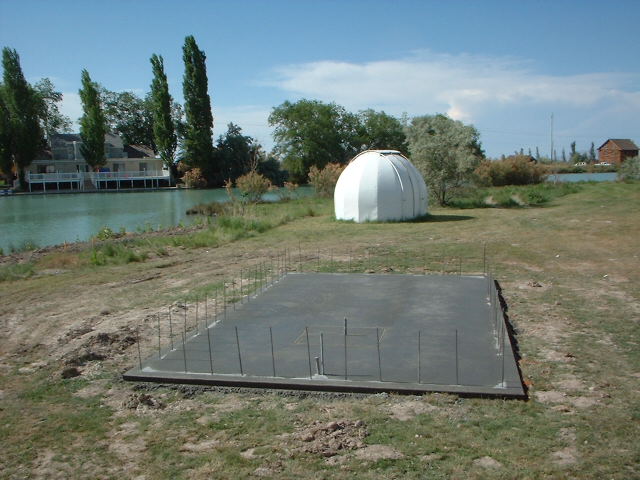

Foundation and floor are finished.  24 JUN 2004

046

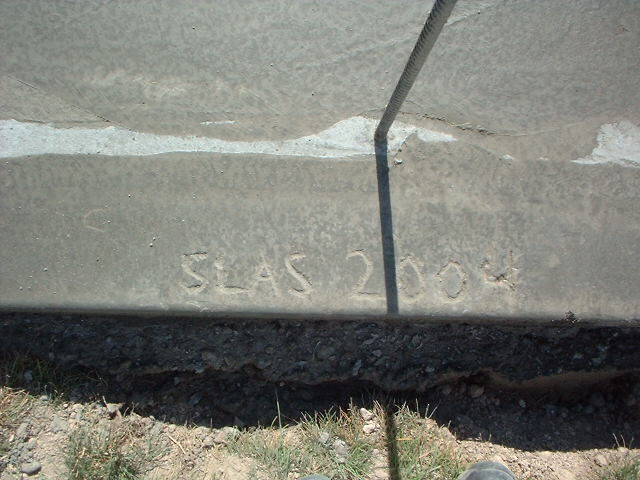

The traditional inscription.  This one is located between where the telescope bay's two doors will be.  24 JUN 2004
