Stansbury Park Observatory Complex (SPOC)
Donna Pease Wiggins Refractor House


FThe 200mm (~8") Brandt/Clark Refractor
03 JUL 1989 to 11 OCT 2005
(click on images for enlarged view)


When completed the tube assembly will consist of a riveted iron 1915 Alvan Clark tube fitted with a 200 mm f/16.8 Brandt lens, 50 mm brass Fullerscope finder scope and a brass and nickel copy of an original Clark focuser.  The tube assembly will be supported by a locally built German equatorial mount using Byers gears.  The mount and tube will sit on a cast iron 1915 Alvan Clark pier.

001

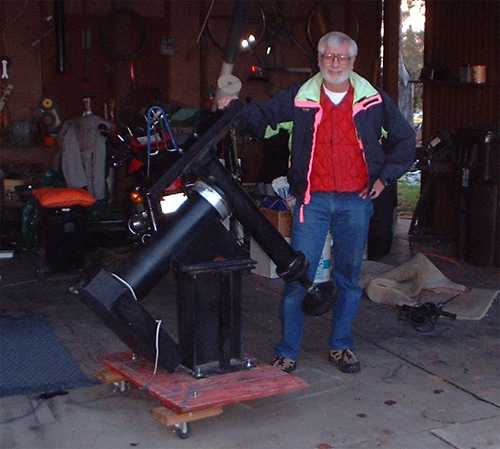

Patrick Wiggins with his Brandt refractor long before he donated it to SLAS.  03 JUL 1989

002

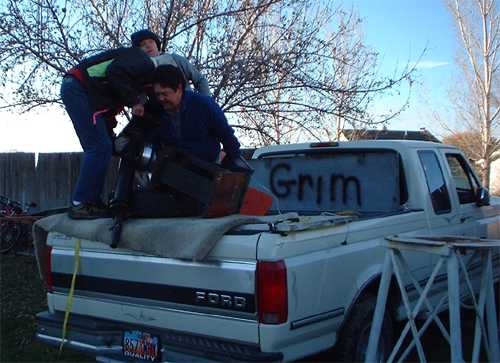

Bruce Grim, Patrick Wiggins and Roger Butz struggle to load the refractor mount onto the truck.  09 DEC 2003

003

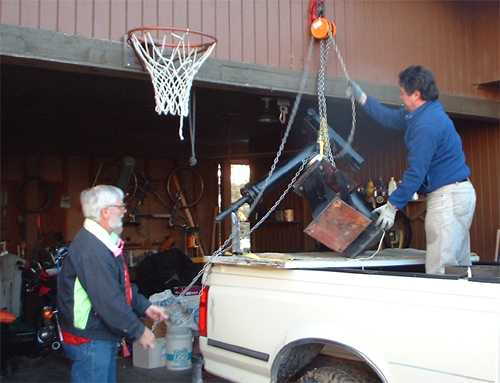

Bruce Grim and Roger Butz use a winch to unload the refractor mount.  09 DEC 2003

004

Bruce Grim with the refractor mount.  Once he does a little cosmetic work on the mount it will be moved to SPOC.  09 DEC 2003

005

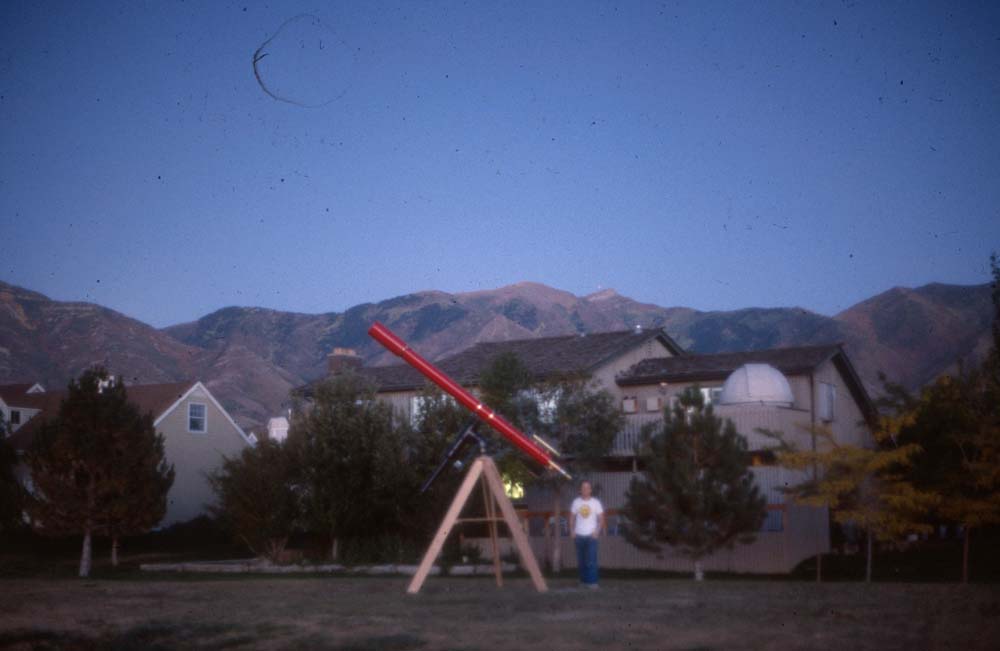

Image of the Brandt refractor as it previously appeared when used with a modern aluminum tube.  17 FEB 2002

006

Bruce Grim uses the Brandt refractor in it's previous incarnation. The focuser and finder will be transferred to the new tube assembly.  17 FEB 2002

007

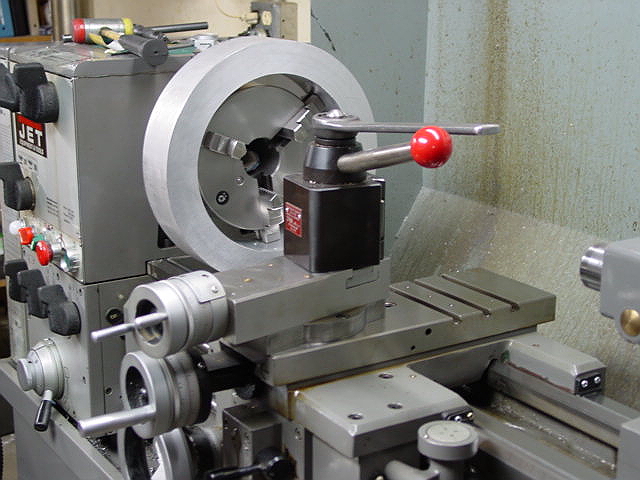

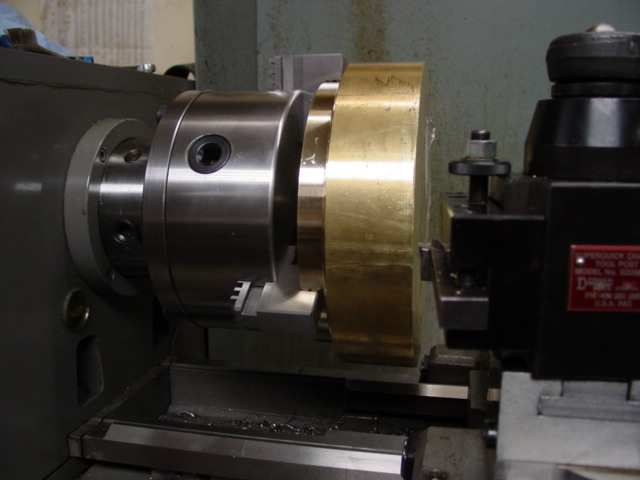

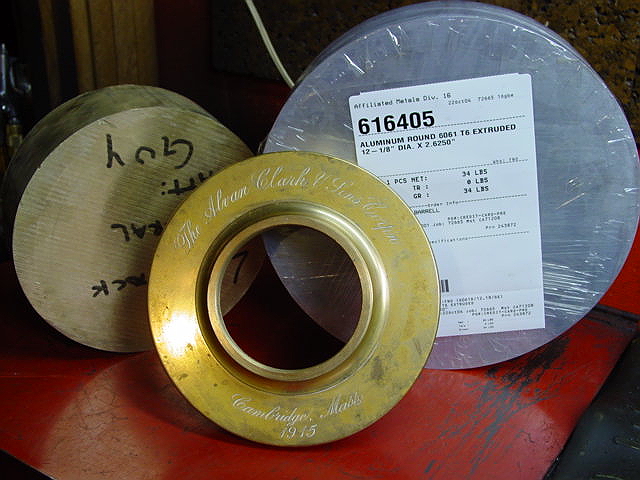

Metal stock to be used to make the brass focuser holder (l) and the aluminum lens holder (r).  Also shown is the original Alvan Clark focuser holder that the focuser holder is to be fashioned after.  Guy Malmborg image.  27 OCT 2004

008

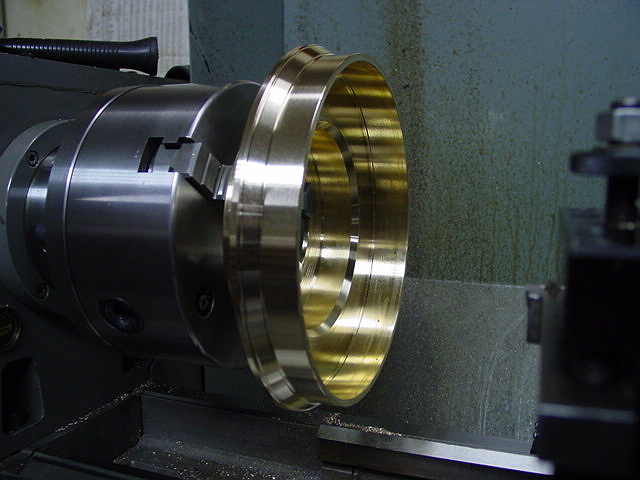

The focuser holder begins to take shape.  Guy Malmborg image.  27 OCT 2004

009              010
***

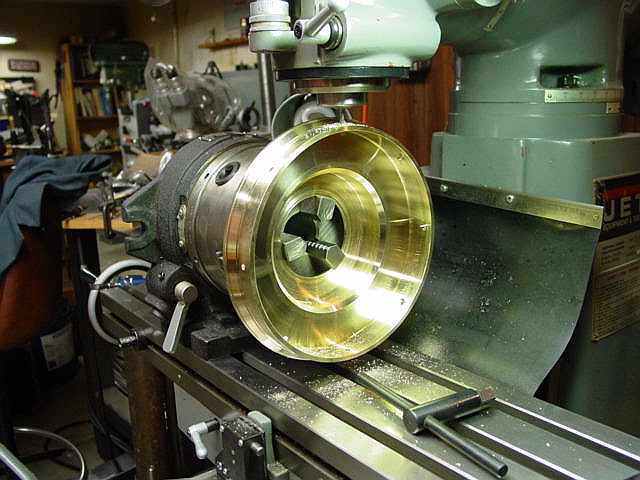

Starting to look like a focuser holder.  Guy Malmborg image.  30 OCT 2004

011

Test fitting the focuser holder to the aft end of the Clark tube (2004 meets 1915).  Guy Malmborg image.  30 OCT 2004

012

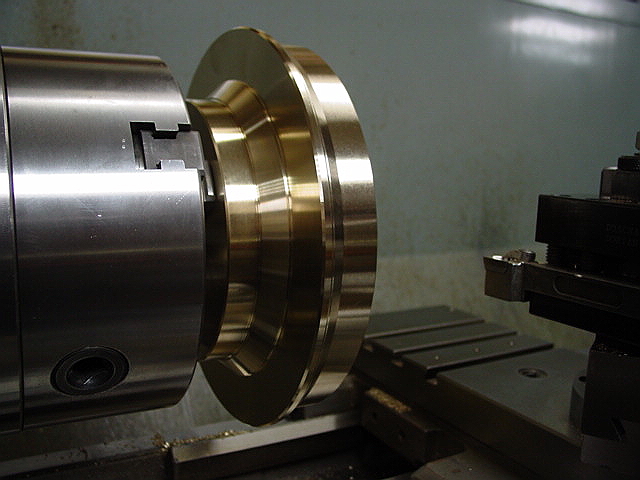

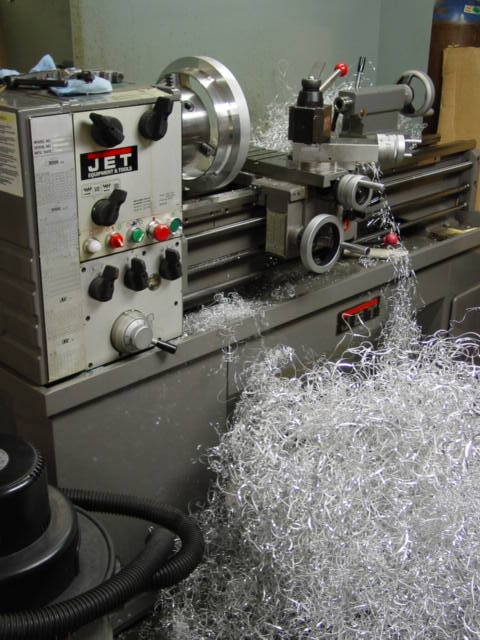

Cutting threads.  Guy Malmborg image.  31 OCT 2004

013

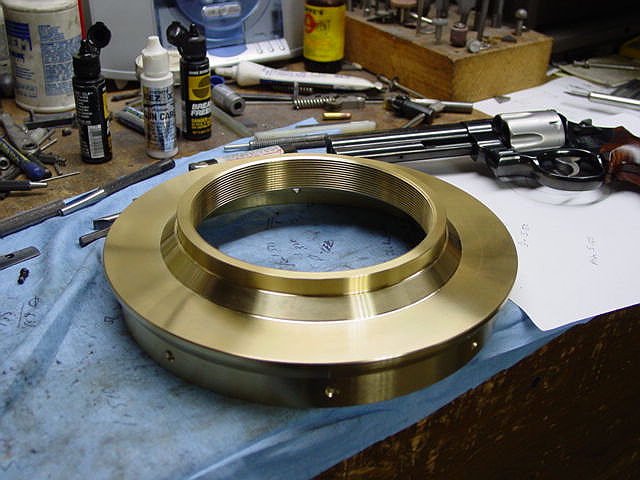

Focuser is threaded (in case you're wondering, Guy is also a gunsmith).  Guy Malmborg image.  31 OCT 2004

014

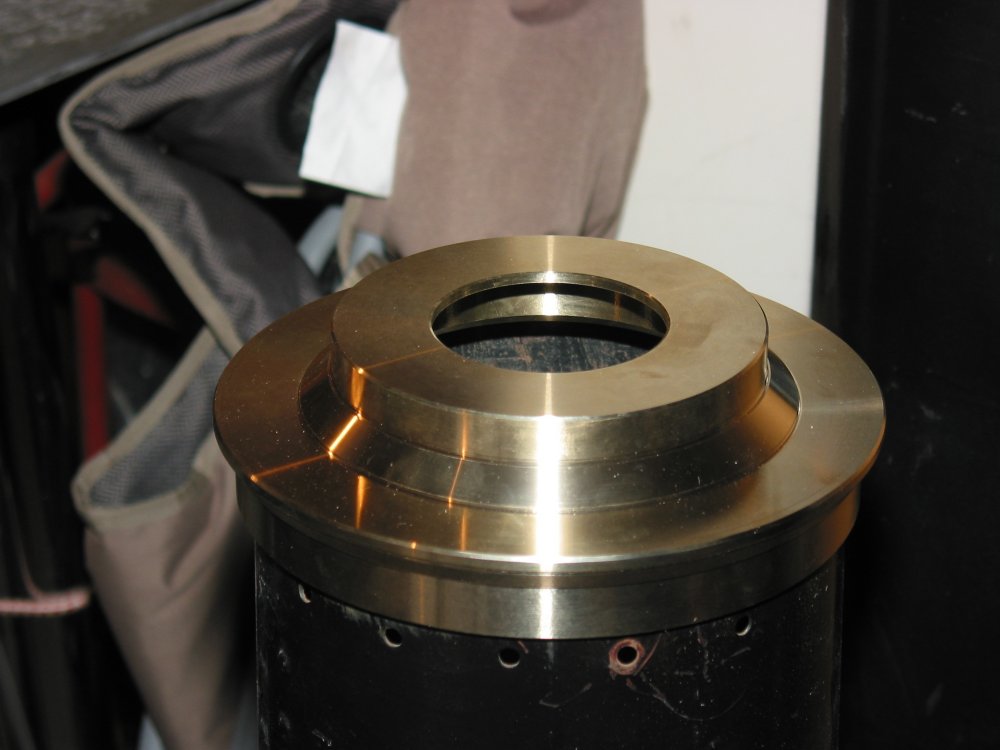

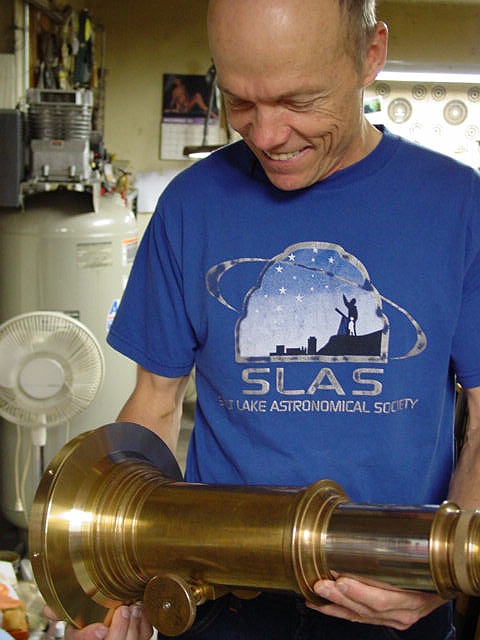

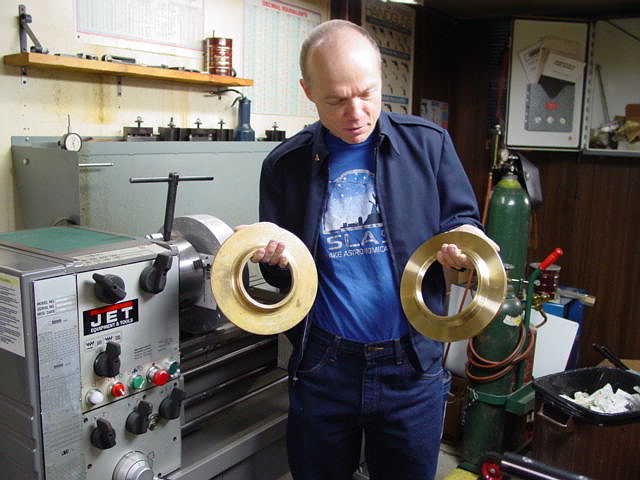

Patrick Wiggins compares the original focuser holder (l) with Guy's copy (r).  Guy Malmborg image.  01 NOV 2004

015

Patrick Wiggins finds his donated focuser fits nicely in its new holder.  Guy Malmborg image.  01 NOV 2004

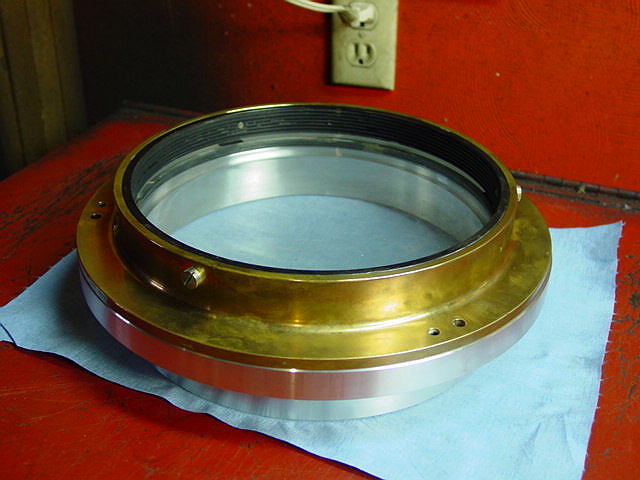

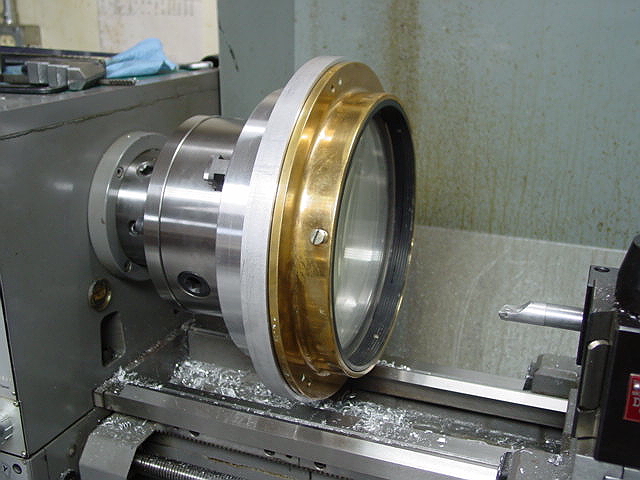

While the refractor will usually be used with the Brandt lens, on special occasions the Brandt lens will be replaced with Siegfried Jachmann's Clark lens.  Because the Clark is larger an adapter had to be made to allow it to fit the tube.  Guy Malmborg machined the adapter.  Images 016 to 019 show the adapter's fabrication.  018 and 019 show the adapter with the Clark lens installed.  Guy Malmborg images.  05 APR 2005

016

017

018

019

020          021
***

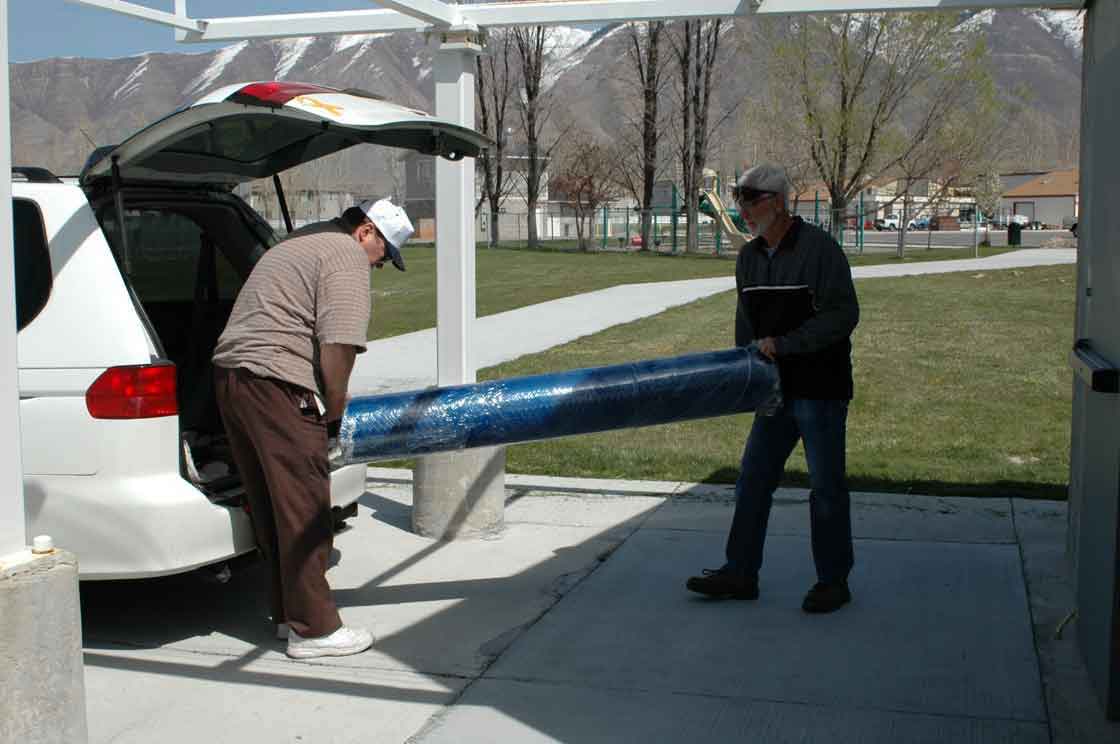

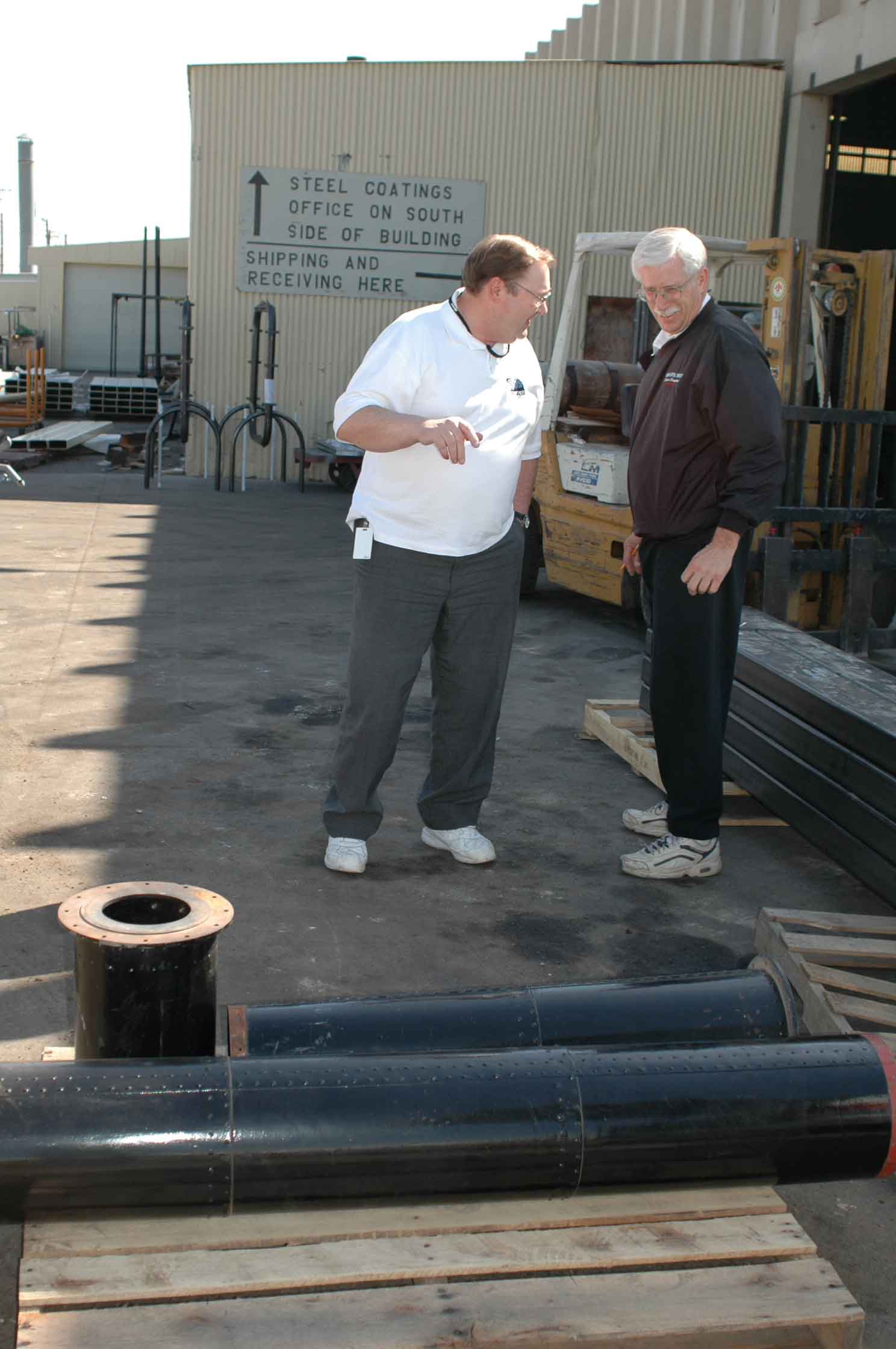

Siegfried Jachmann drops off the original Clark tube for sandblasting and powder coating.  06 APR 2005

022

Siegfried Jachmann and Bruce Grim unload a section of the newly powder coated Clark tube at SPOC.  15 APR 2005

023

Siegfried Jachmann and Bruce Grim with the Clark tube and the ring that will hold the Clark lens.  15 APR 2005

024

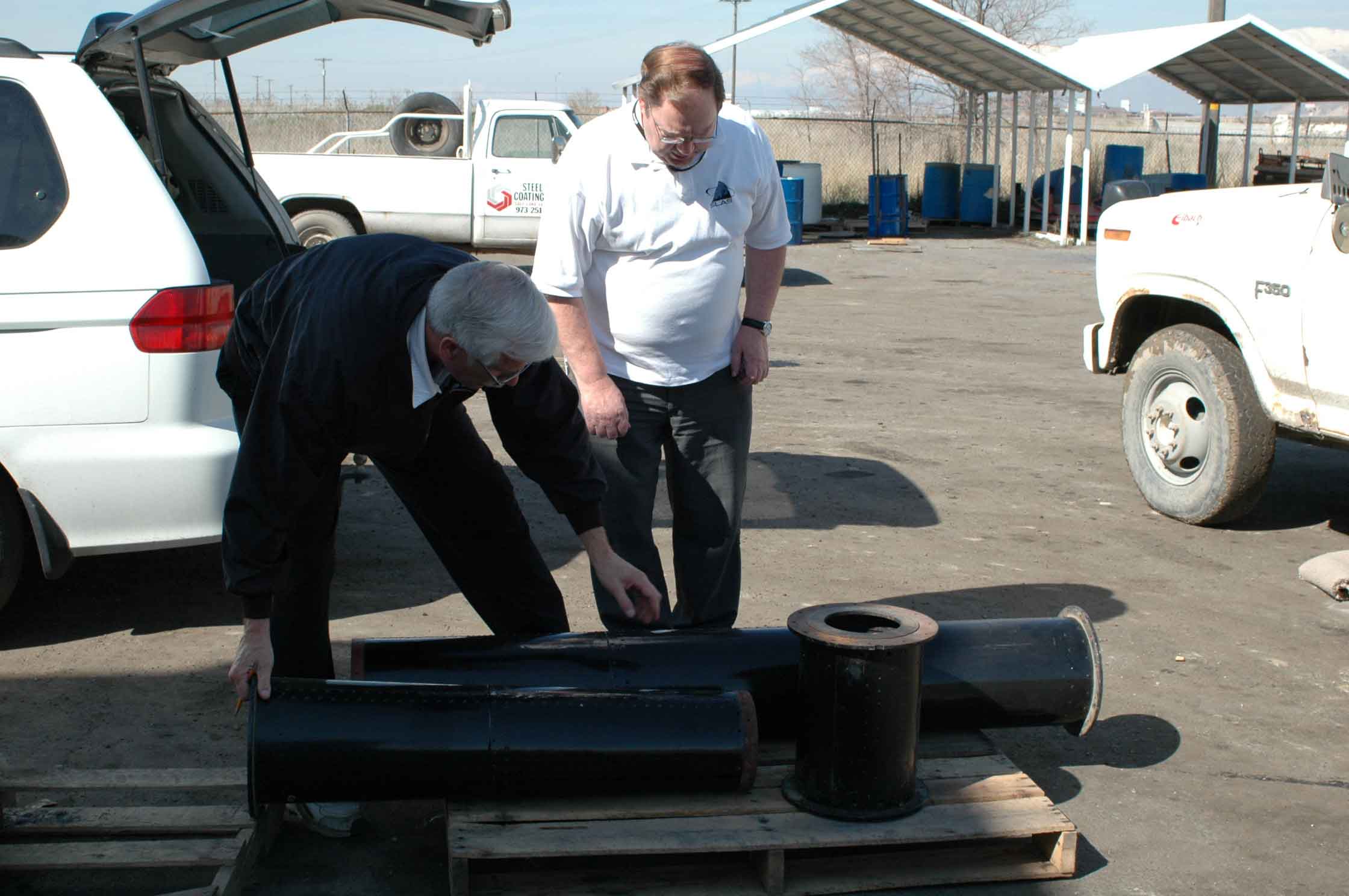

Steve Dodds delivers the original Clark pier to temporary storage.  19 APR 2005

025

Bruce Grim, Roger Butz, Steve Dodds and Mark Bloomenthal with the shrouded Clark pier.  19 APR 2005

026

Patrick Wiggins inspects the Clark pier.  19 APR 2005

027

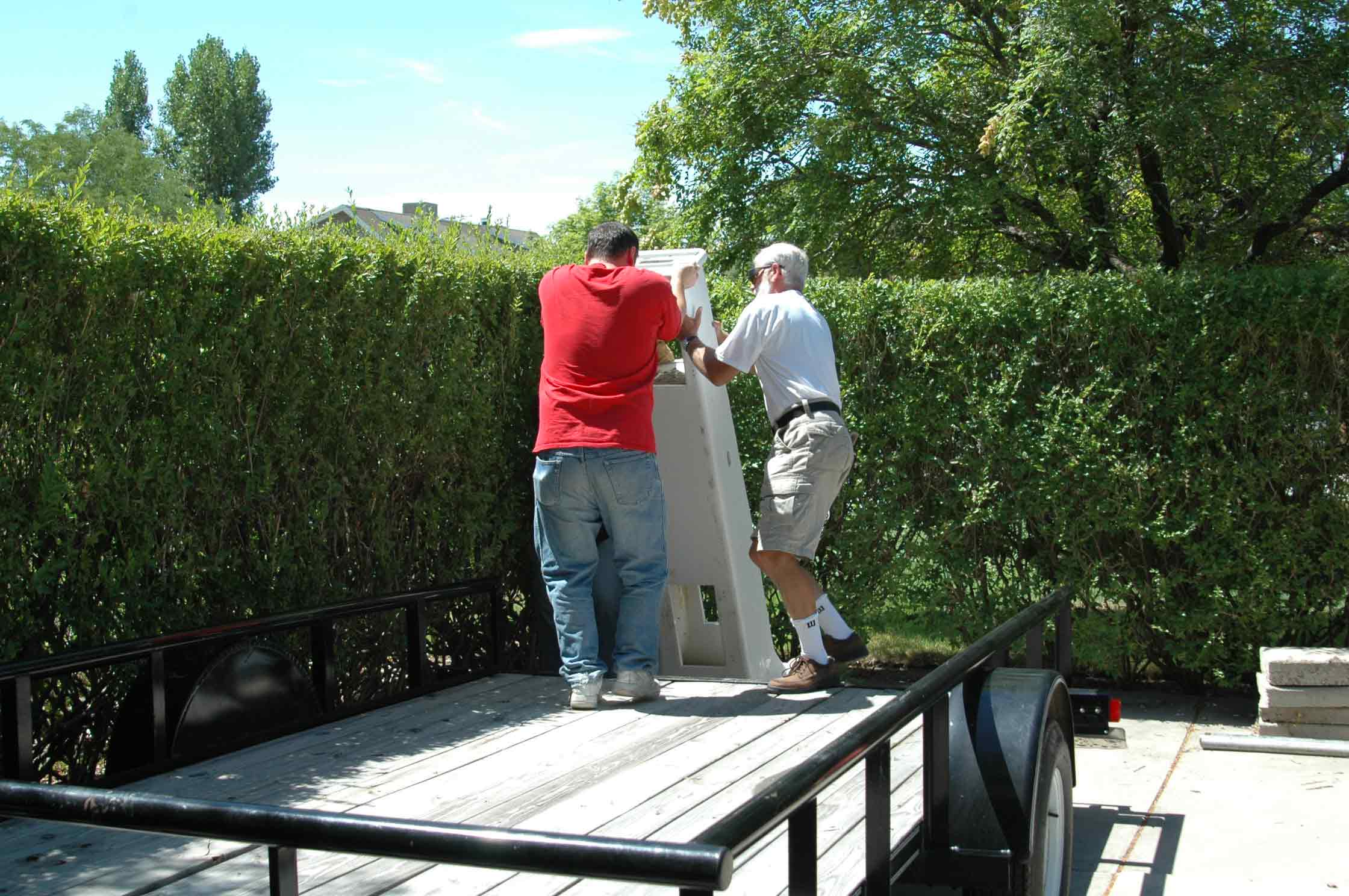

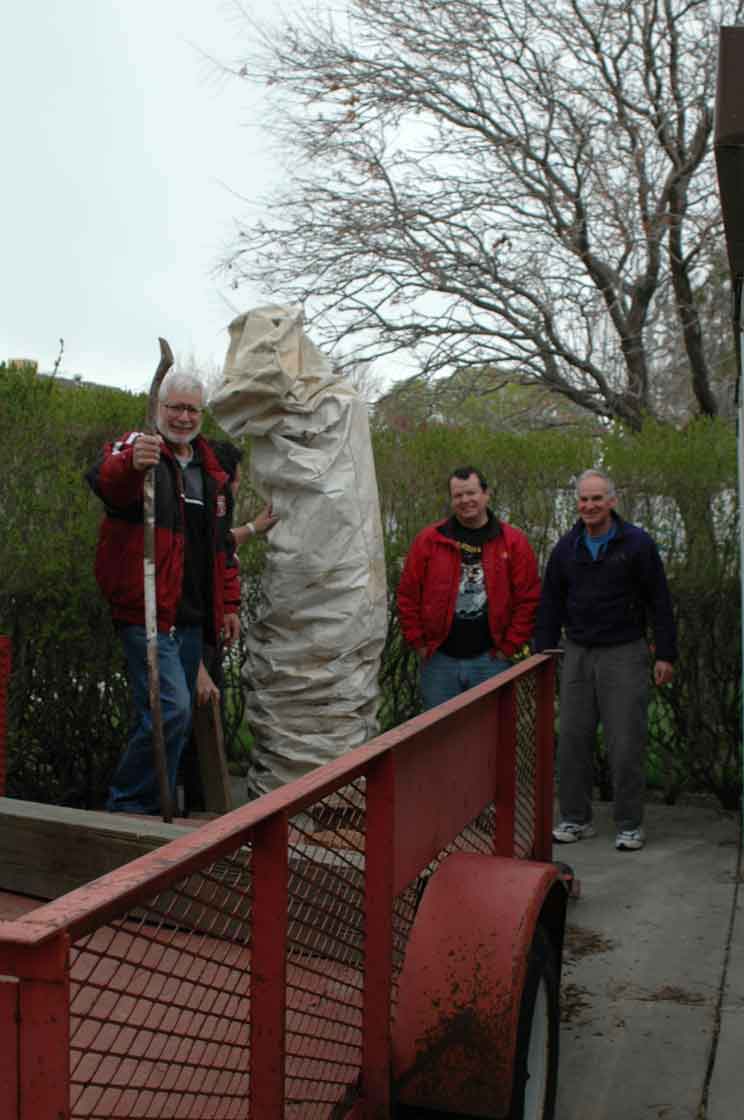

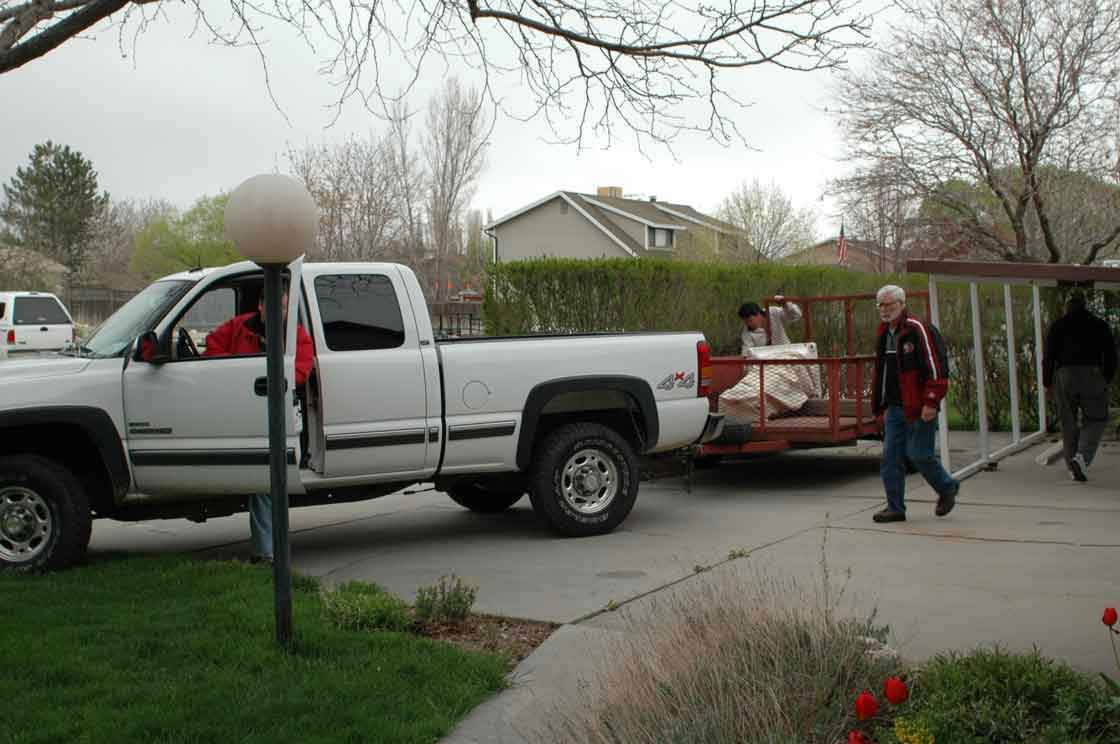

Steve Dodds, Bruce Grim and Guy Malmborg (hidden from view) tip the Clark pier onto the trailer.  29 JUL 2005

028

Guy Malmborg, Bruce Grim and Guy Malmborg drag the Clark pier into the Refractor House.  29 JUL 2005

029

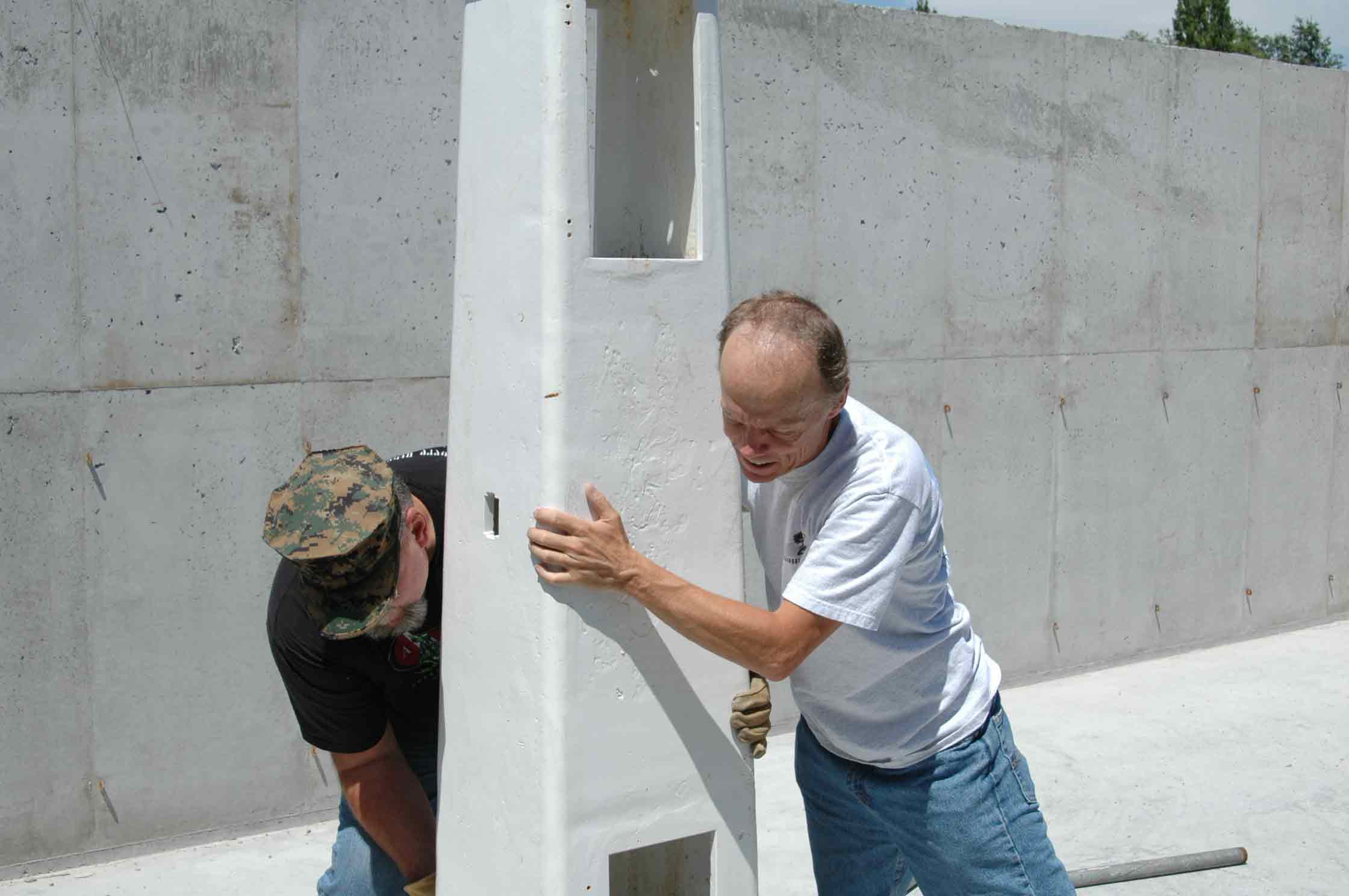

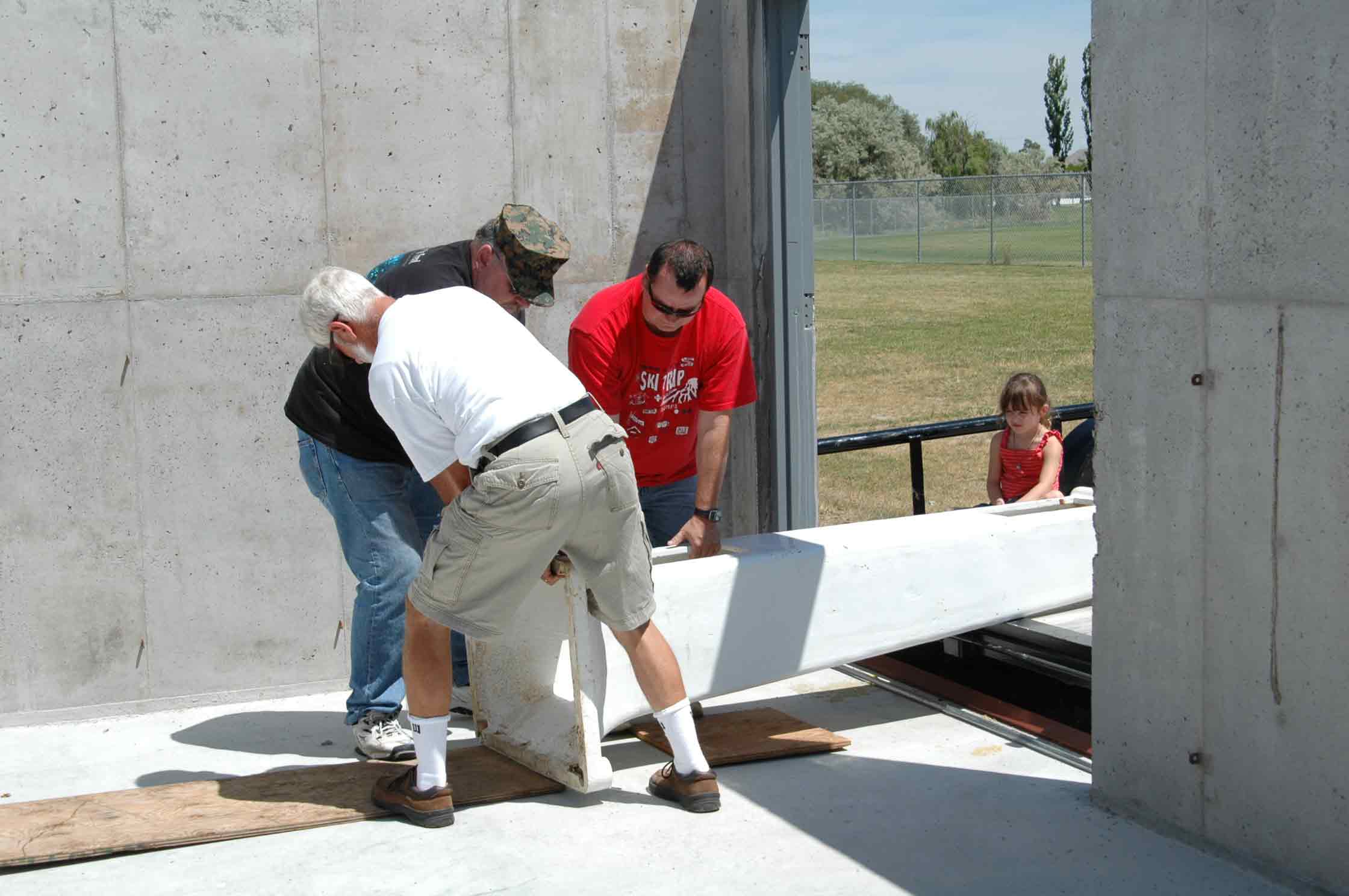

Bruce Grim, Steve Dodds and Guy Malmborg roll the Clark pier into position.  29 JUL 2005

030

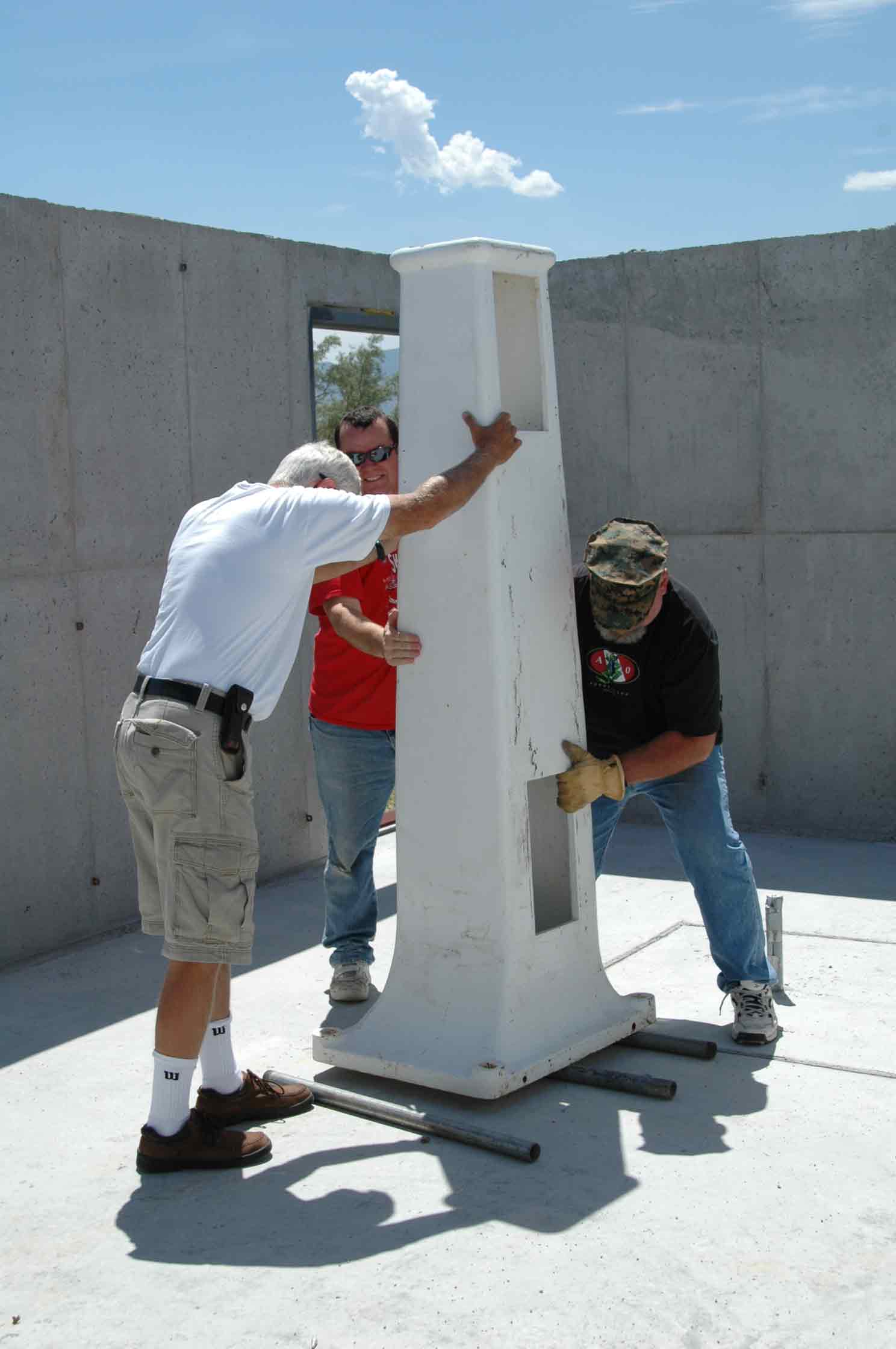

Guy Malmborg and Patrick Wiggins adjust the position of the Clark pier.  29 JUL 2005

031

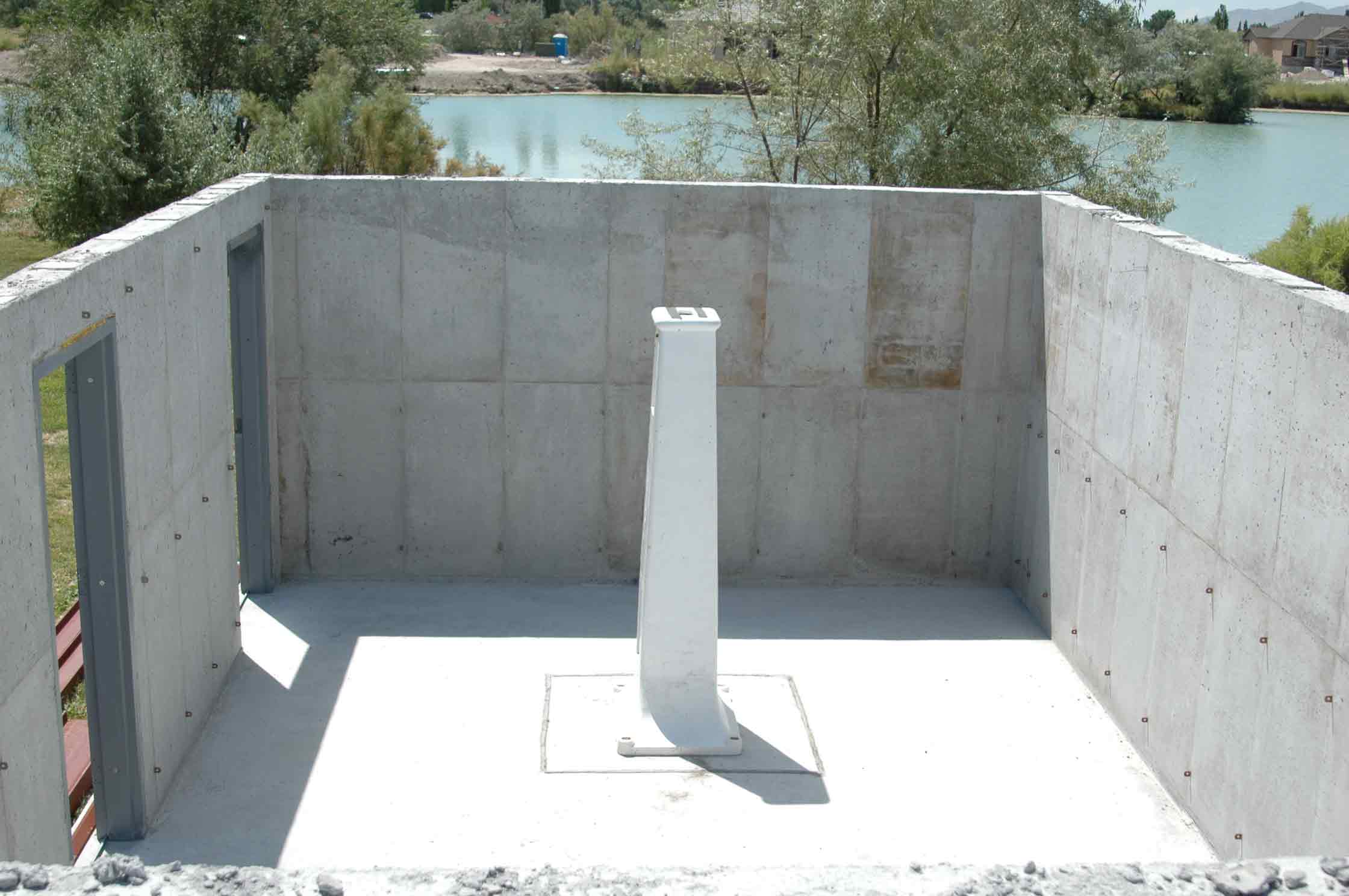

The Clark pier in position in the Refractor House.  29 JUL 2005

032

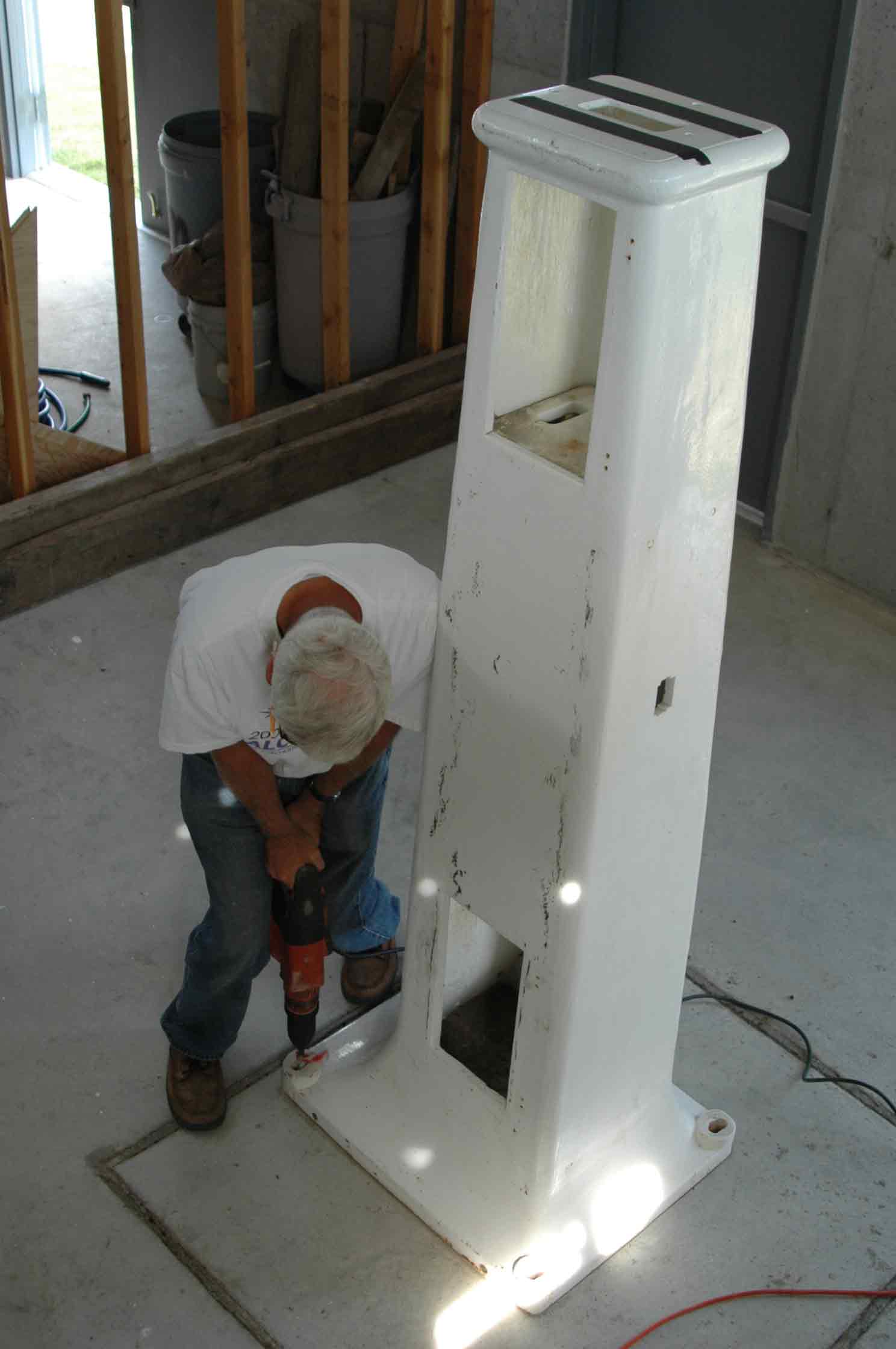

Bruce Grim drills bolt holes for the Clark pier.  18 SEP 2005

033              034
***

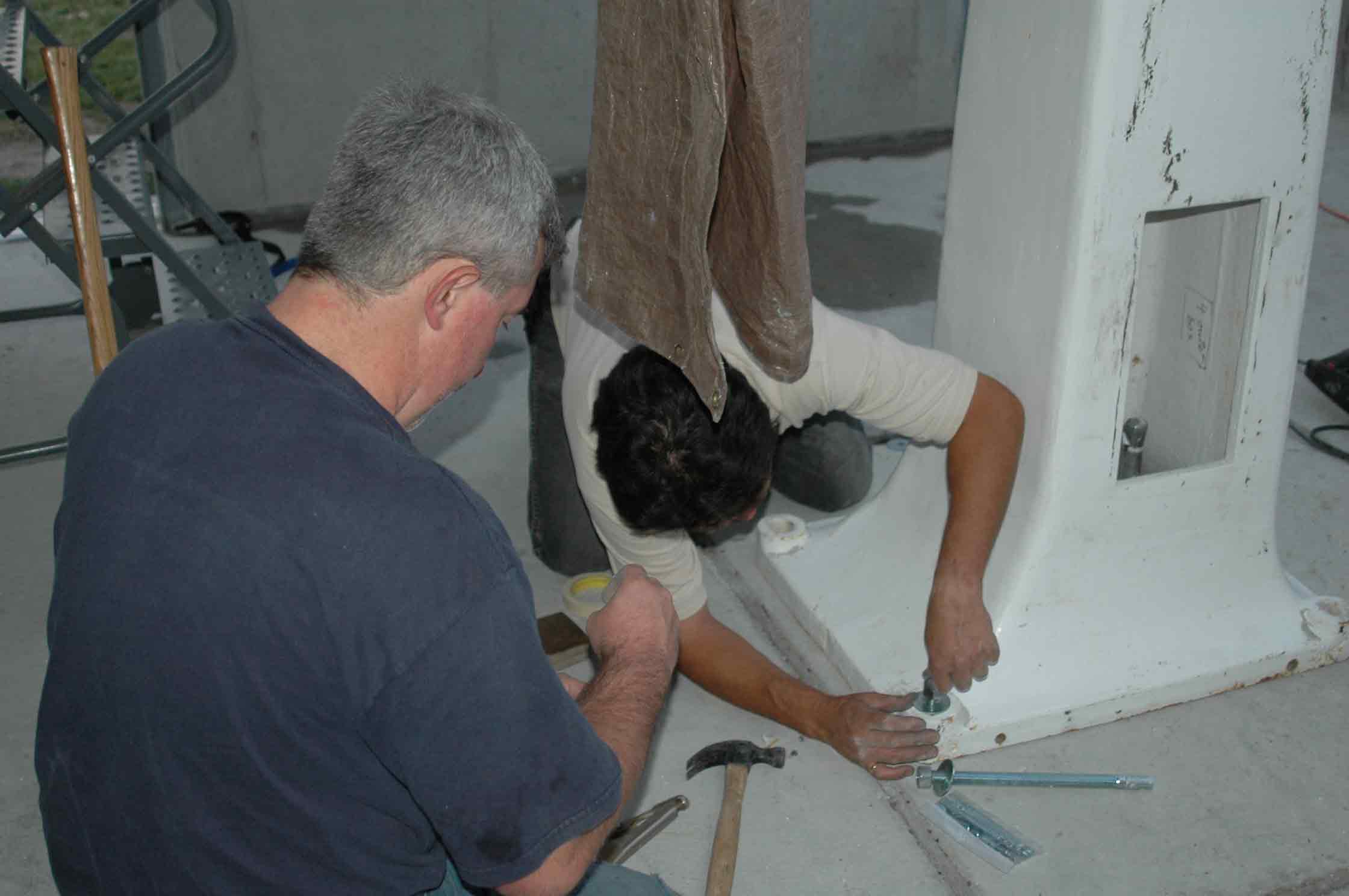

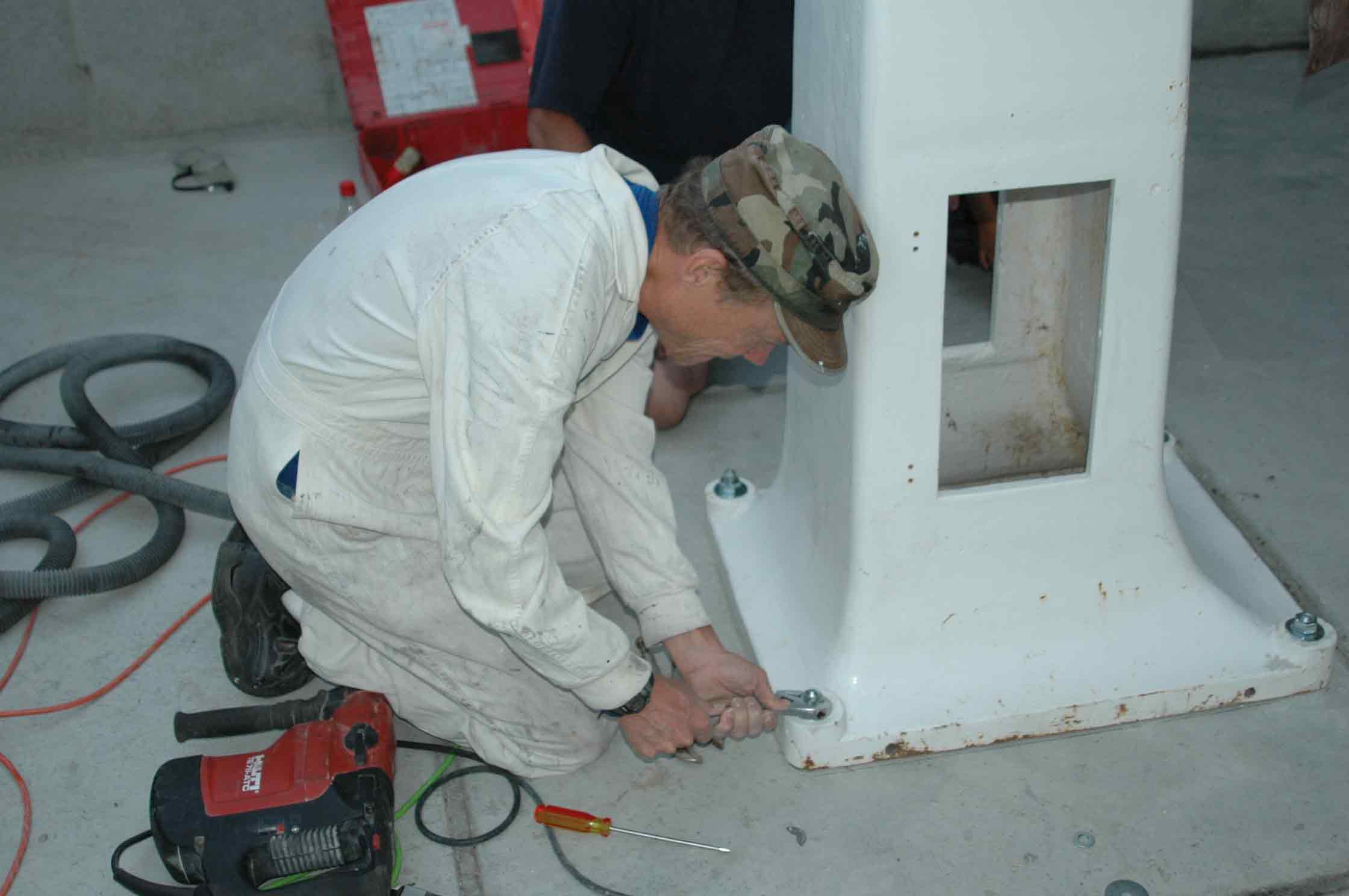

Patrick Wiggins, Dale Wilson and Roger Butz install the pier hold down bolts.  19 SEP 2005

035

Ken Harris, Bruce Grim, Patrick Wiggins and Roger Butz prepare to put the mount in place.  23 SEP 2005  Boyd McNeil image.

036

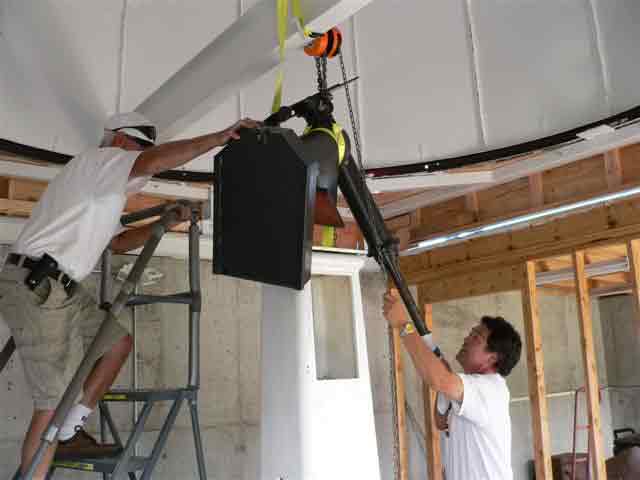

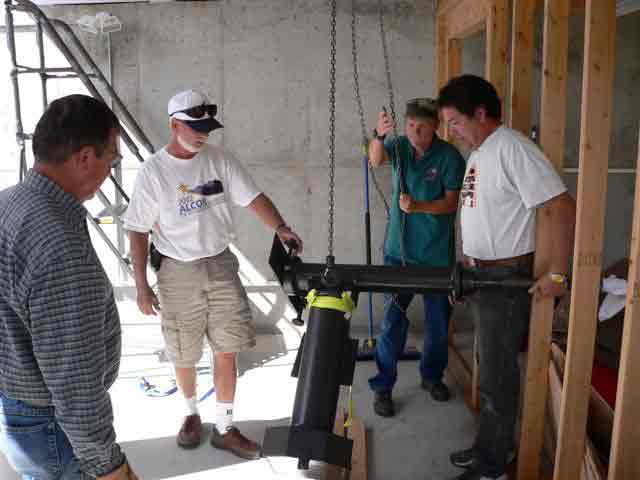

Bruce Grim and Roger Butz lower the mount into place.  23 SEP 2005  Boyd McNeil image.

037

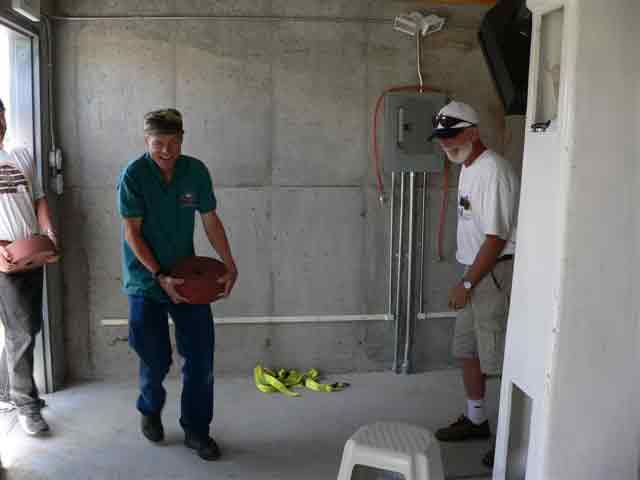

Roger Butz and Patrick Wiggins bring in the mount's counterweights and Bruce Grim looks on.  23 SEP 2005  Boyd McNeil image.

038

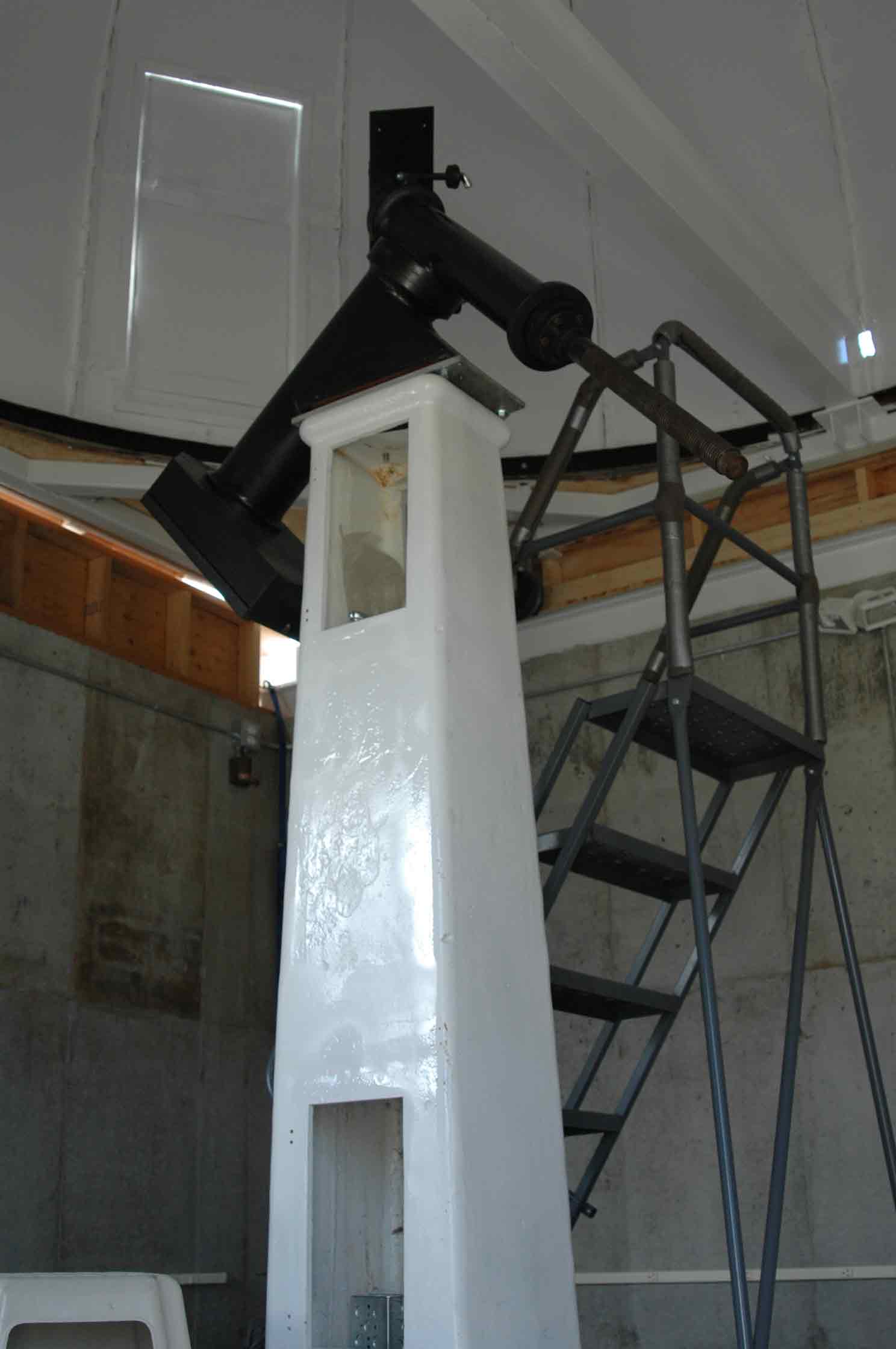

The mount in place on the Clark pier.  23 SEP 2005

039

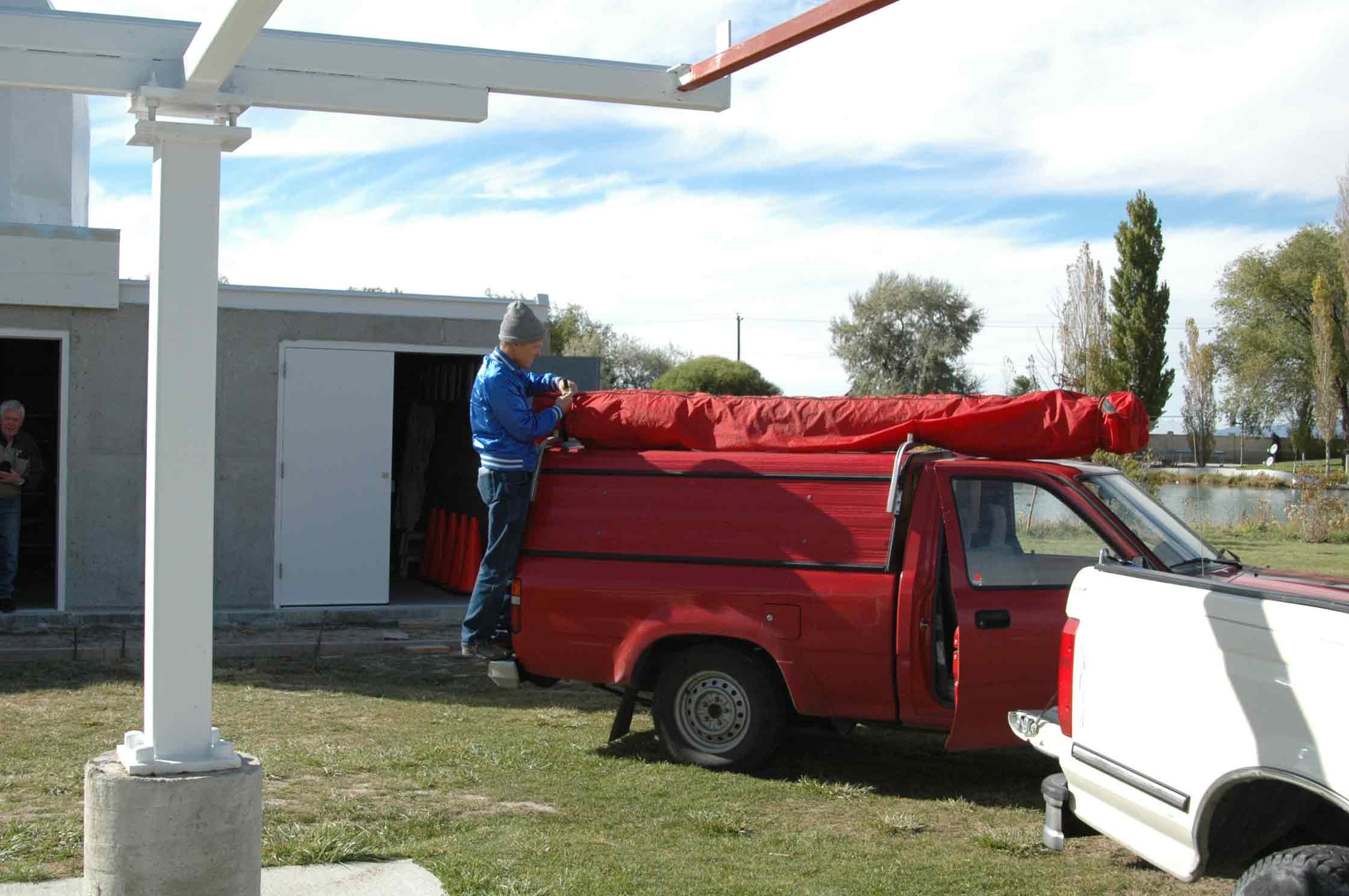

The interim tube arrives at the Refractor House.  11 OCT 2005

040

Patrick Wiggins carries the interim tube.  11 OCT 2005  Boyd McNeil image.

041

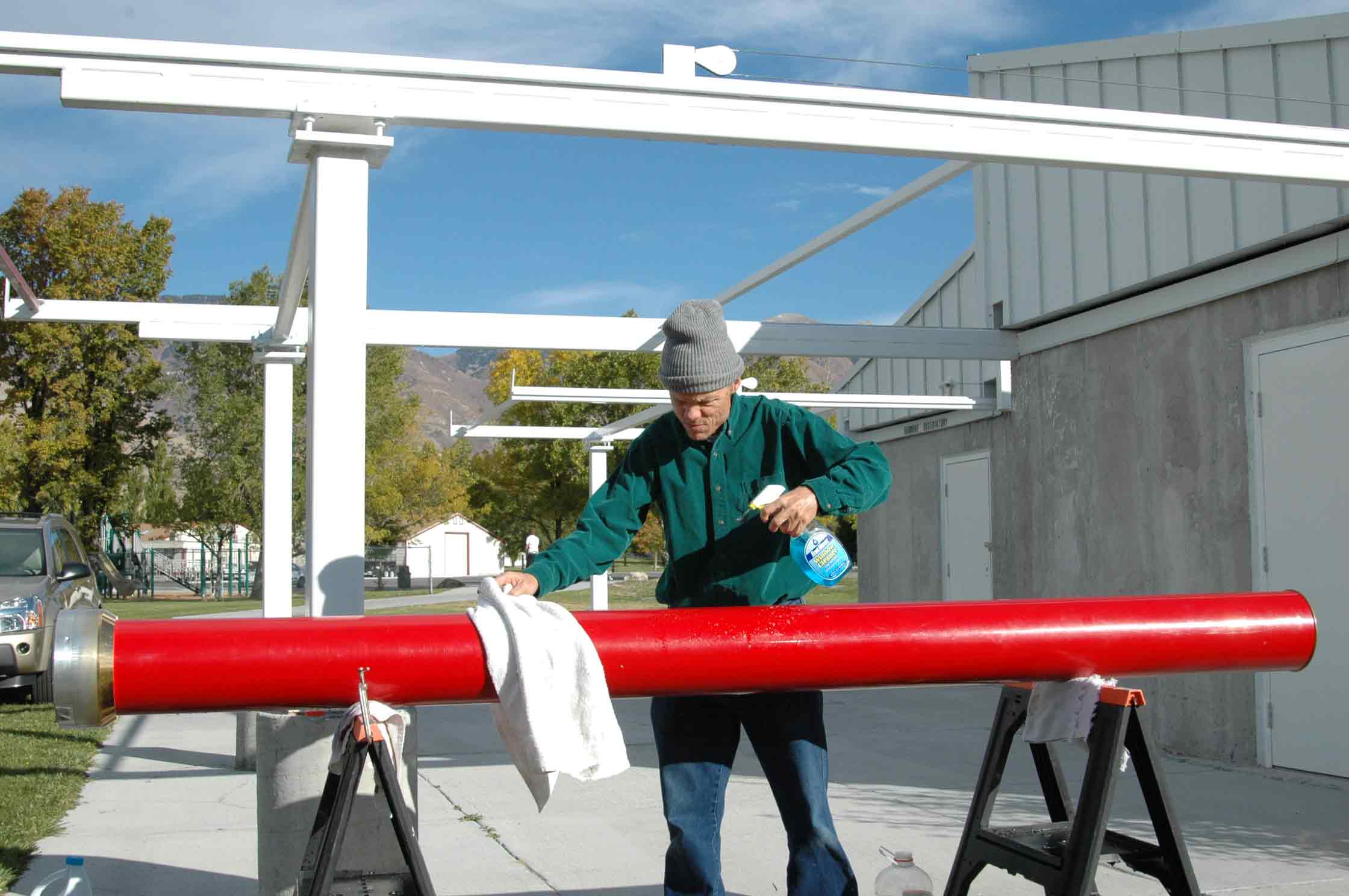

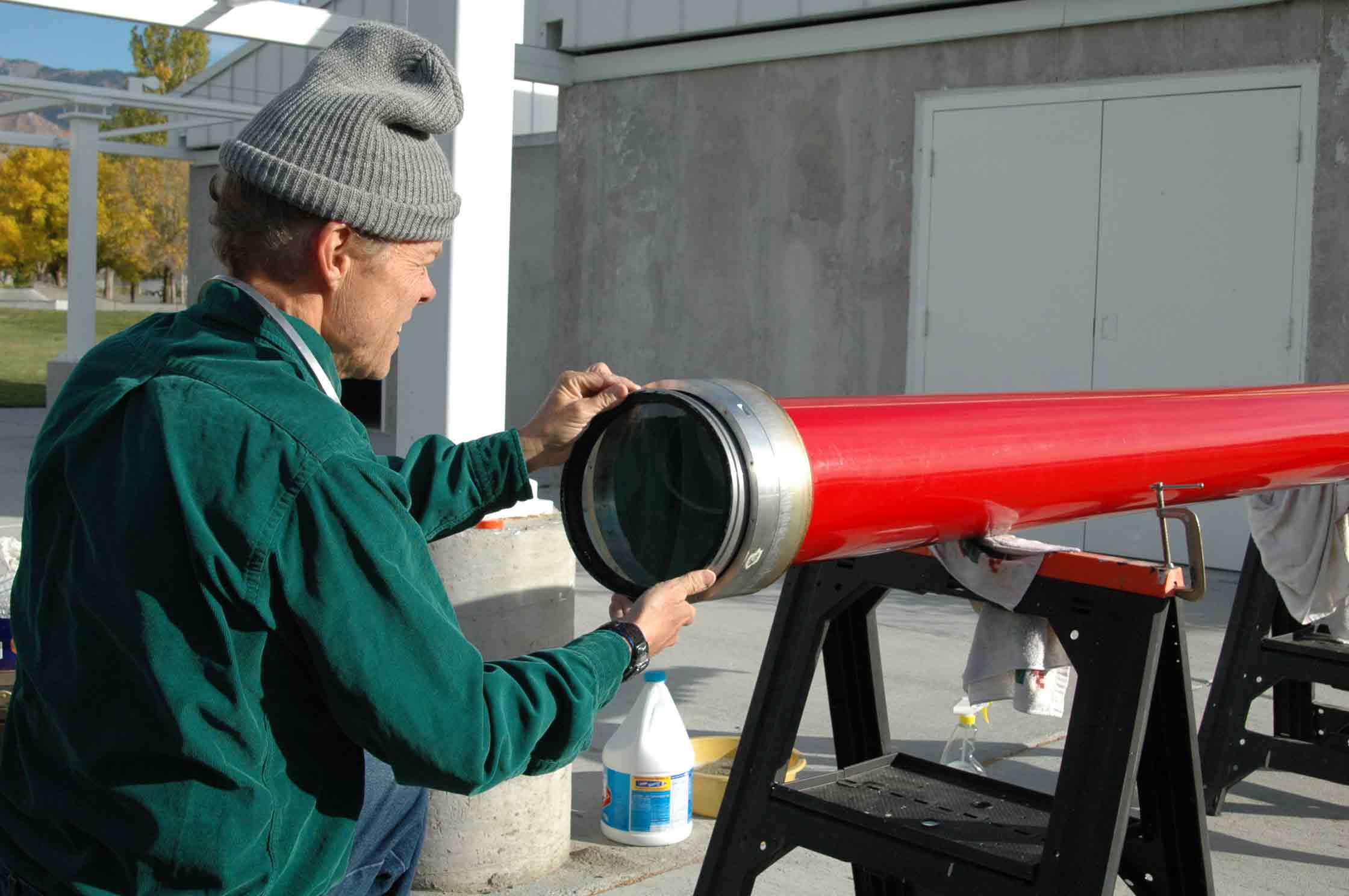

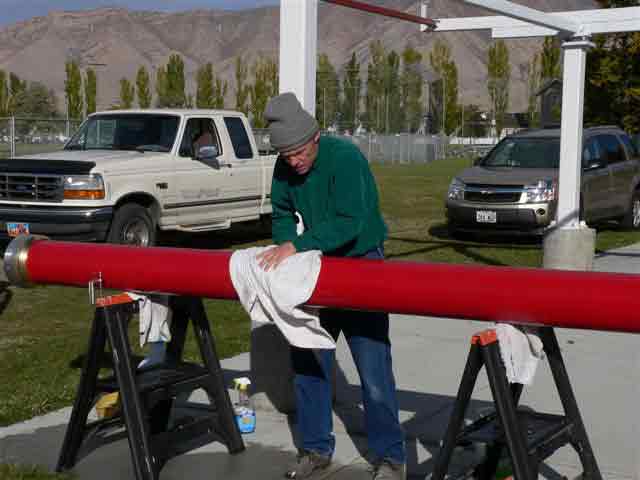

Patrick Wiggins gives the interim tube a bath.  11 OCT 2005  Boyd McNeil image.

042

Those who saw "My Big Fat Greek Wedding" will appreciate that Patrick Wiggins is using Windex to clean the tube.  11 OCT 2005

043              044
***

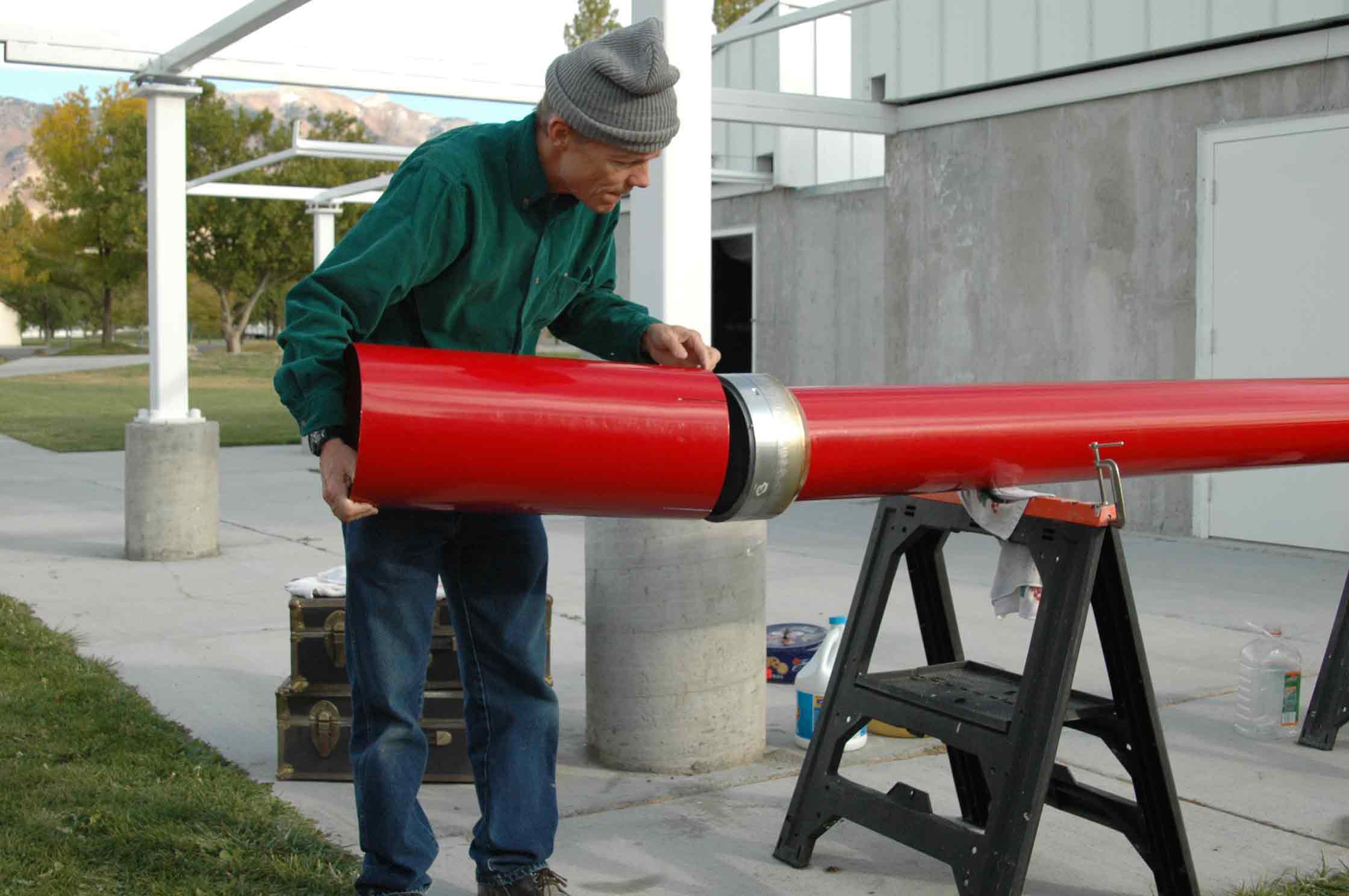

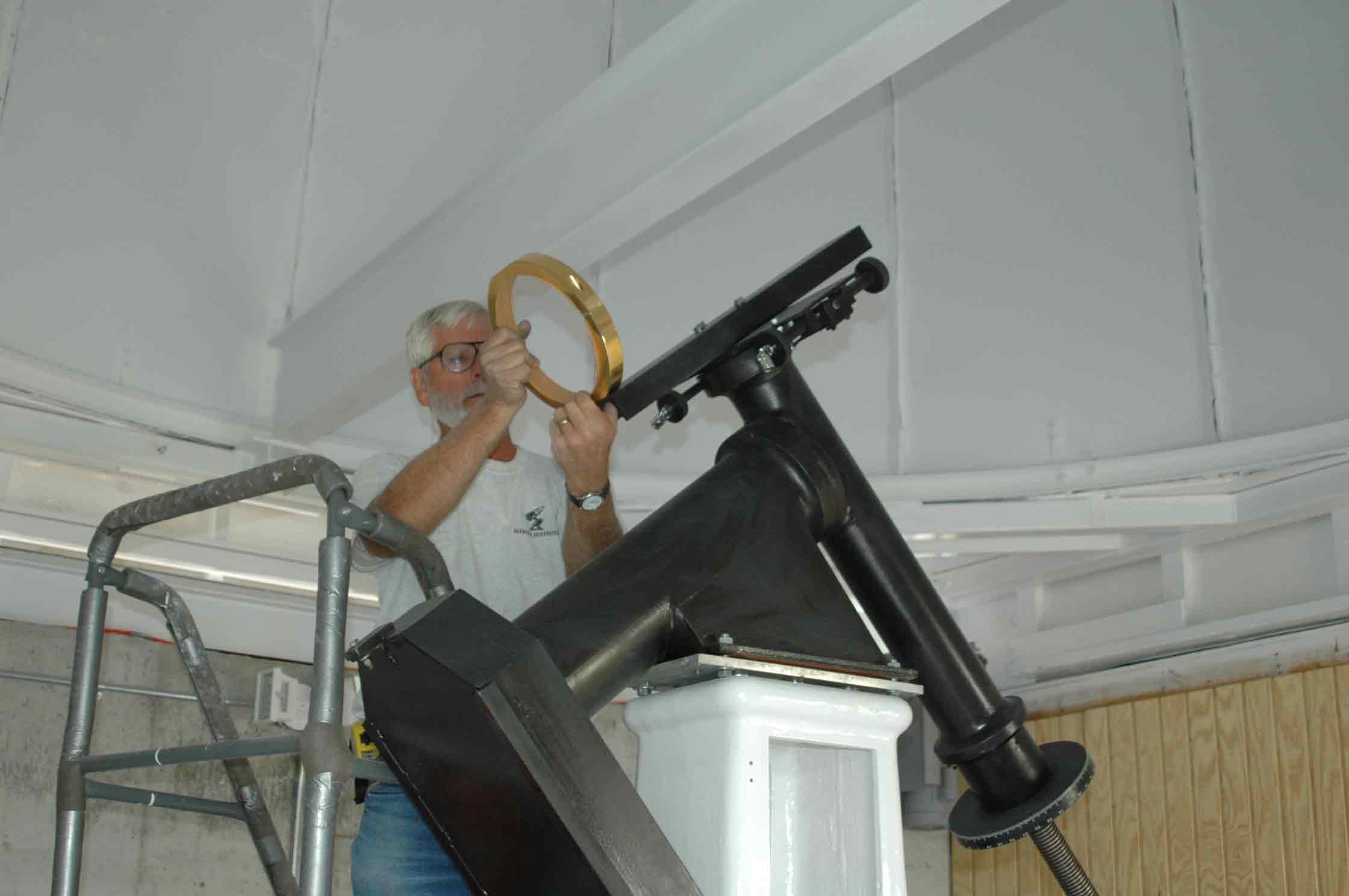

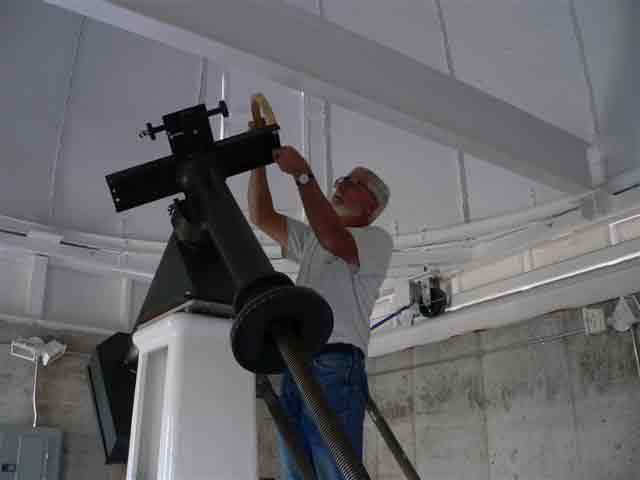

Bruce Grim installs the two gold plated tube retainer rings.  11 OCT 2005
Boyd McNeil image.

045              046              047              048
*********

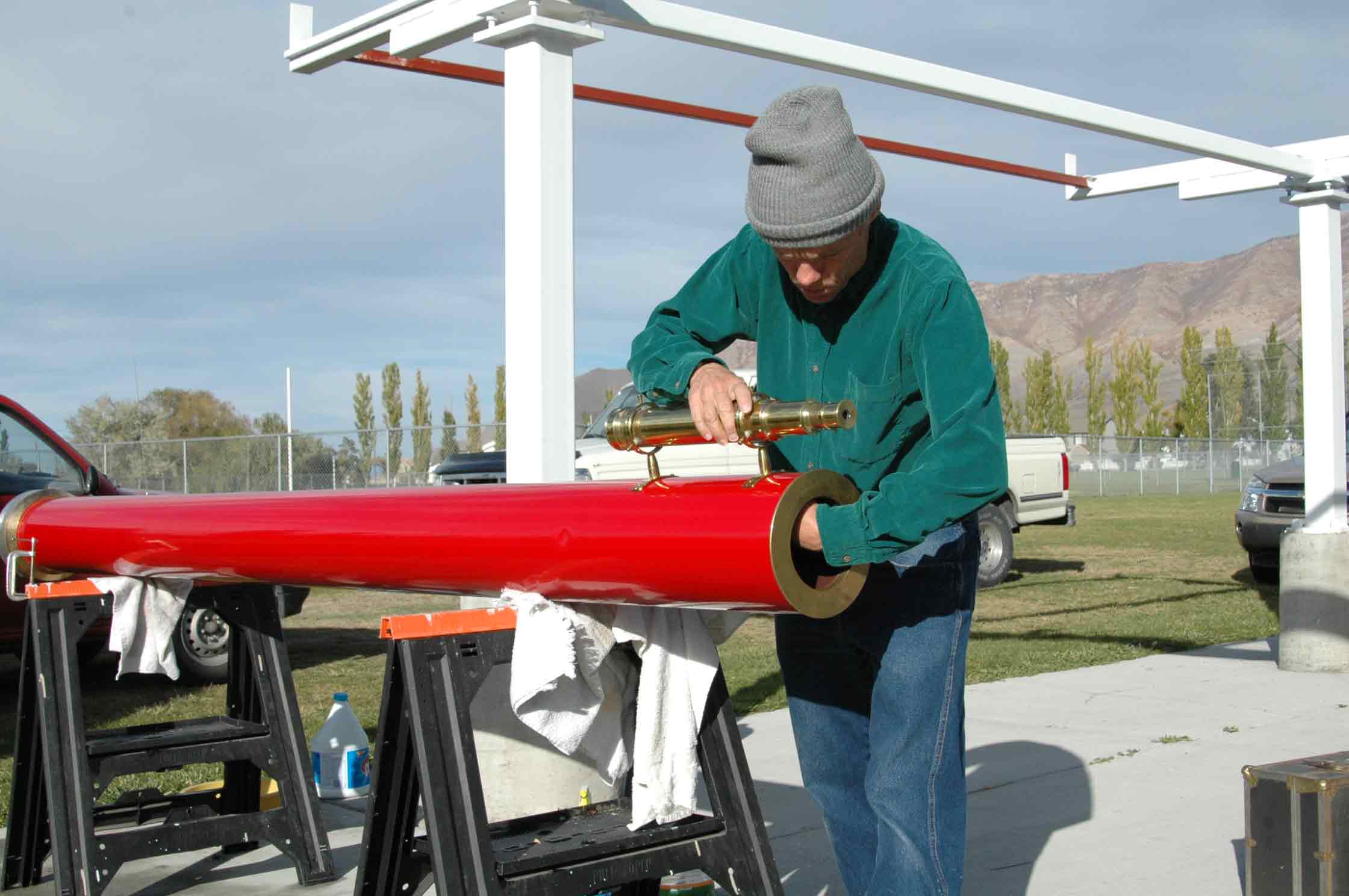

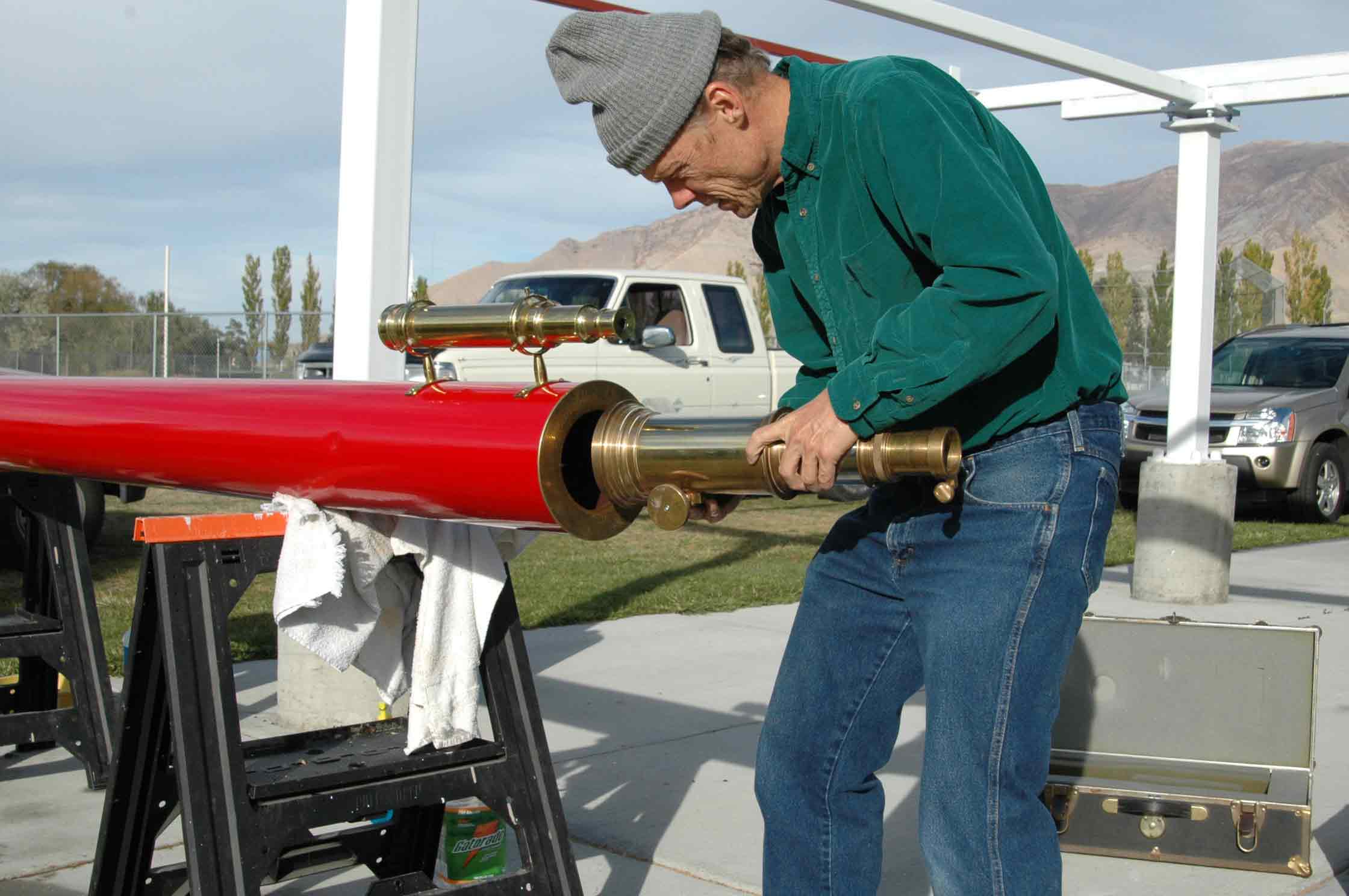

Patrick Wiggins installs the finder scope, Clark replica focuser, 200 mm f/16.8 lens and dew cap.  11 OCT 2005
