Stansbury Park Observatory Complex (SPOC)
Harmons Observatory


Constructing the 81cm (32") Grim Scope
03 DEC 2004 to 04 MAR 2005
(click on images for enlarged view)


101           102
***

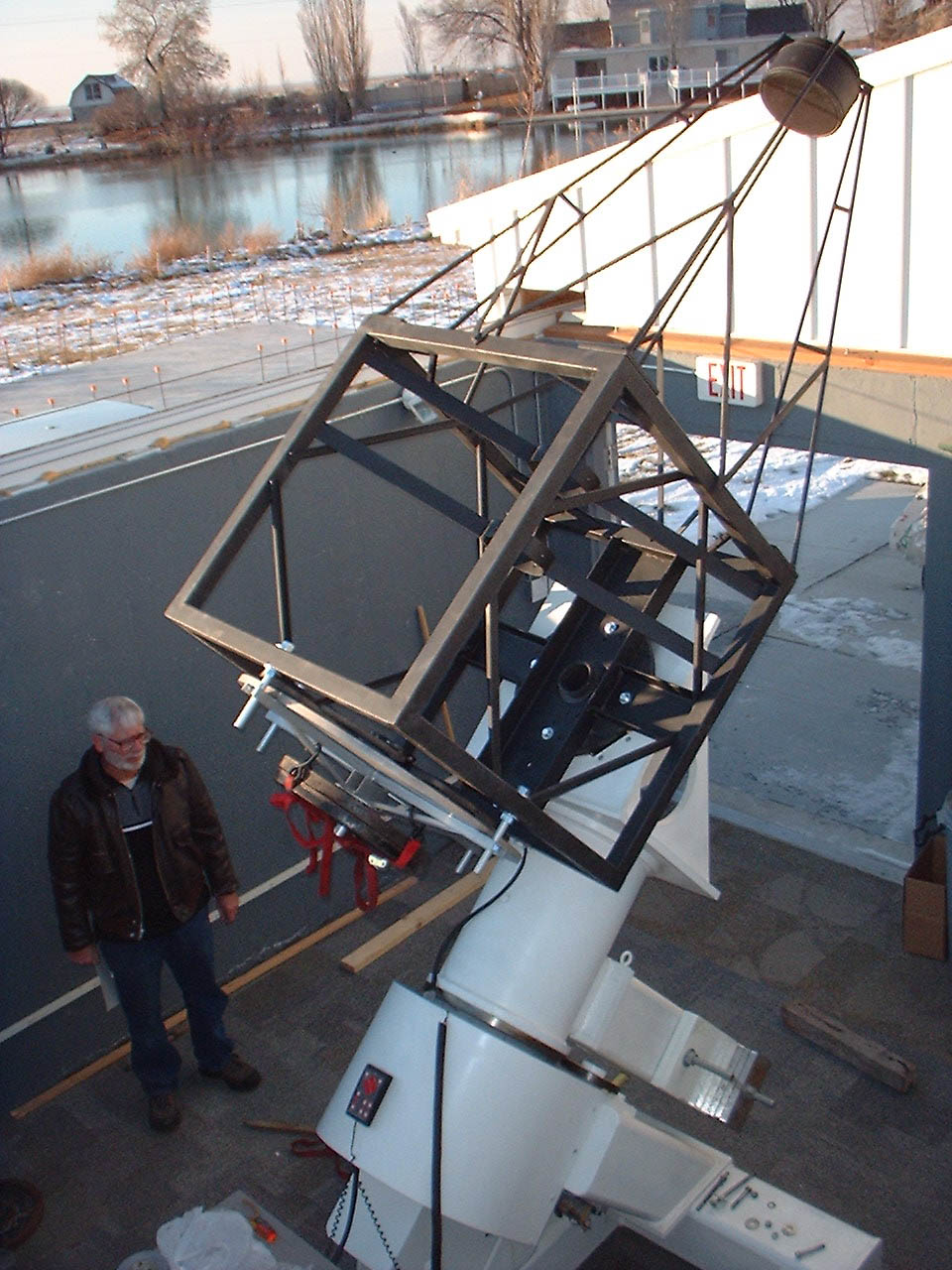

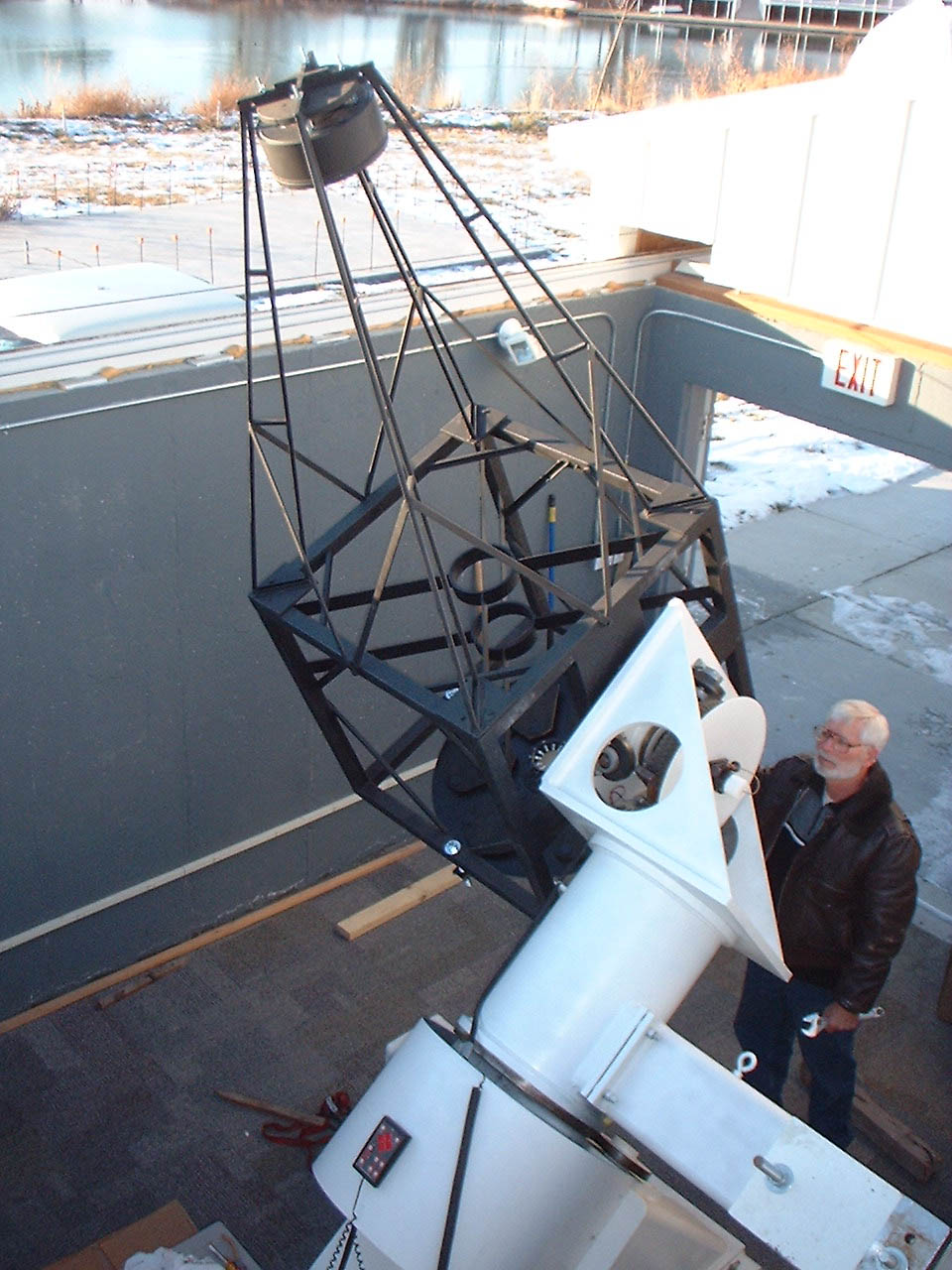

Bruce Grim with the Grim Scope pointed south and north. 03 DEC 2004

103

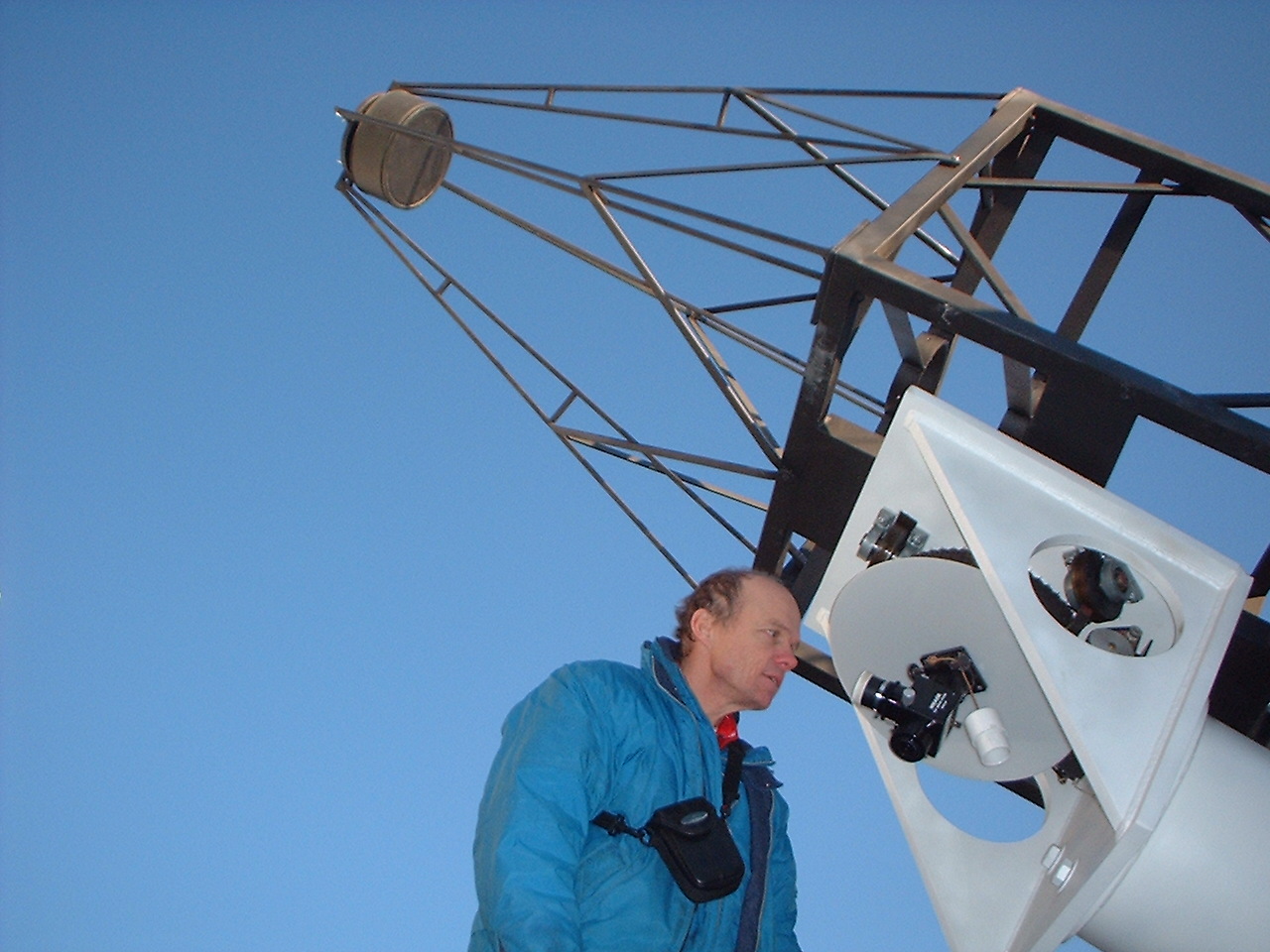

Patrick Wiggins shows how the Grim Scope will be used when completed (the eyepiece remains in one place). 03 DEC 2004

104

Nova Optics owner Steve Dodds receives payment for the primary and secondary mirrors from SPOC committee chairman Siegfried Jachmann.  11 DEC 2004  Kathleen Warner image

105

Nate Goodman, Patrick Wiggins (holding the tertiary mirror which was donated by Chuck Hards), Steve Dodds (holding the 25 cm 3x secondary mirror), Siegfried Jachmann and Mark Bloomenthal admire the new optics.  11 DEC 2004  Ron Ford image

106

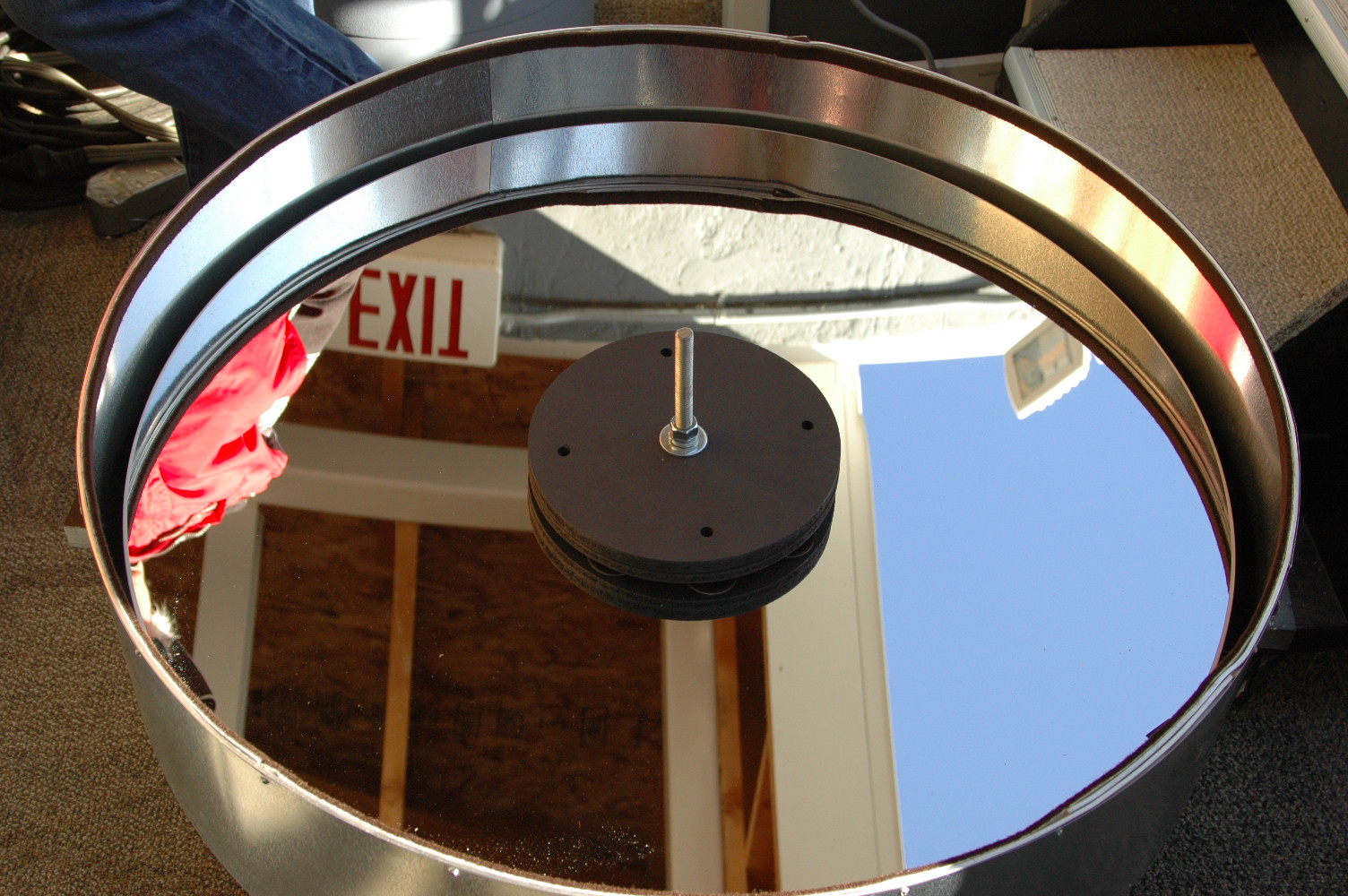

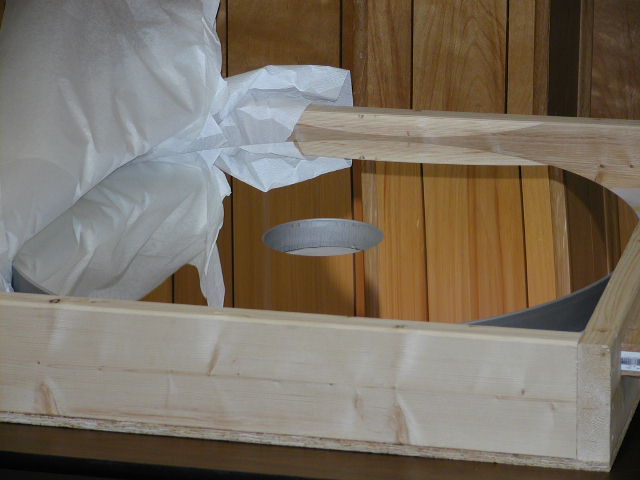

The Grim Scope's 81 cm (32") f/4 primary mirror.  11 DEC 2004  Ron Ford image

107

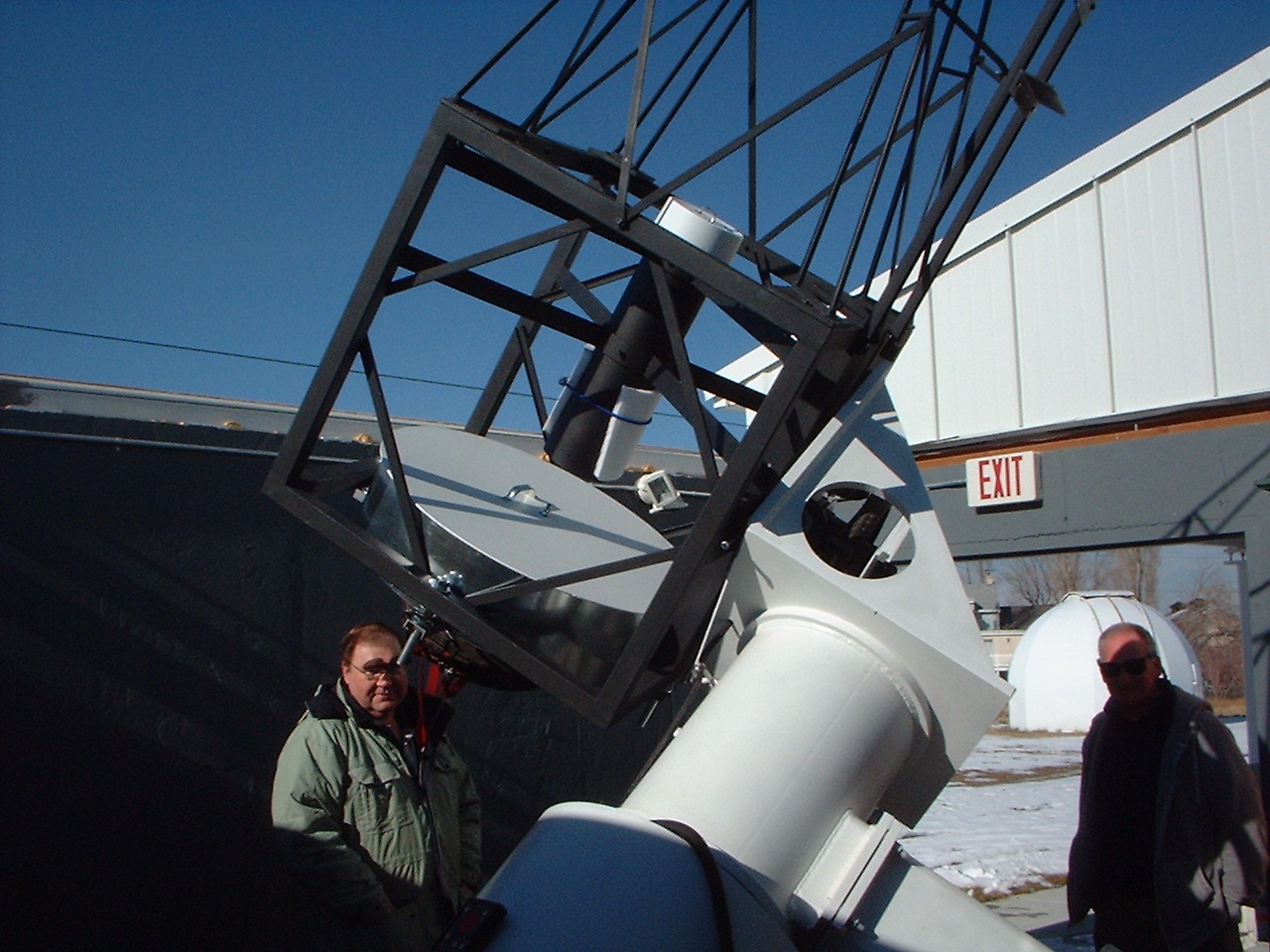

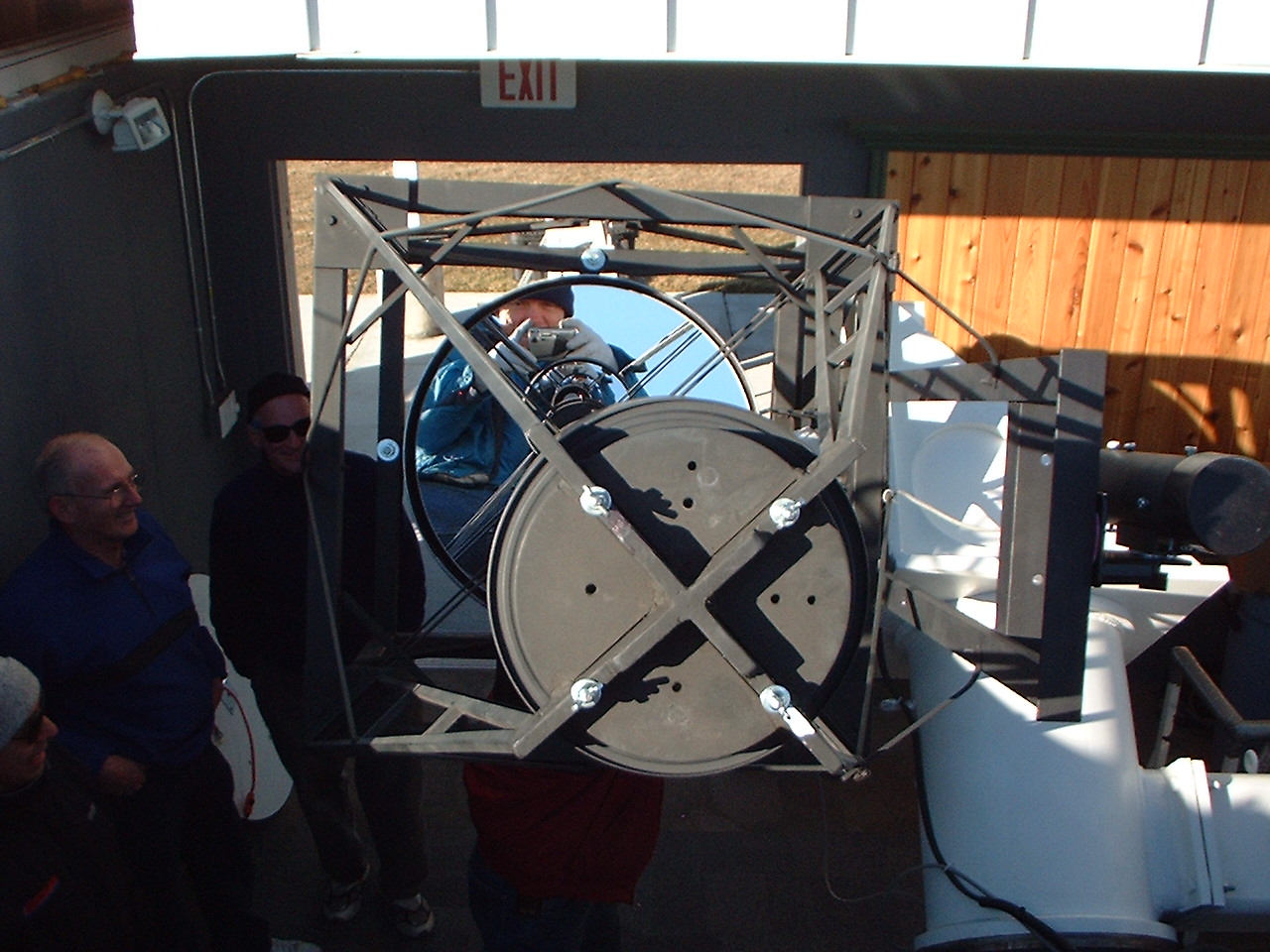

Siegfried Jachmann and Mark Bloomenthal stand next to the Grim Scope with its newly installed tertiary mirror baffle tube and primary mirror's mirror cell.  15 JAN 2005

108

Bruce Grim prepares the primary mirror cell to receive the mirror.  01 FEB 2005

109

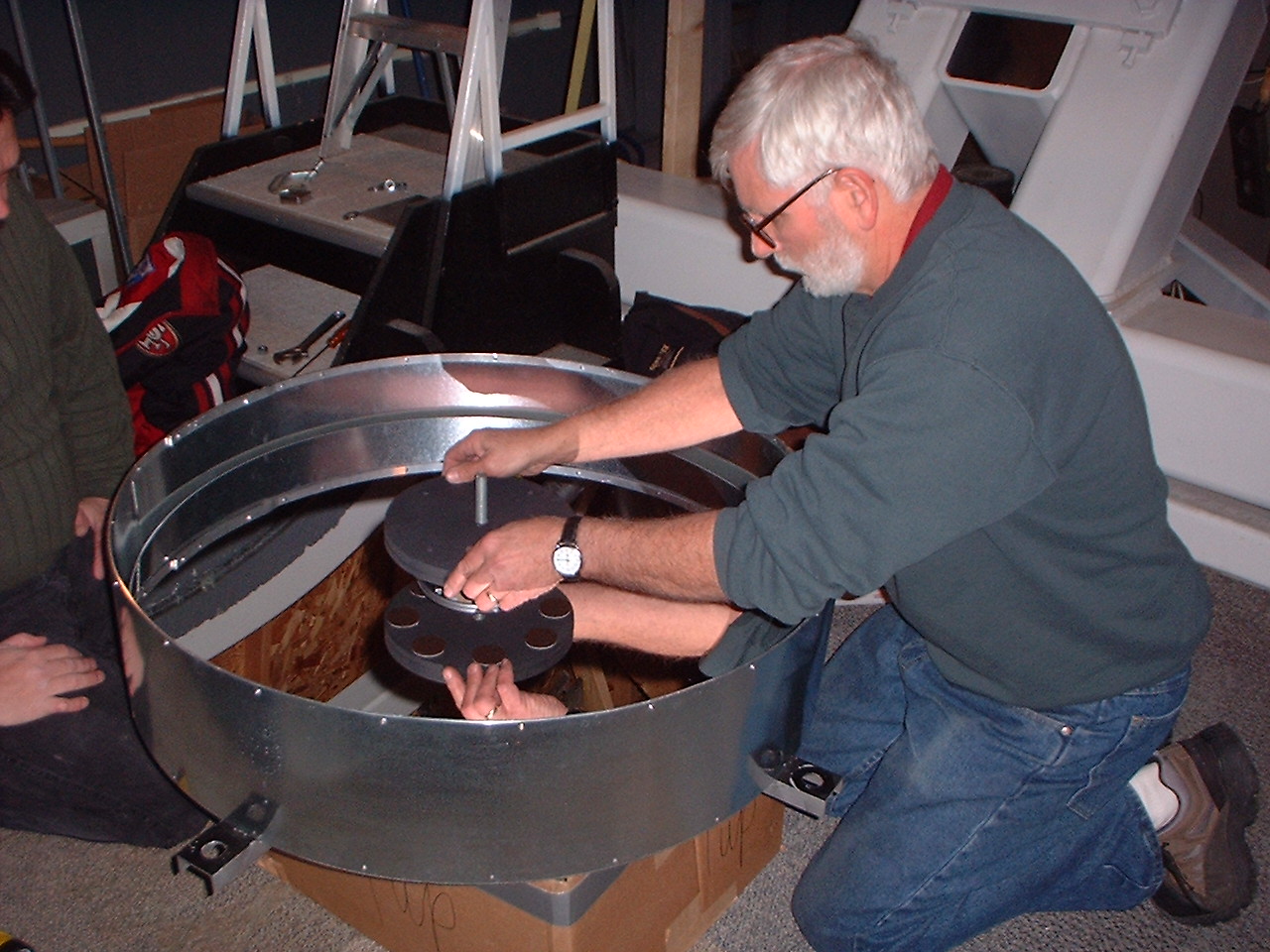

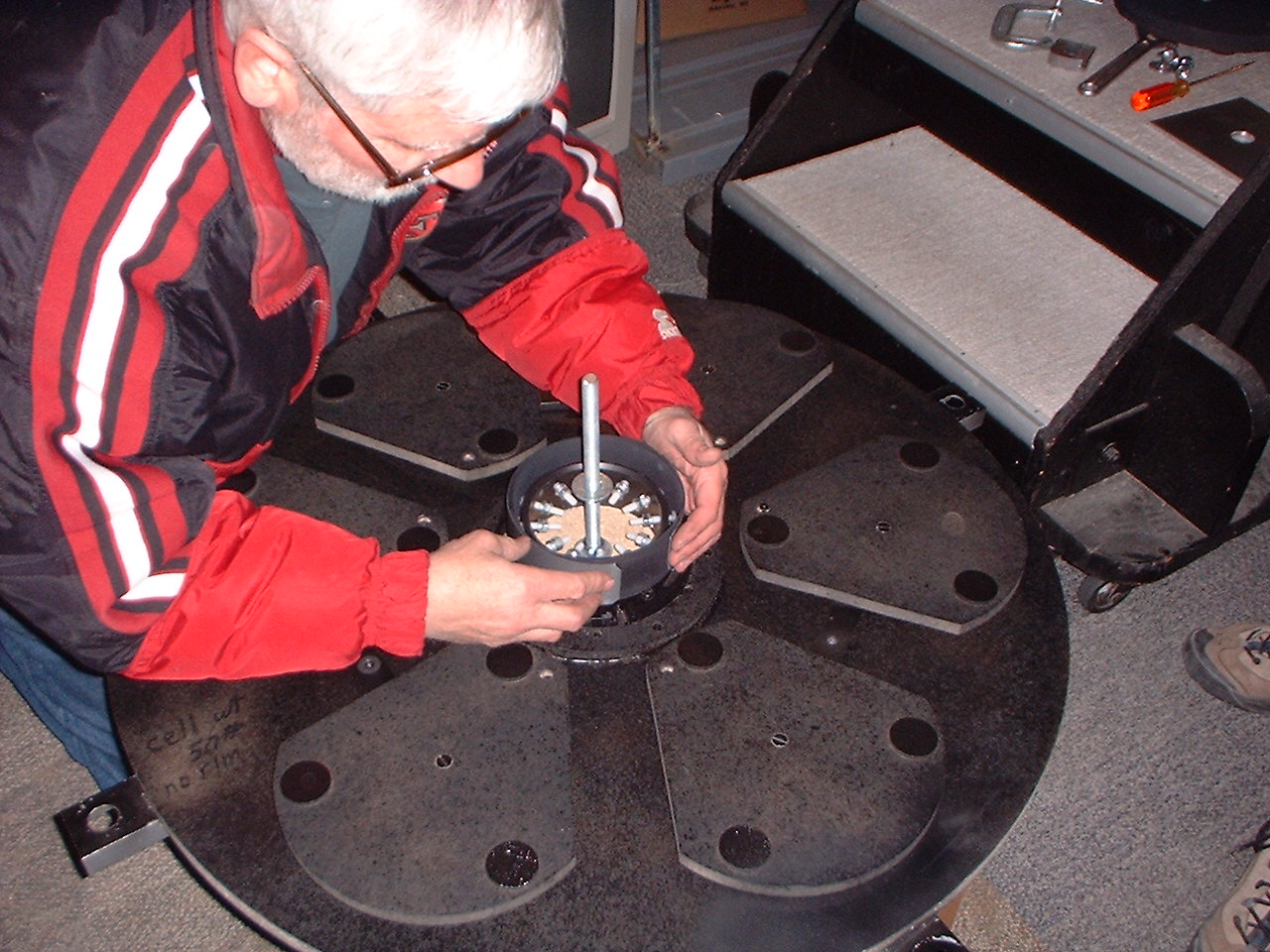

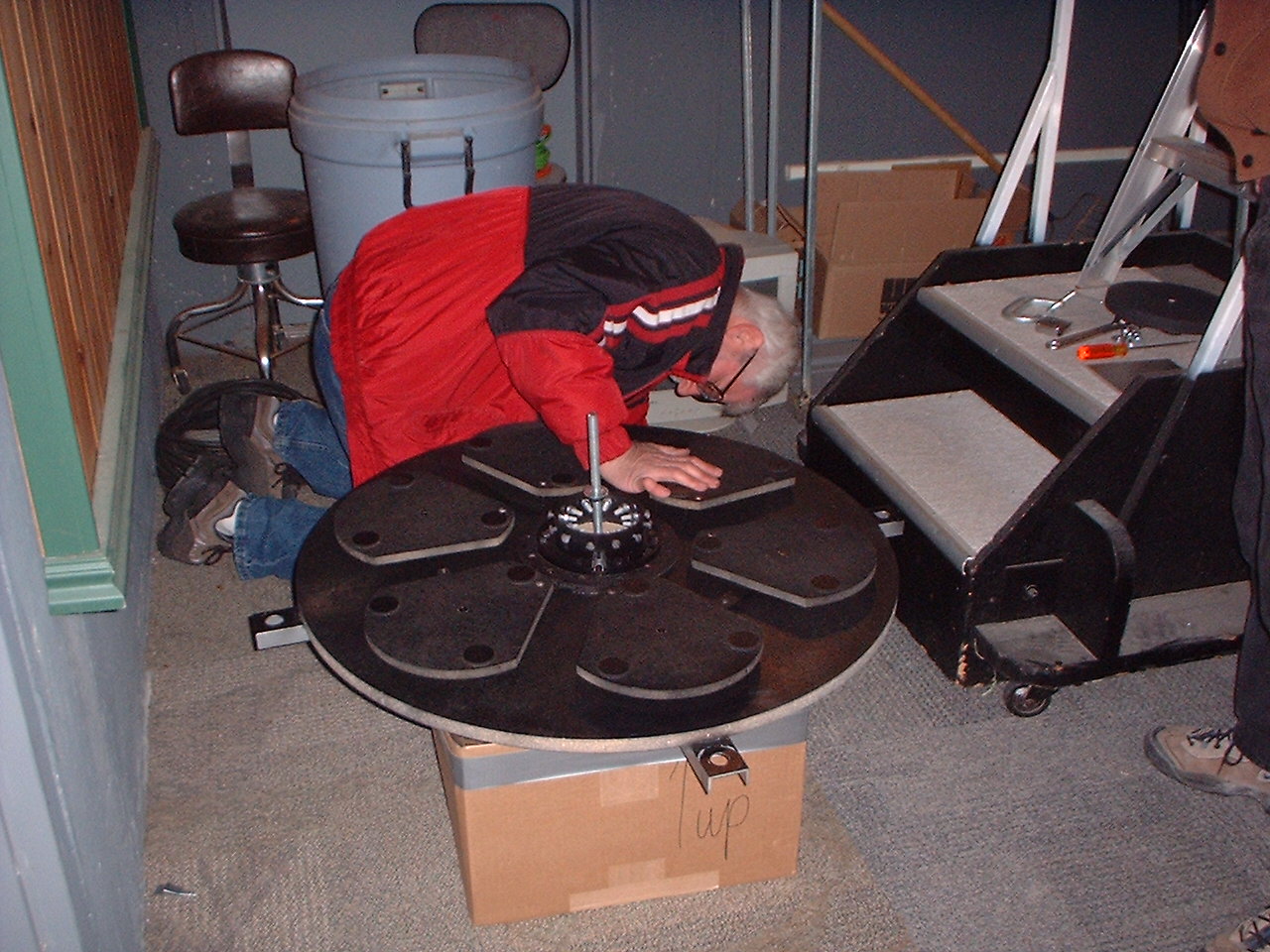

Bruce Grim installs the spacer assembly that will be used to keep the mirror centered on the cell.  01 FEB 2005

110

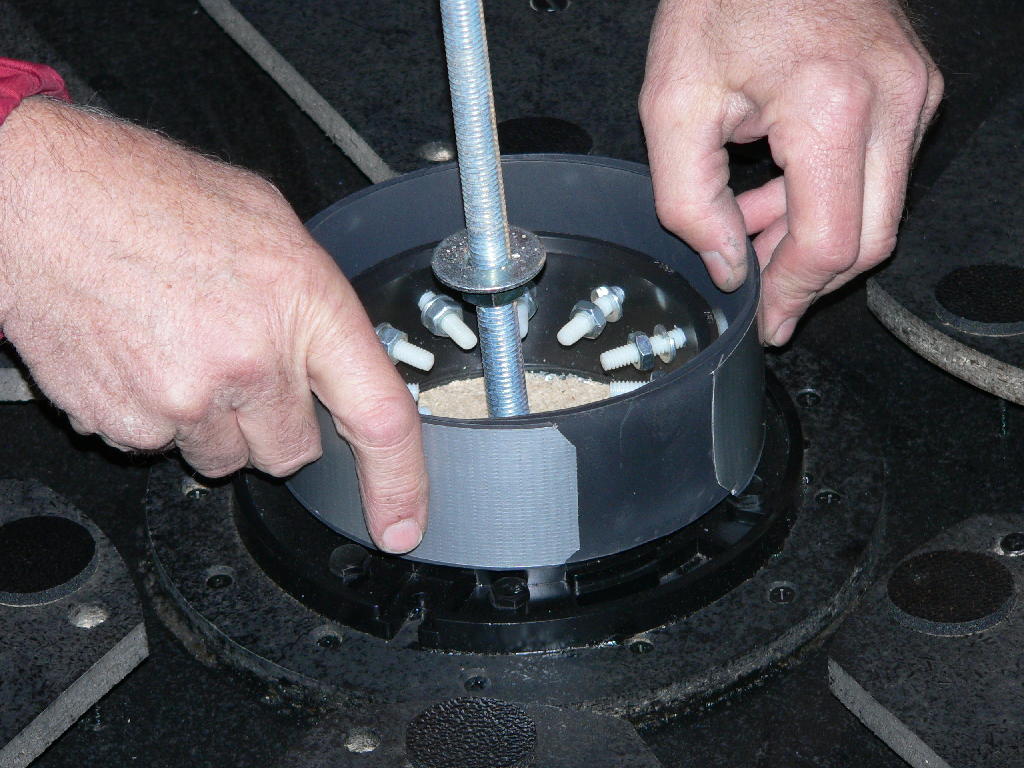

Close up of the mirror spacer assembly being installed.  01 FEB 2005  Boyd McNeil image

111

Bruce Grim and Roger Butz are careful not to trip as they bring in the primary mirror.  01 FEB 2005

112

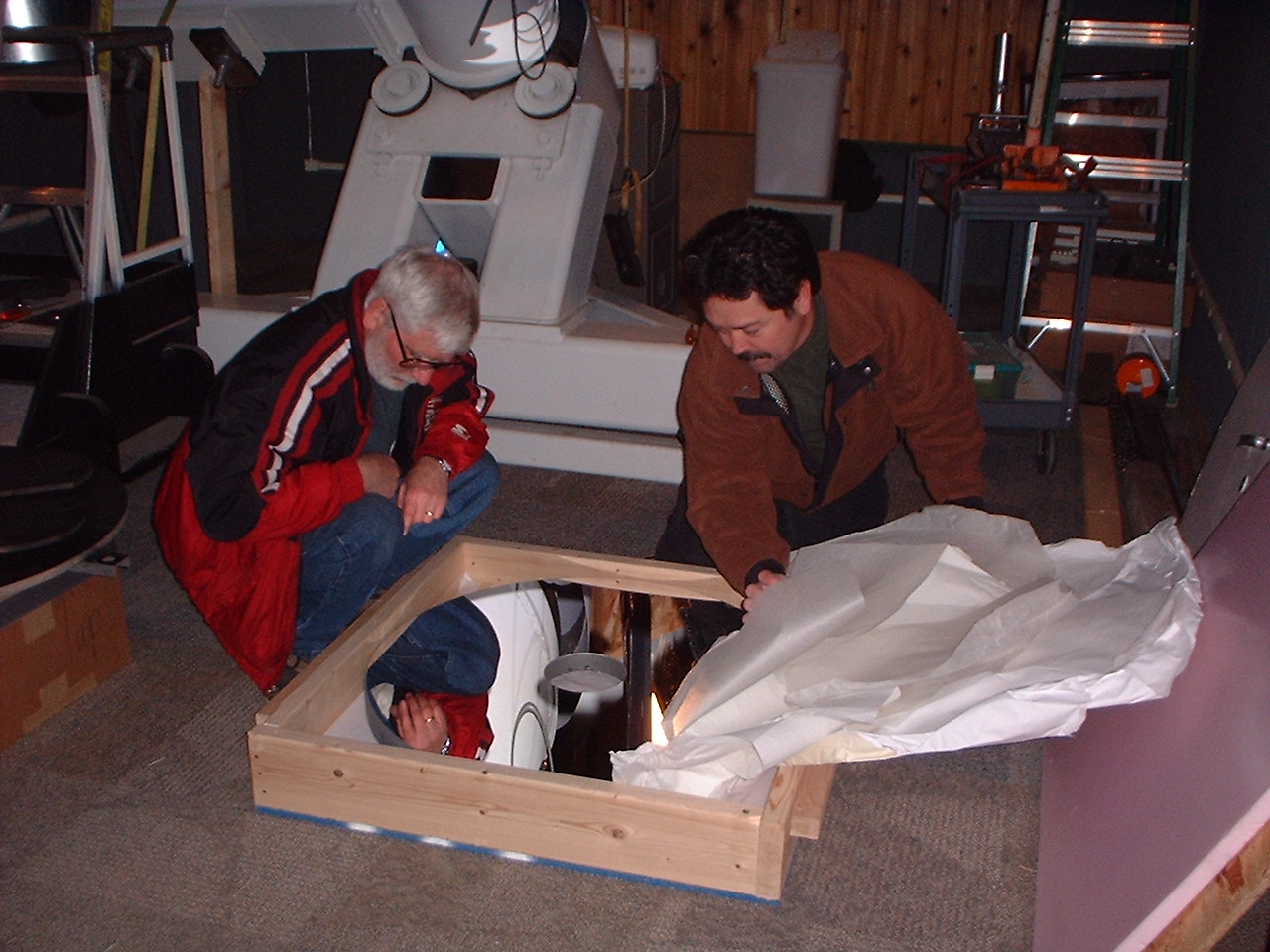

Roger Butz uncovers the primary mirror as Bruce Grim looks on.  01 FEB 2005

113

Patrick Wiggins, Bruce Grim and Roger Butz lower the primary mirror gingerly onto it cell.  01 FEB 2005  Boyd McNeil image

114

Several nylon bolts are screwed out against the spacer assembly to keep the mirror centered on its cell.  01 FEB 2005  Boyd McNeil image.

115

Roger Butz and Bruce Grim install the primary mirror cell's dust collar.  01 FEB 2005

116

Roger Butz is careful not to drop the wrench as he tightens the primary mirror cell's center bolt.  01 FEB 2005

117

Bruce Grim installs the primary mirror retainer.  01 FEB 2005

118

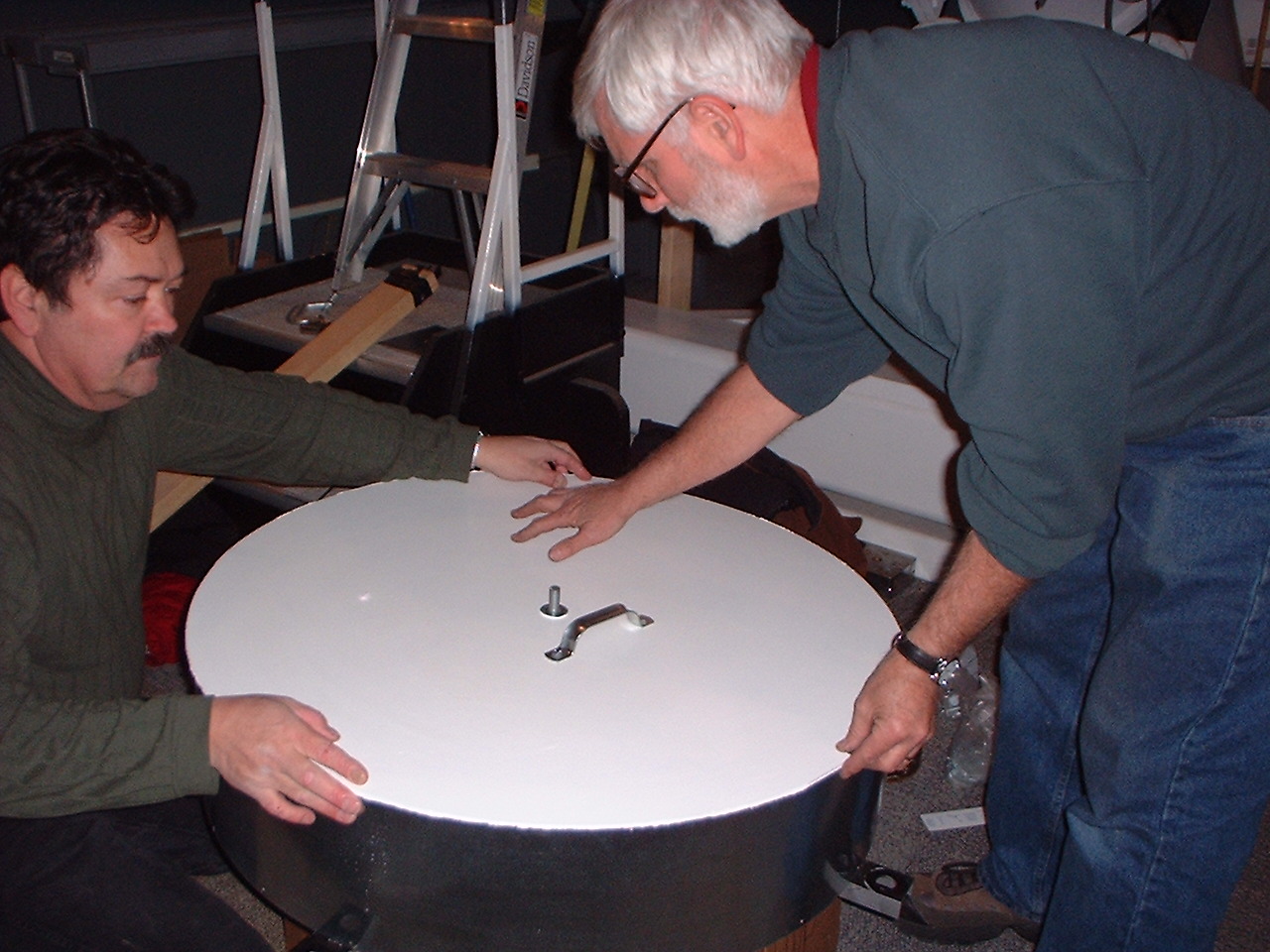

Roger Butz and Bruce Grim install the primary mirror's dust cover.  01 FEB 2005

119

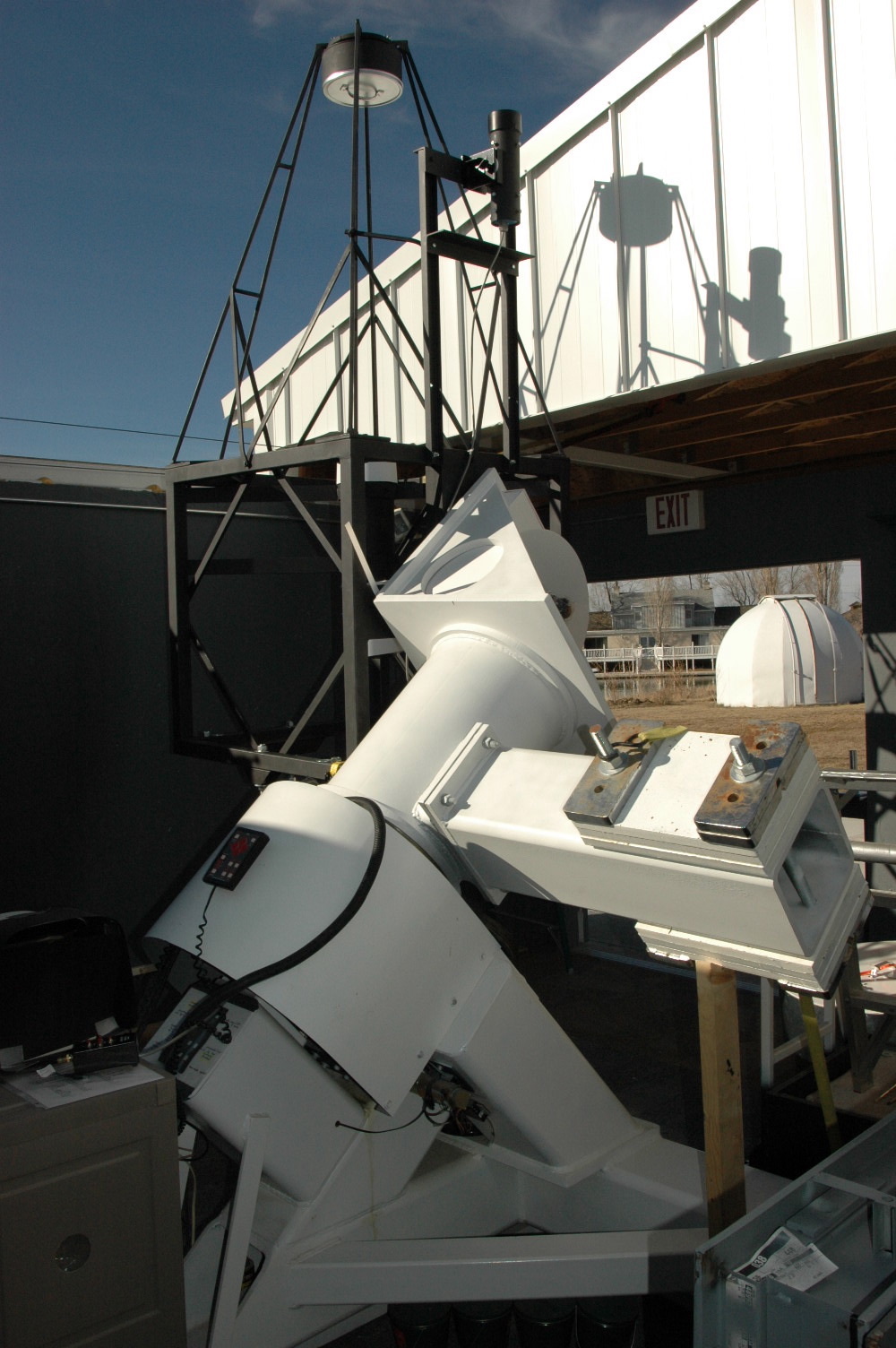

A new day dawns and the scope is ready for installation of the primary.  02 FEB 2005  Ron Ford image

120

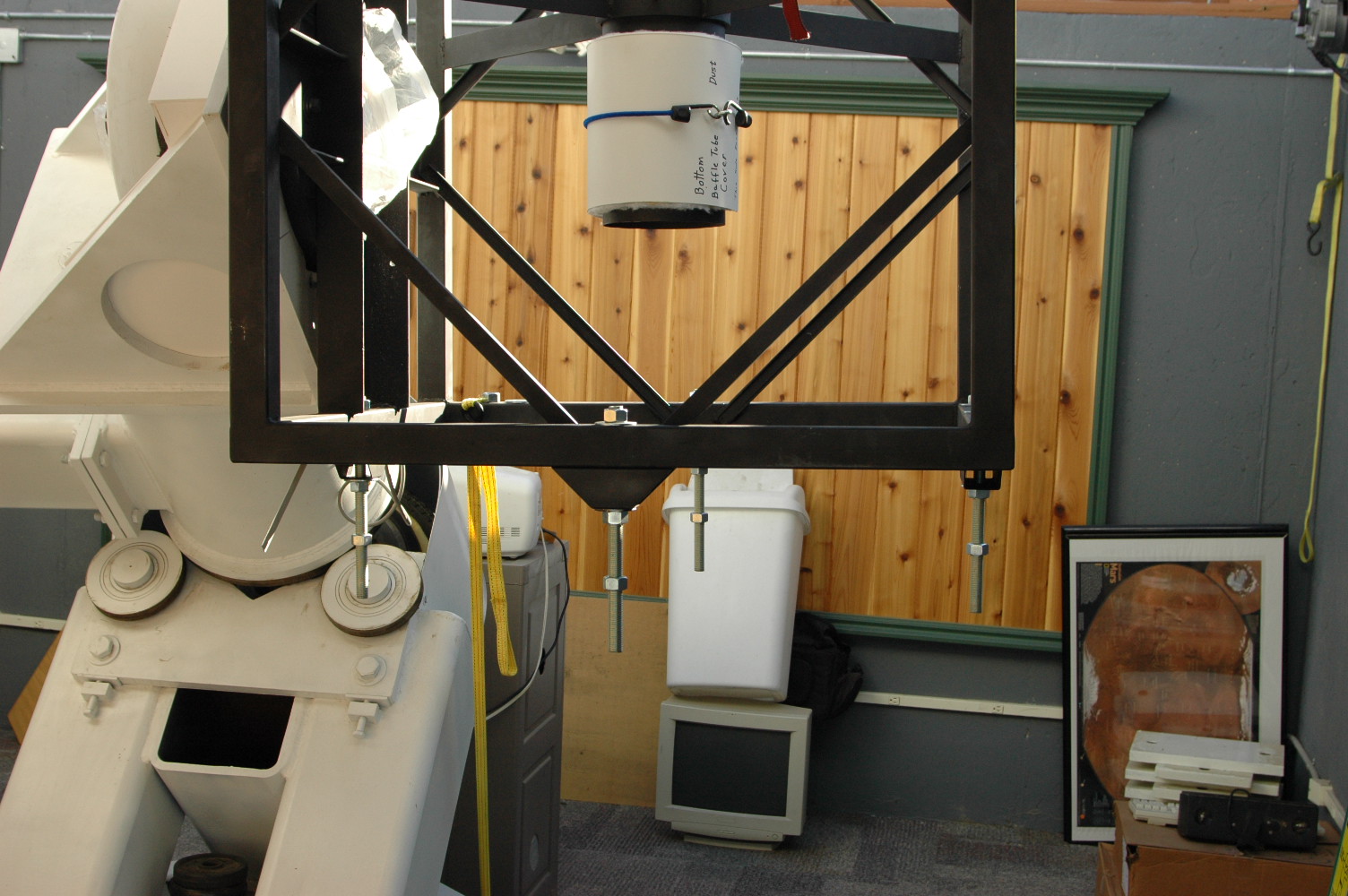

The scope awaits installation of the primary.  02 FEB 2005  Ron Ford image

121

Dust cover removed and ready to be installed.  02 FEB 2005  Ron Ford image

122

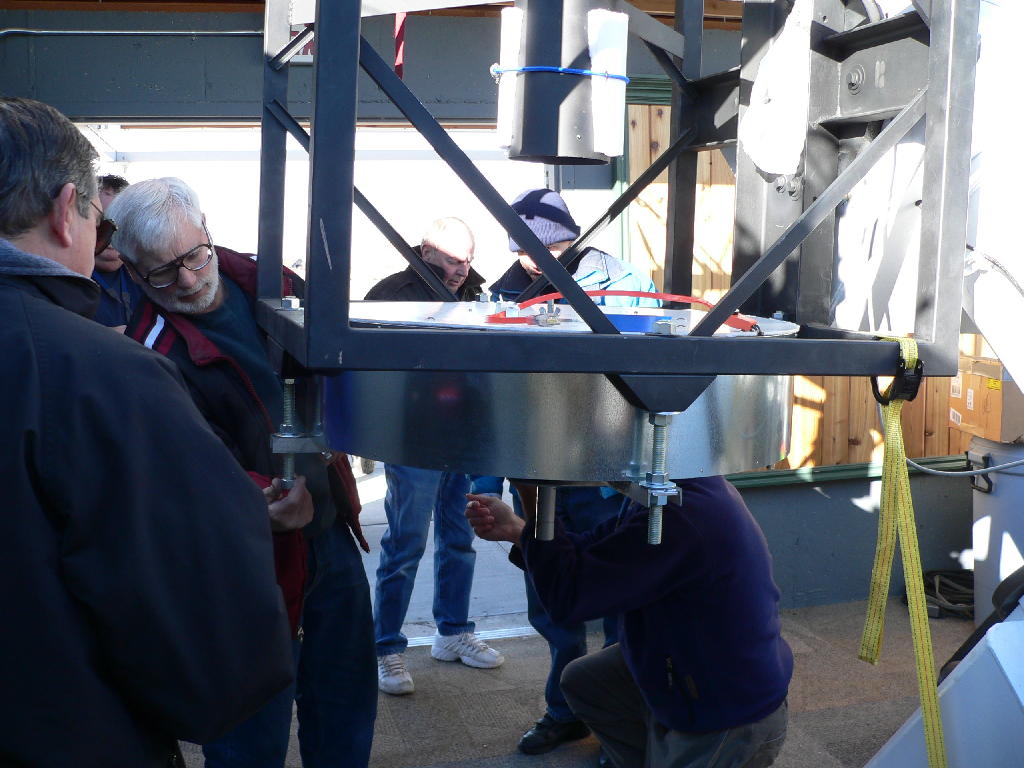

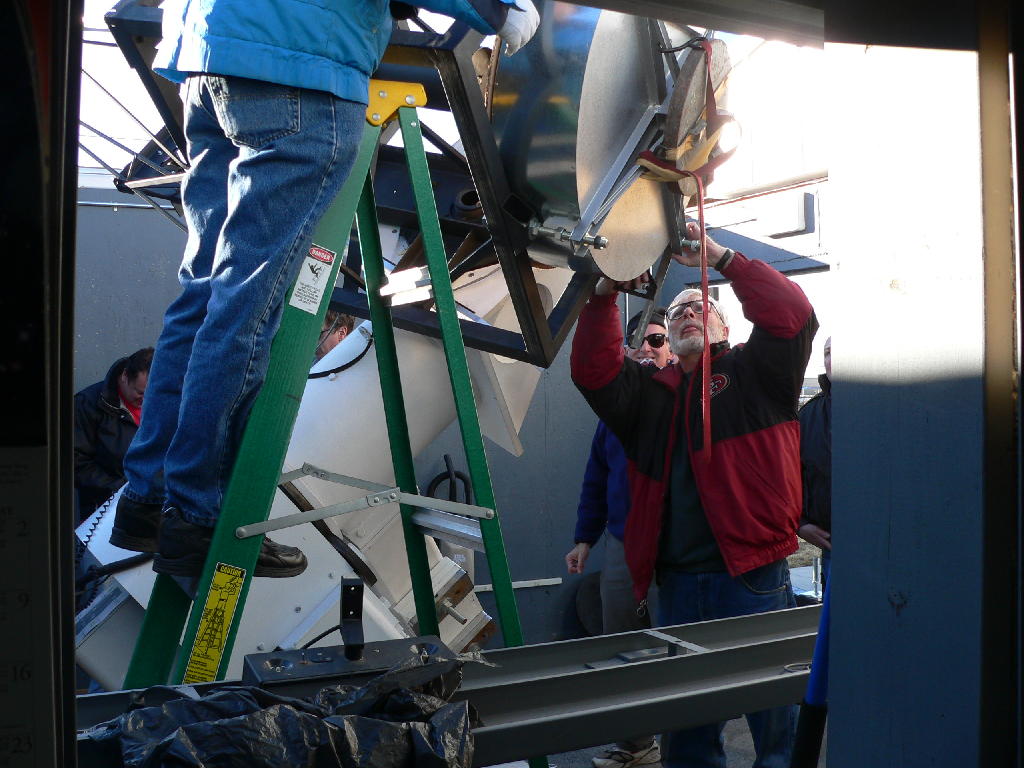

The primary mirror is lifted into place.  02 FEB 2005  Boyd McNeil image

123

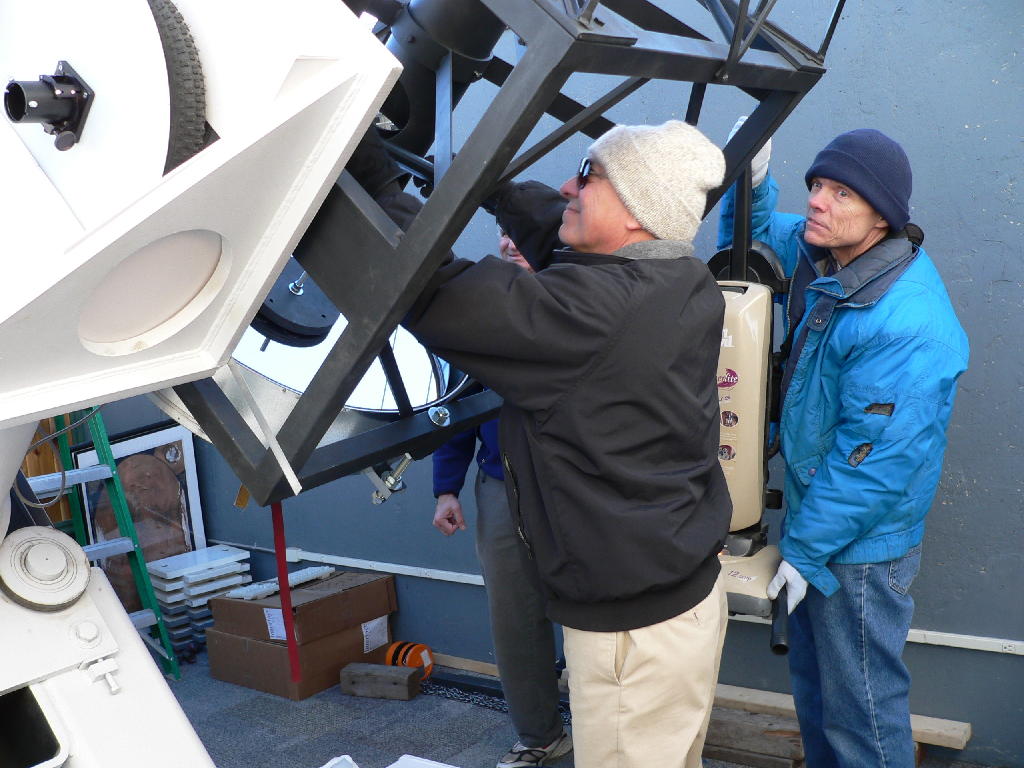

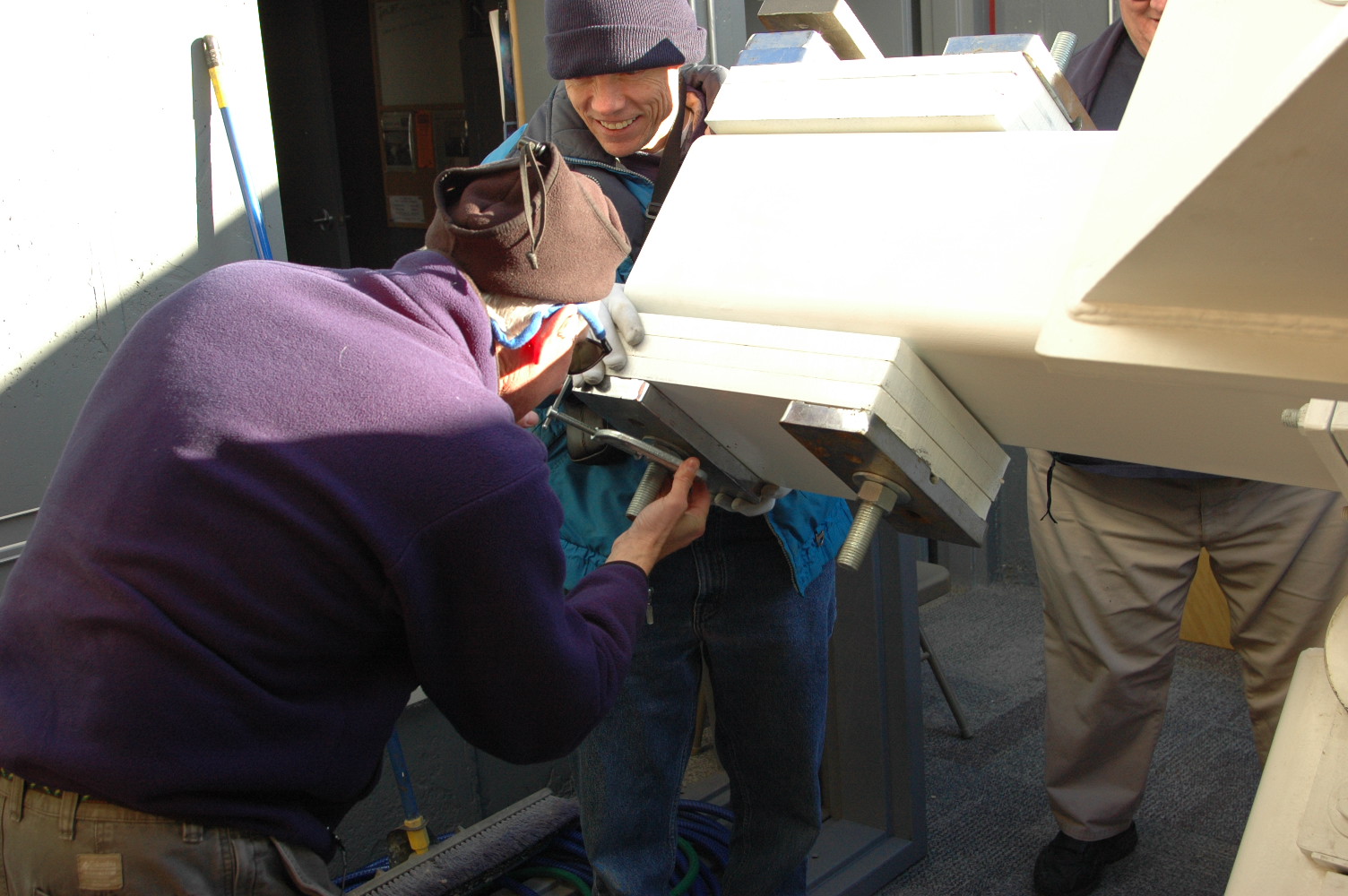

Bruce Grim adds one of the primary mirror cell's adjustment bolts.  02 FEB 2005  Boyd McNeil image

124

Mark Bloomenthal adds a counterweight.

125

Ken Harris and Patricia Wiggins vacuums metal shavings found uncomfortably near the primary mirror.  02 FEB 2005  Boyd McNeil image

126

Bruce Grim gets started on collimation (a tongue sticking out indicates extreme concentration).   02 FEB 2005  Boyd McNeil image

127

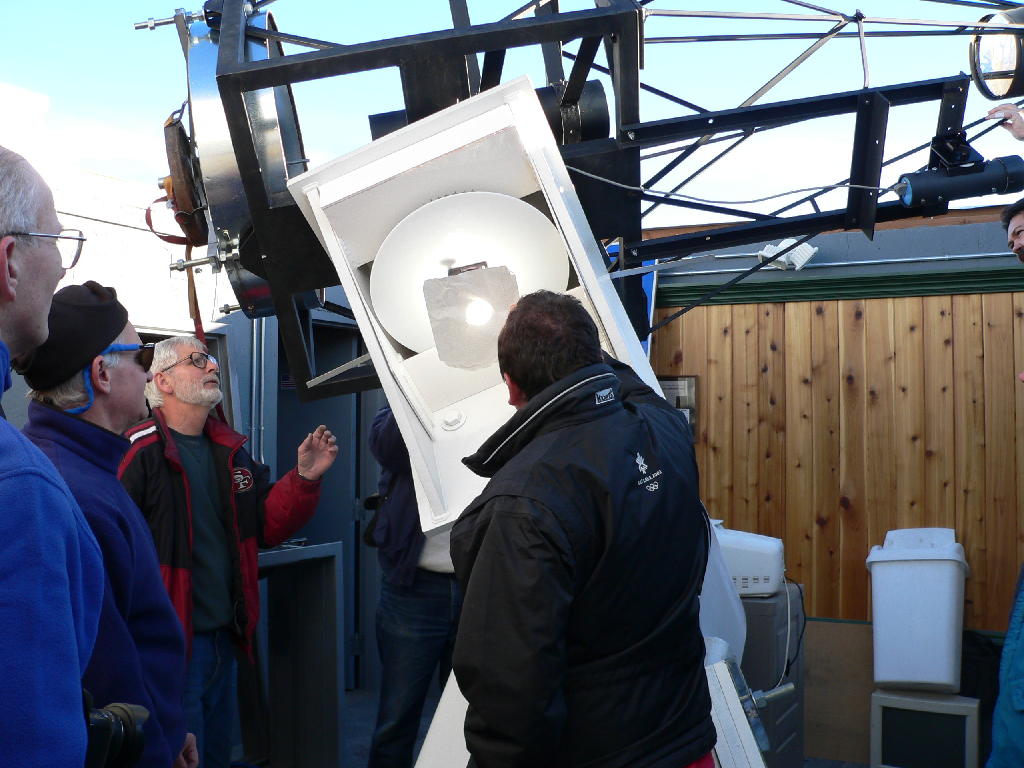

Steve Dodds checks the light cone emerging from the read of the Grim Scope.  02 FEB 2005  Boyd McNeil image

128

Looking past the secondary mirror and into the primary.  02 FEB 2005

129-132 First Peeks (SLAS president Jachmann "decreed" it would not be First Light until he'd had a look.)
02 FEB 2005

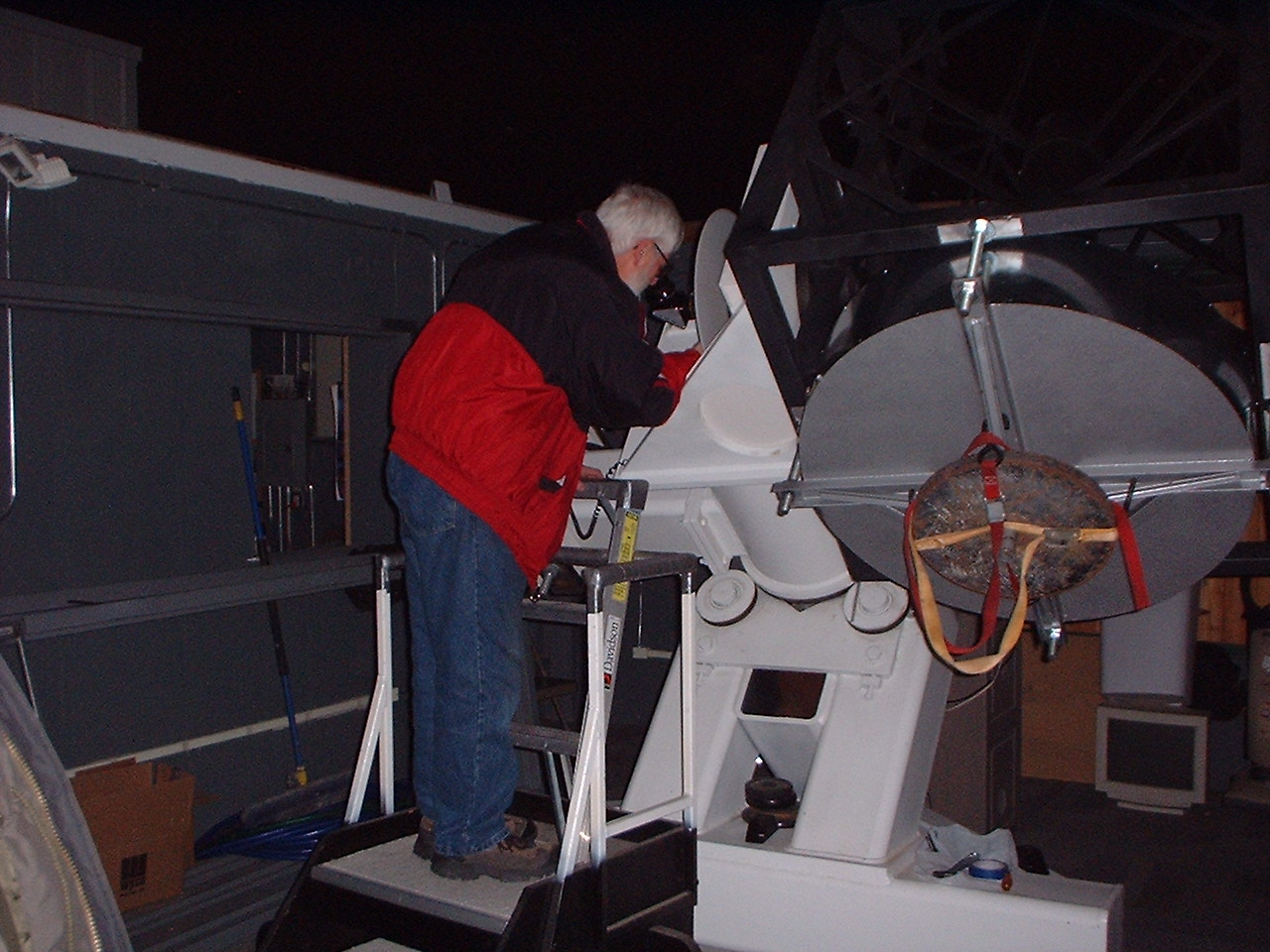

129

Bruce Grim.

130

Alpine Stringham.

131

Roger Butz.

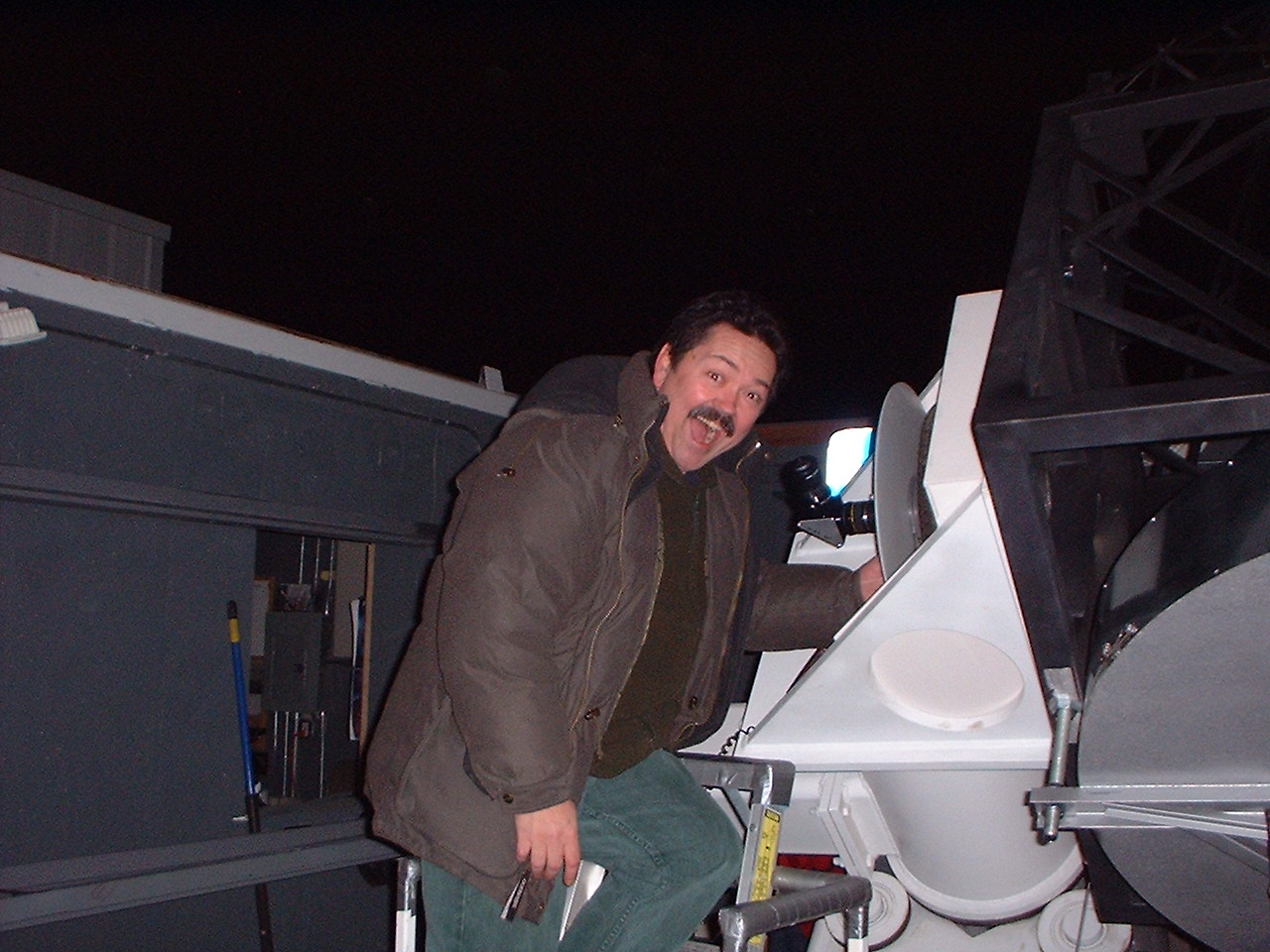

132

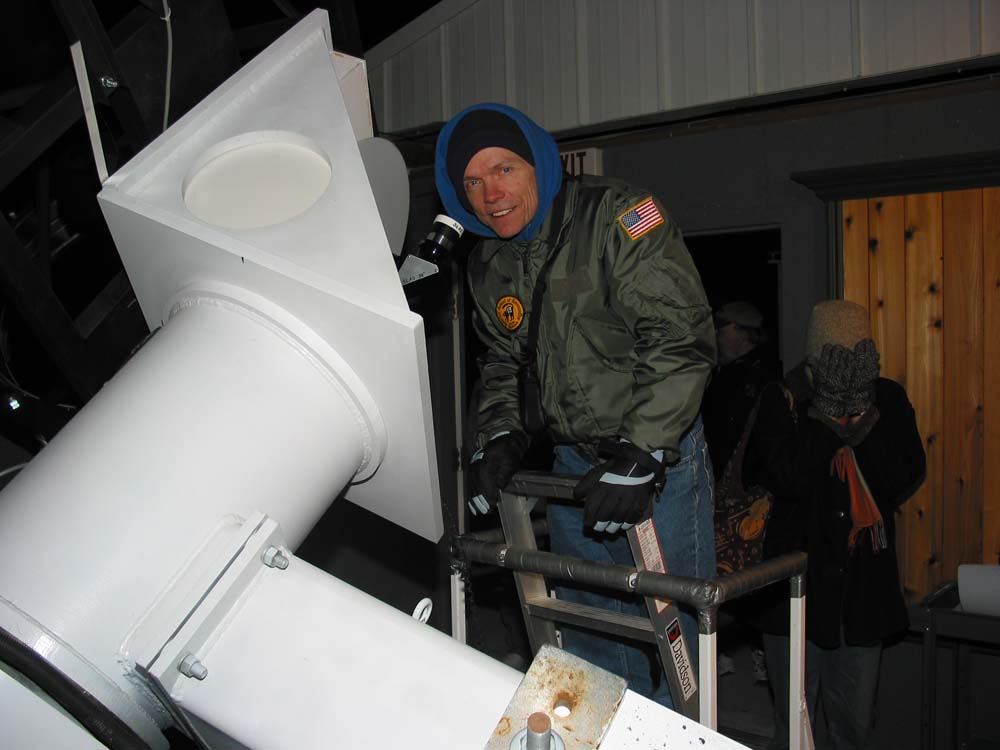

Patrick Wiggins.

133-147  Official First Light Night. 03 FEB 2005  Images 134-147 by Siegfried Jachmann

133

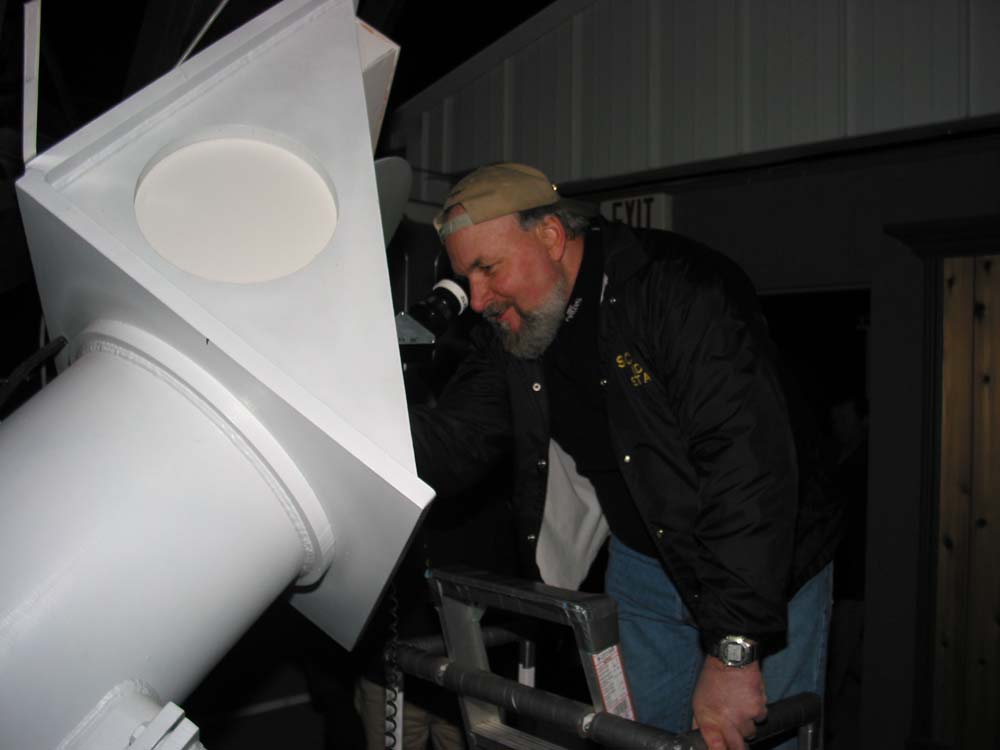

Joe Bauman (SLAS member and Deseret News reporter) interviews Siegfried Jachmann.

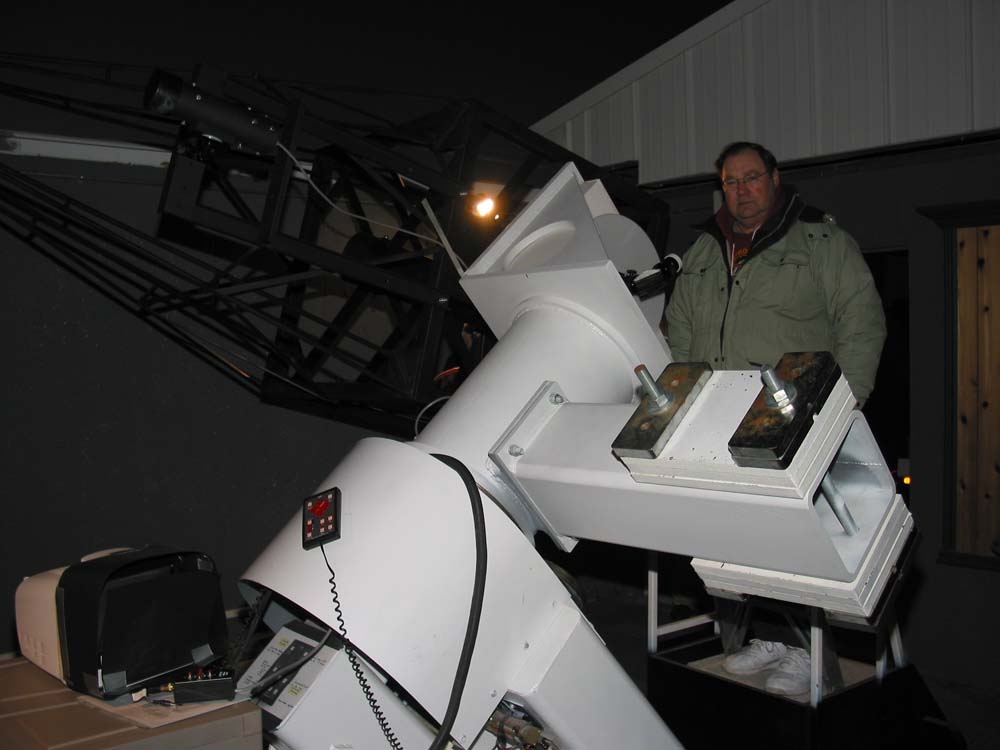

134

Bruce Grim.

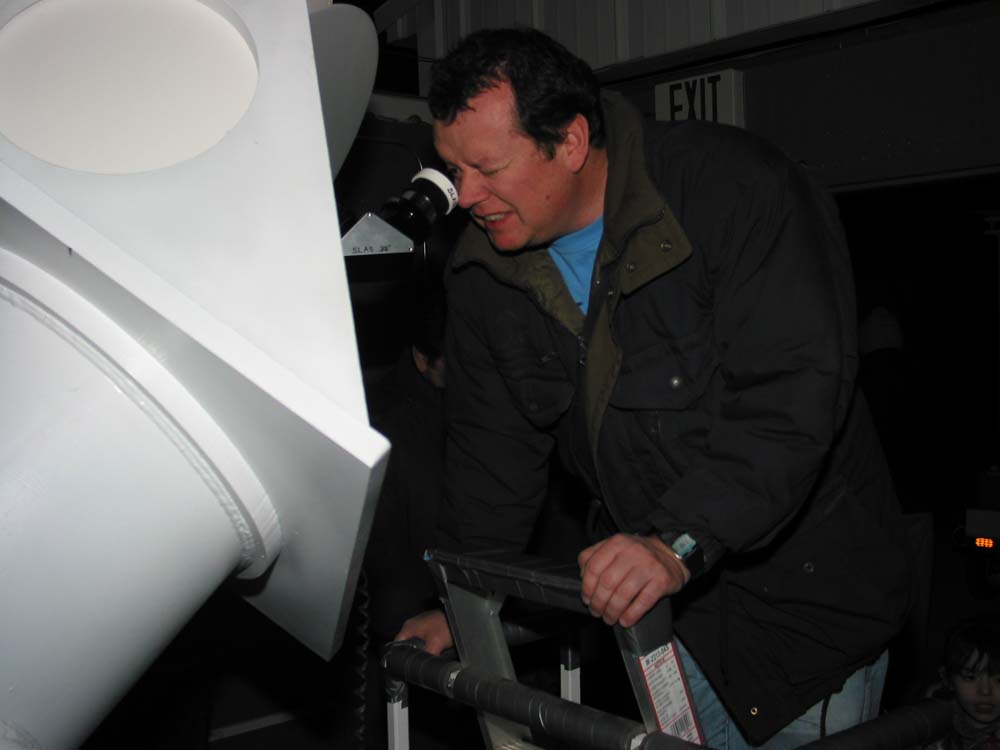

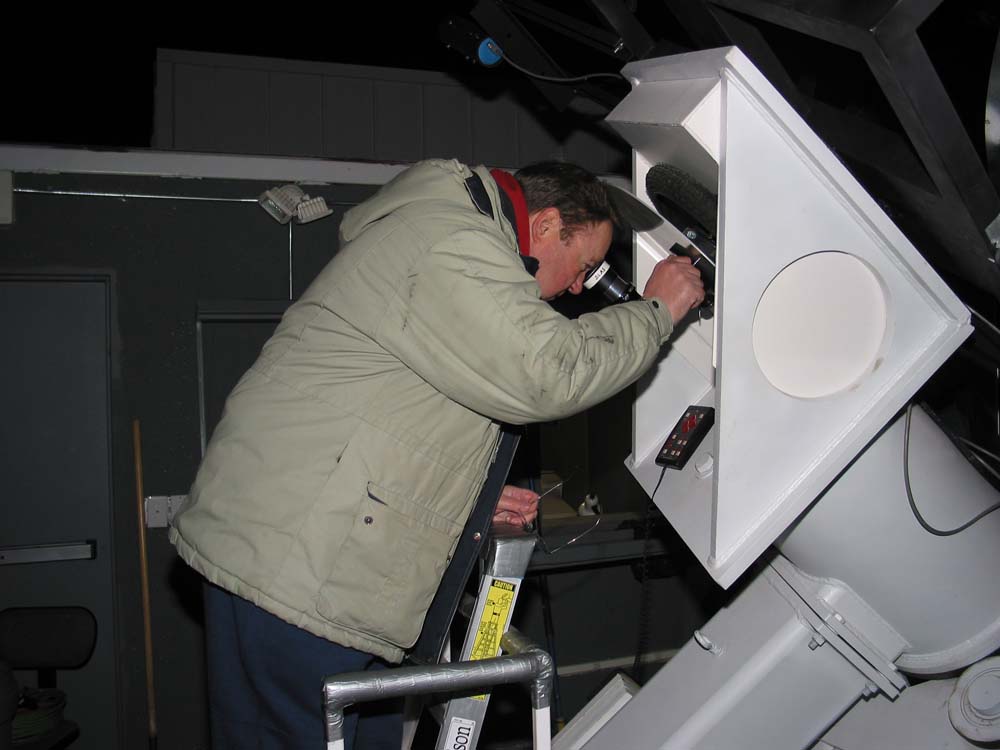

135                 136
***
Siegfried Jachmann.

137                 138
***
Chuck Hards.

139                 140
***
Guy Malmborg

141

Roger Butz

142

Alpine Stringham.

143

Patrick Wiggins

144

Andy Bogdan

145

Ken Harris

146

Steve Dodds

147

Cindy Dodds

148

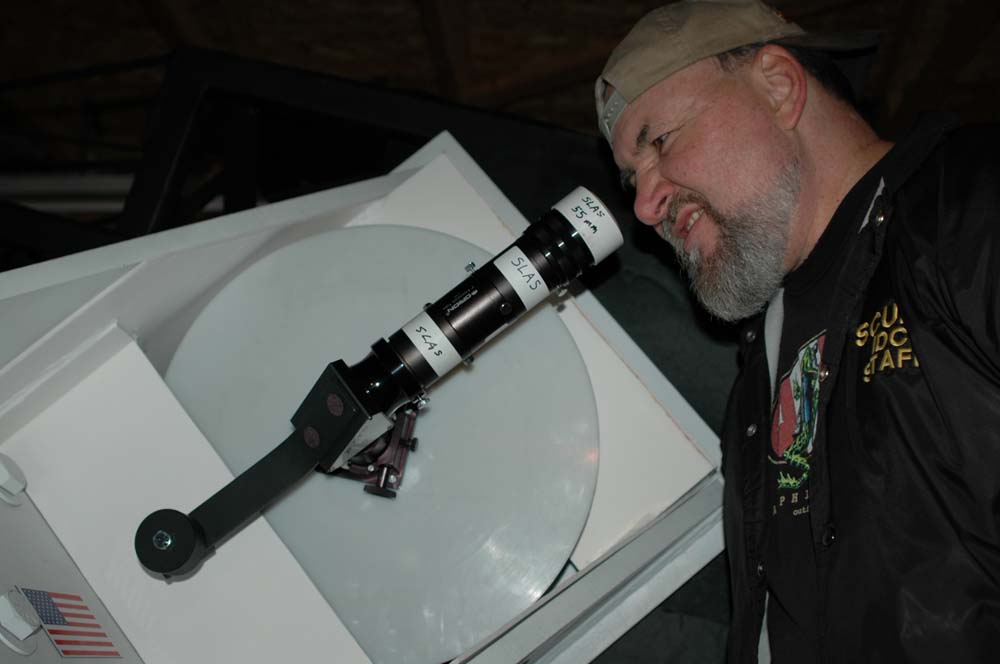

Guy Malmborg tries out the new eyepiece assembly (so long it requires a counterweight).  17 FEB 2005

149            150
***

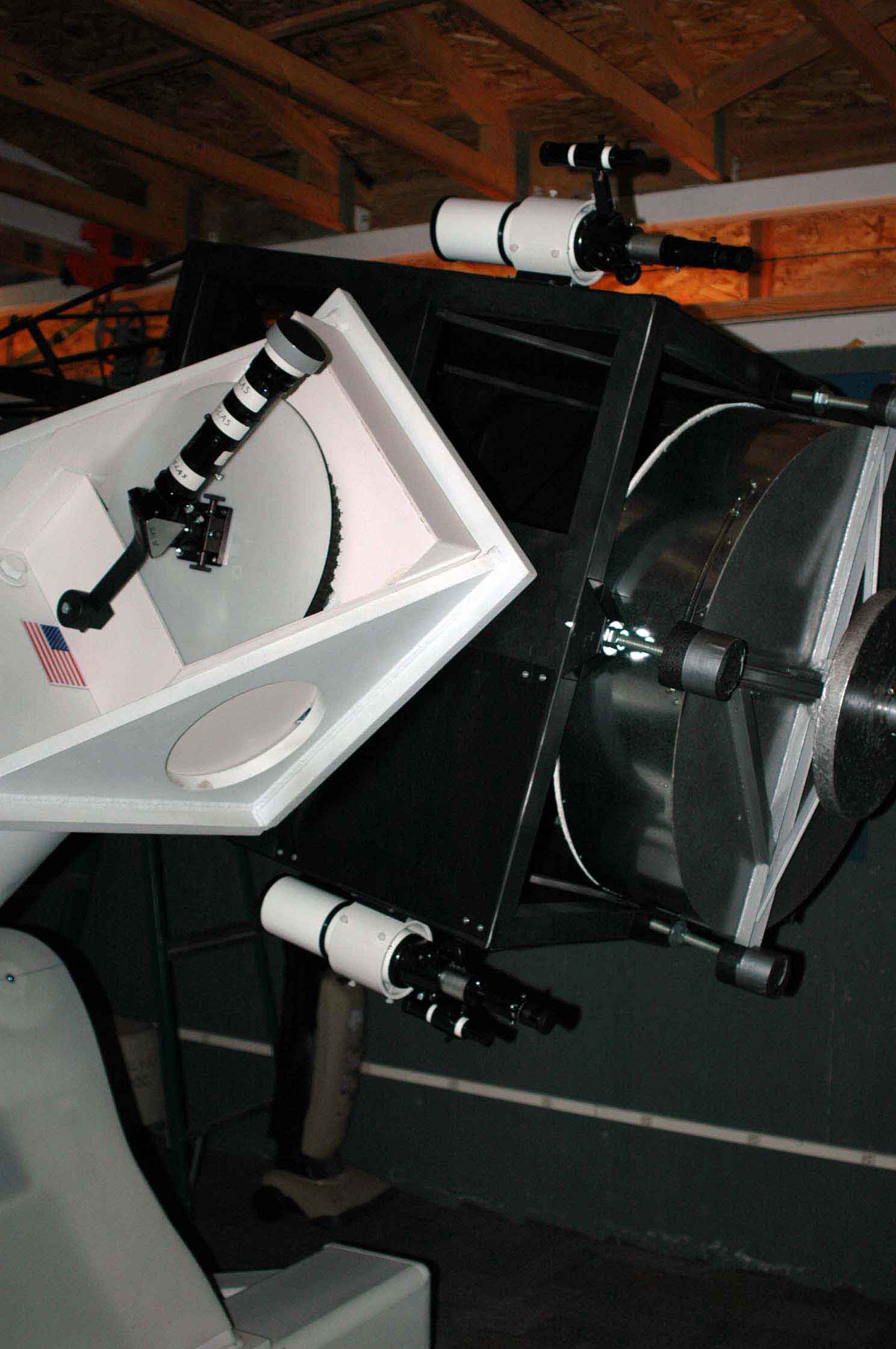

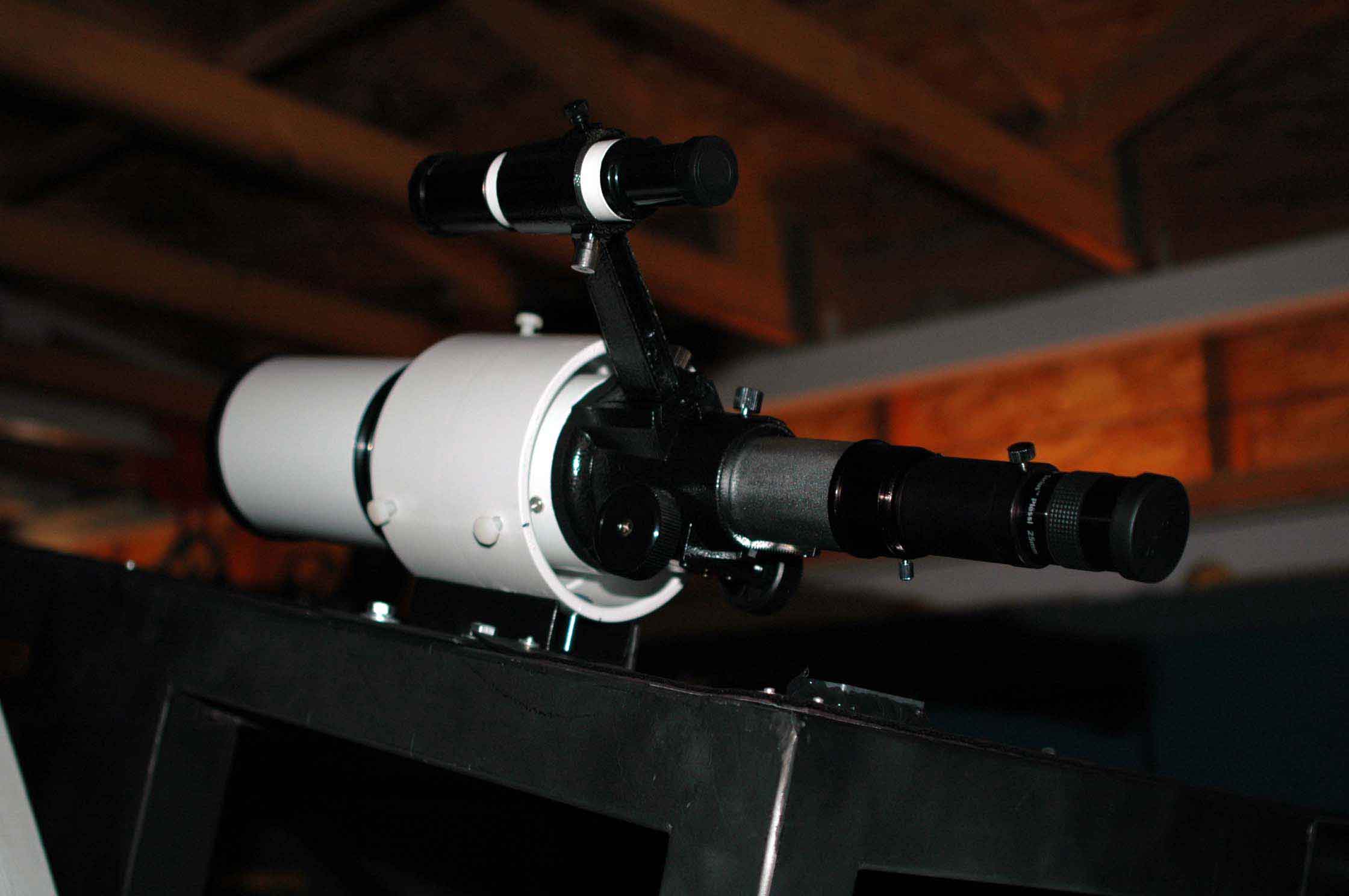

2 80mm short tube refractor focusers have been added.  Note Bruce Grim's PVC pipe finder holders.  04 MAR 2005
